NSN 5945-00-681-9716 MS24568D1, MS24568-D1, MS24568DL

Product Details | ELECTROMAGNETIC RELAY

5945-00-681-9716 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS24568D1, MS24568-D1, MS24568DL, MS24568-DL, N2562440561, N2562-44056-1, A41015924300, A410-159243-00, ASC1546650, F300 0T 015 7767, F3000T0157767, MILPRF6106, MIL-PRF-6106, MILR6106, MIL-R-6106, 110078D1, 110-078D1, 3971-99006, 4170600004, 4170600-004, 41706004, 4170600-4, 5M.4759.220.08, 5M475922008, 6416039, 706381 PIECE 76, 706381PIECE76, 901352C1, 974.02.39.301, 9740239301, 5945-00-681-9716, 00-681-9716, 5945006819716, 006819716, 397199006

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-681-9716	32512 ( RELAY, ELECTROMAGNETIC )

Drawings & Photos | NSN 5945-00-681-9716

Part Number	Request Date	QTY	Origin
5945-00-681-9716	2024-08-224	111	DIBBS
5945-00-681-9716	2023-12-340	113	DIBBS
5945-00-681-9716	2023-09-264	70	DIBBS
5945-00-681-9716	2023-08-222	45	DIBBS
5945-00-681-9716	2023-08-213	330	DIBBS
5945-00-681-9716	2023-07-183	43	DIBBS
5945-00-681-9716	2023-06-166	133	DIBBS
5945-00-681-9716	2023-02-59	133	DIBBS
5945-00-681-9716	2022-10-300	133	DIBBS
5945-00-681-9716	2022-08-233	55	DIBBS
5945-00-681-9716	2022-02-41	5	UK
5945-00-681-9716	2020-06-168	15	DIBBS
5945-00-681-9716	2020-05-141	27	DIBBS
5945-00-681-9716	2020-05-141	338	DIBBS
5945-00-681-9716	2020-04-107	27	DIBBS
5945-00-681-9716	2020-03-90	338	DIBBS
5945-00-681-9716	2020-02-54	91	DIBBS
5945-00-681-9716	2019-12-351	144	DIBBS
5945-00-681-9716	2019-09-259	1	DIBBS-RFPs
5945-00-681-9716	2019-09-255	68	DIBBS
110-078D1	2019-02-42	2	Lebanon
5945-00-681-9716	2019-02-41	2	Lebanon
5945-00-681-9716	2019-01-17	400	DIBBS
5945-00-681-9716	2019-01-08	5	US
5945-00-681-9716	2018-11-322	62	DIBBS
5945-00-681-9716	2018-11-309	18	Turkey
5945-00-681-9716	2018-08-239	1	DIBBS-RFPs
5945-00-681-9716	2018-05-141	18	Ukraine
MS24568D1	2017-03-79	2	United States
5945-00-681-9716	2017-02-39	1	Australia
5945-00-681-9716	2015-07-201	3	US
5945-00-681-9716	2015-01-03	3	Ukraine
5945-00-681-9716	2014-04-98	10	US
5945-00-681-9716	2013-08-240	163	DIBBS
MS24568-D1	2013-01-04	2	Indonesia
110-078D1	2012-11-306	1	China
5945-00-681-9716	2012-09-249	42	United States
MS24568D1	2012-07-213	1	US
MS24568D1	2012-05-138	18	United States
5945-00-681-9716	2011-02-55	28	US
5945-00-681-9716	2010-10-296	2	US
5945-00-681-9716	2010-04-98	1	Croatia
5945-00-681-9716	2010-02-44	50	Canada
901352C1	2009-01-06	10	US
5945-00-681-9716	2008-03-71	100	DIBBS
5945-00-681-9716	2008-02-52	100	DIBBS
5945-00-681-9716	2008-01-22	125	DIBBS
5945-00-681-9716	2007-06-176	25	DIBBS
MS24568D1	2006-03-89	2	US

Cross Reference | NSN 5945-00-681-9716

Part Number	Cage Code	Manufacturer
110-078D1	97499	BELL HELICOPTER TEXTRON INC.
3971-99006	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE
4170600-004	05869	RAYTHEON COMPANY DBA RAYTHEON
4170600-4	05869	RAYTHEON COMPANY DBA RAYTHEON
5M.4759.220.08	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
6416039	001JK	EMBRAER S/A
6416039	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
706381 PIECE 76	58475	WESTWOOD CORPORATION DBA NMP DIVISION
901352C1	55820	HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS
974.02.39.301	S4080	PILATUS AIRCRAFT LTD
9740239301	S4080	PILATUS AIRCRAFT LTD

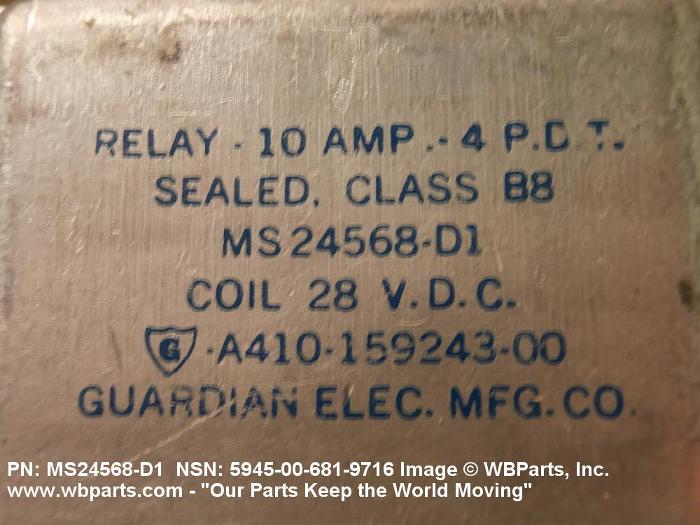

A410-159243-00	73949	GUARDIAN ELECTRIC MANUFACTURING CO.
ASC1546650	Z4779	ASC PTY LTD
MIL-PRF-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24568-D1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24568-DL	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
MS24568D1	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
N2562-44056-1	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-681-9716

Compare

Related Products | NSN 5945-00-681-9716

5945-00-681-9736, 5945-00-681-9785, 5945-00-681-9803, 5945-00-681-9805, 5945-00-681-9817

Technical Data | NSN 5945-00-681-9716

Characteristic	Specifications

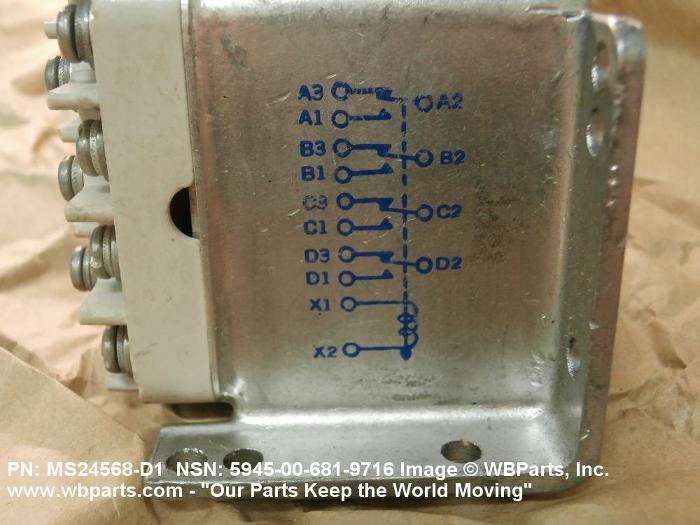

NONPILE-UP MAIN CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	15.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 10.0 AMPERES AC AND 10.0 AMPERES DC INDUCTIVE LOAD 3.0 AMPERES AC AND 3.0 AMPERES DC LAMP LOAD 6.0 AMPERES AC AND 6.0 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
NOMINAL OPERATING CURRENT RATING AND TYPE	500.0 MILLIAMPERES DC SINGLE WINDING

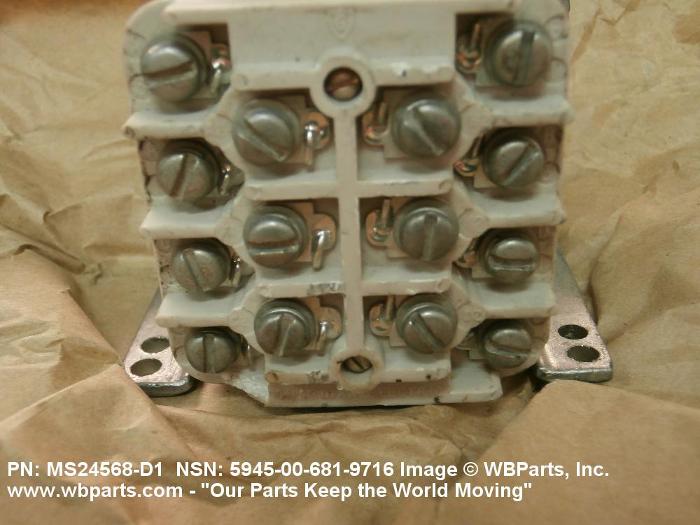

TERMINAL TYPE AND QUANTITY	14 SCREW ALL FUNCTIONS
TIME DELAY	0.025 SECONDS MAXIMUM FIXED OPERATE TIME 0.02 SECONDS MAXIMUM FIXED RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC
OVERALL LENGTH	3.000 INCHES MAXIMUM
OVERALL WIDTH	2.300 INCHES MAXIMUM
OVERALL HEIGHT	2.700 INCHES MAXIMUM

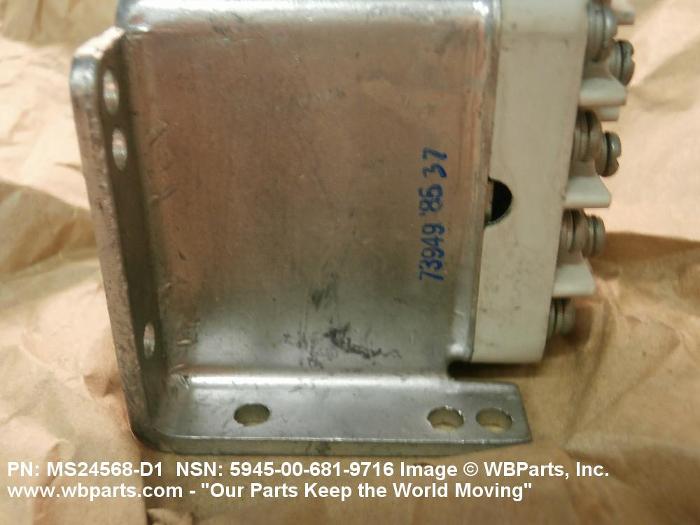

MOUNTING FACILITY TYPE AND QUANTITY	6 UNTHREADED HOLE FIRST MOUNTING FACILITY 6 UNTHREADED HOLE SECOND MOUNTING FACILITY
MOUNTING FACILITY PATTERN	RECTANGULAR FIRST MOUNTING FACILITY RECTANGULAR SECOND MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	2.625 INCHES NOMINAL FIRST MOUNTING FACILITY 2.625 INCHES NOMINAL SECOND MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	1.250 INCHES NOMINAL FIRST MOUNTING FACILITY 1.250 INCHES NOMINAL SECOND MOUNTING FACILITY
UNTHREADED MOUNTING HOLE DIAMETER	0.173 INCHES NOMINAL FIRST MOUNTING FACILITY 0.173 INCHES NOMINAL SECOND MOUNTING FACILITY
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS24568 GOVERNMENT STANDARD
III PURPOSE FOR WHICH DESIGNED	GENERAL
III CUBIC MEASURE	18.630 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	0.730 POUNDS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT	MIL-PRF-6106

Restrictions/Controls & Freight Information | NSN 5945-00-681-9716

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-681-9716

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	4	Communications Systems Agency and Satellite Communications
Weapons Systems/End Item or Homogeneous Group	4A	AN/FSC-78/GSC-39
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
