Product Details | ELECTRICAL SOLENOID
5945-00-621-0073 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: 26462, 5945-00-621-0073, 00-621-0073, 5945006210073, 006210073
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-621-0073 | 00310 ( SOLENOID, ELECTRICAL ) |
Drawings & Photos | NSN 5945-00-621-0073
Demand History | NSN 5945-00-621-0073
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-621-0073 | 2008-01-11 | 4 | DIBBS |
| 5945-00-621-0073 | 2007-03-72 | 2 | DIBBS |
Cross Reference | NSN 5945-00-621-0073
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26462 | 81873 | WOODWARD HRT, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-621-0073
Related Products | NSN 5945-00-621-0073
Technical Data | NSN 5945-00-621-0073
| Characteristic | Specifications |
|---|---|

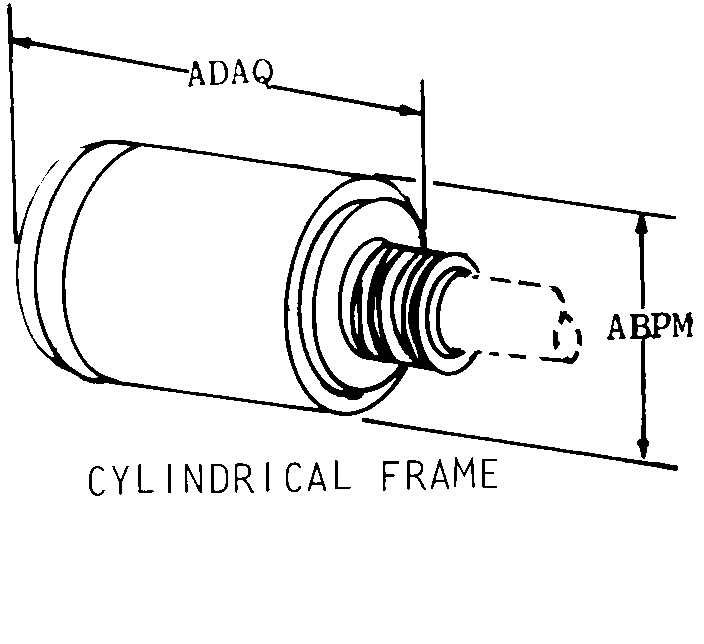

| BODY STYLE | 24 CYLINDRICAL FRAME |
| BODY DIAMETER | 1.500 INCHES NOMINAL |
| BODY LENGTH | 1.773 INCHES NOMINAL |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 30.0 DC MAXIMUM |
| CURRENT RATING | 750.0 MILLIAMPERES NOMINAL |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PUSH |
| LINEAR FORCE DELIVERED | 10.50 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 0.065 INCHES |
| POWER TAKEOFF CONNECTION TYPE | INTERNAL PLUNGER |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNF MOUNTING FACILITY BUSHING |
| NOMINAL THREAD SIZE | 0.750 INCHES MOUNTING FACILITY BUSHING |
| THREAD CLASS | 2A MOUNTING FACILITY BUSHING |
| THREAD QUANTITY PER INCH | 16 MOUNTING FACILITY BUSHING |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LOCATION | END OPPOSITE ACTUATOR |
| INCLOSURE TYPE | FULLY INCLOSED |
| CASE MATERIAL | STEEL |
| CASE SURFACE TREATMENT | CADMIUM |
| III MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT |
