NSN 5945-00-552-3915 ASD3462, ASD346-2, SD3462
Product Details | ELECTRICAL SOLENOID
5945-00-552-3915 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: ASD3462, ASD346-2, SD3462, SD346-2, E31400, E-31400, PS956282, PS95628-2, 13203, 3102102, 310210-2, 956282, 95628-2, 5945-00-552-3915, 00-552-3915, 5945005523915, 005523915
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-552-3915 | 00310 ( SOLENOID, ELECTRICAL ) |

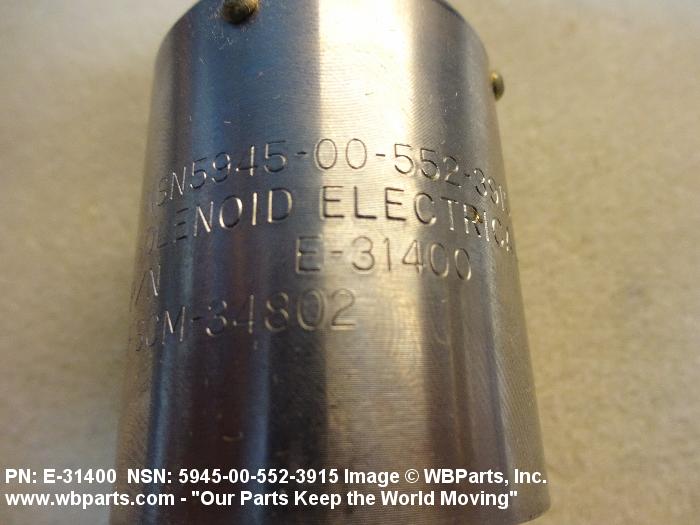

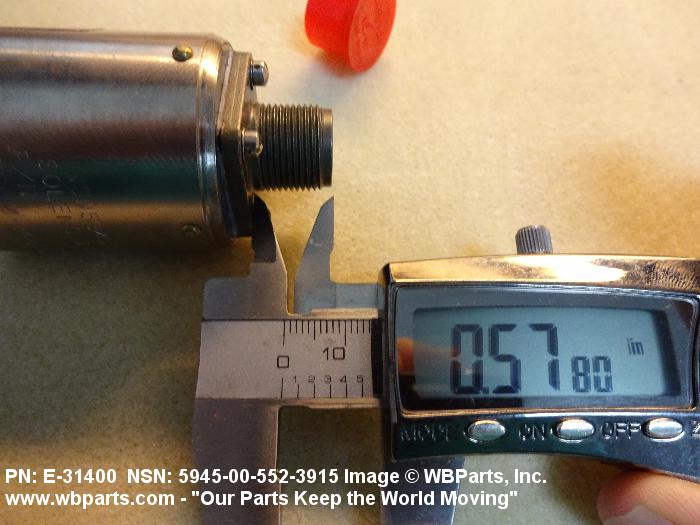

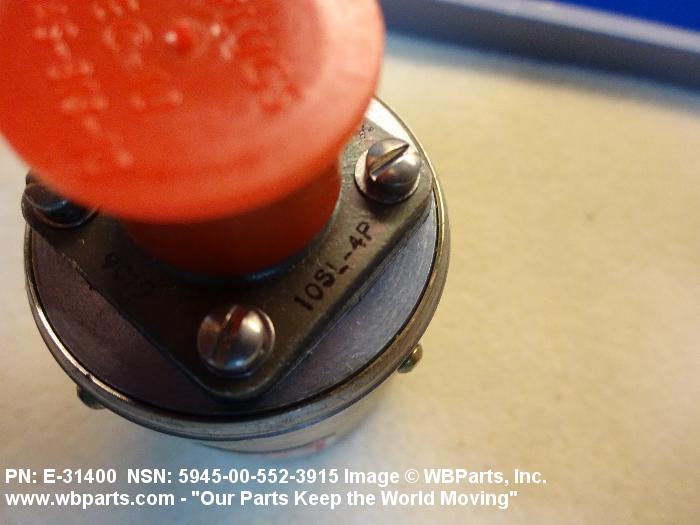

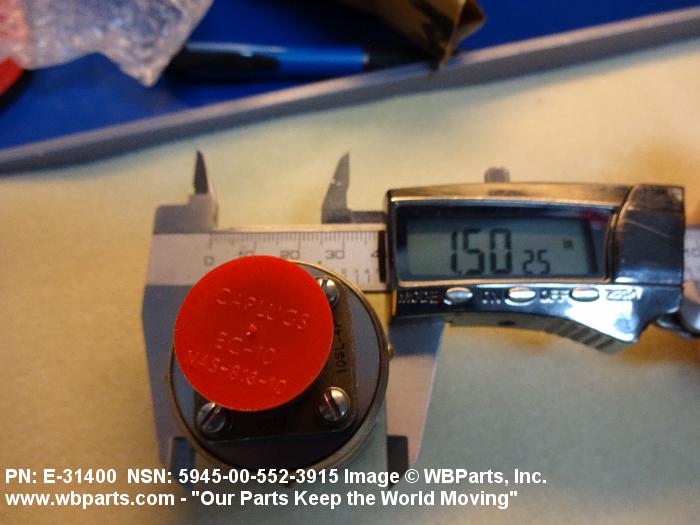

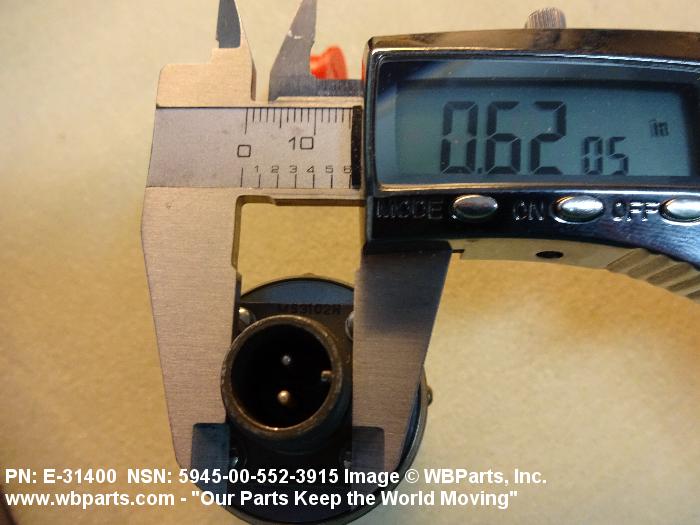

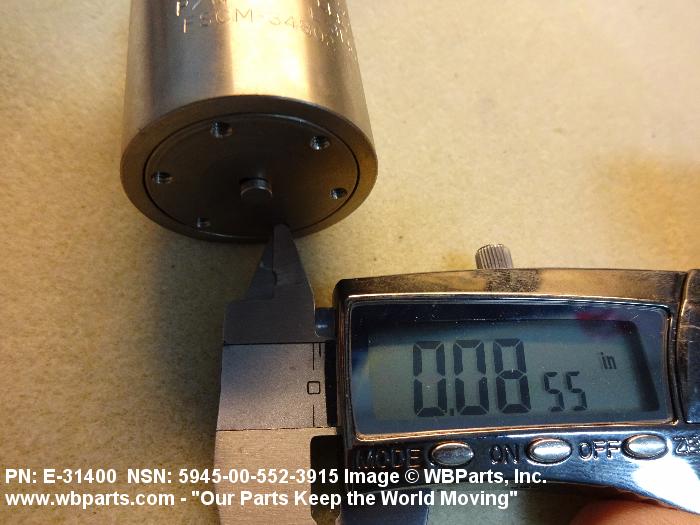

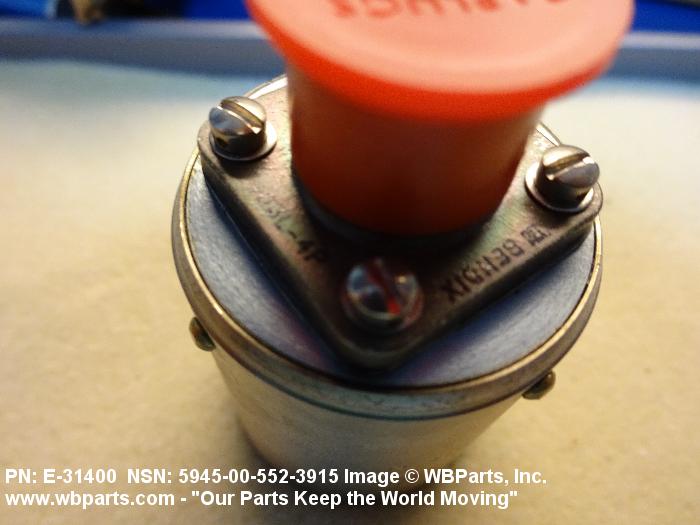

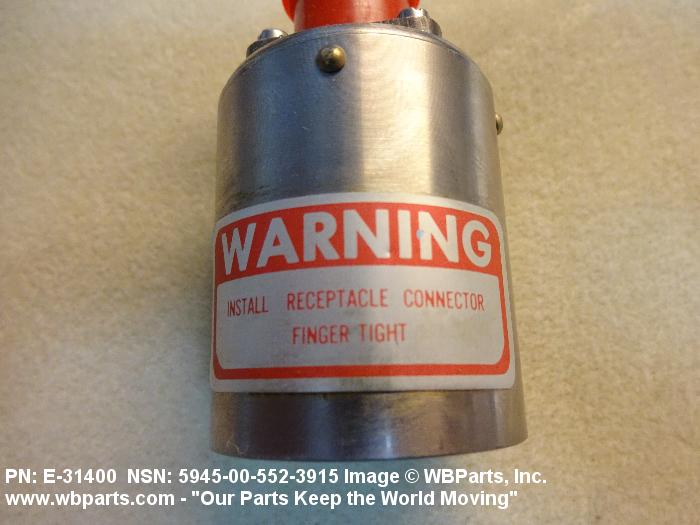

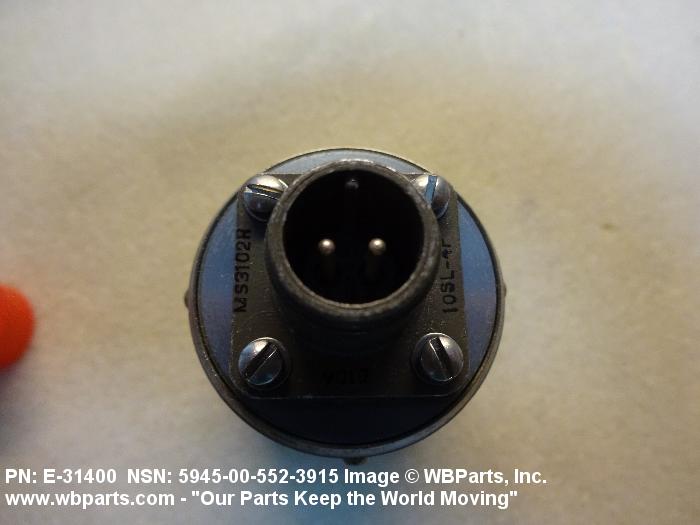

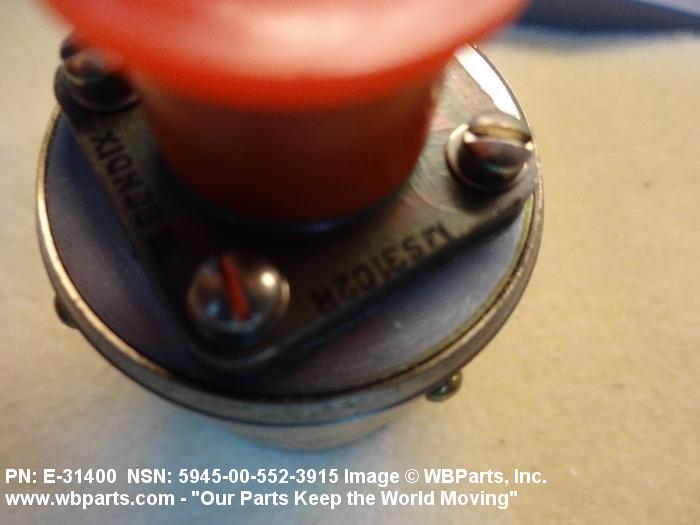

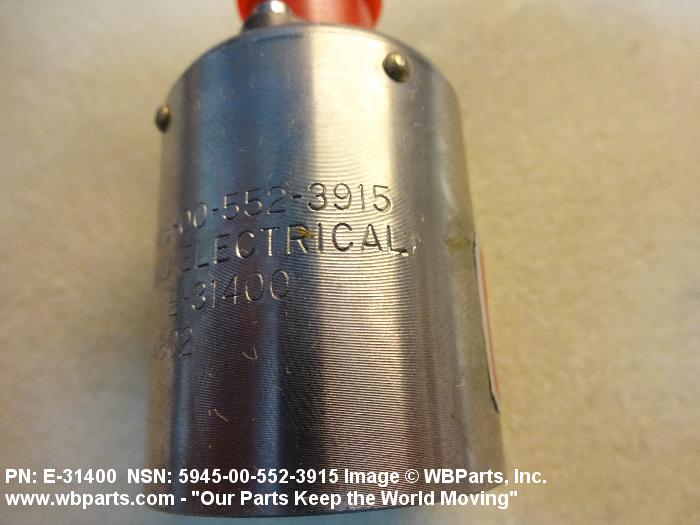

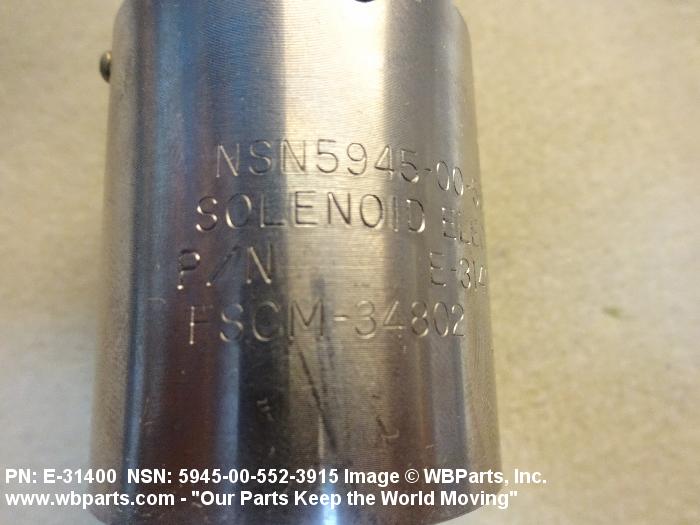

Drawings & Photos | NSN 5945-00-552-3915
Demand History | NSN 5945-00-552-3915
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-552-3915 | 2022-11-319 | 1 | US |
| 5945-00-552-3915 | 2019-07-212 | 3 | US |
| 5945-00-552-3915 | 2018-02-58 | 3 | United States |
| 13203 | 2017-11-324 | 1 | US |
| 5945-00-552-3915 | 2017-04-100 | 1 | Brazil |
| 5945-00-552-3915 | 2017-04-97 | 1 | Brazil |
Cross Reference | NSN 5945-00-552-3915
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13203 | 09790 | EATON AEROSPACE LLC DBA STERER ENGINEERING DIV VALVE & |
| 310210-2 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 95628-2 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 95628-2 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 95628-2 | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 95628-2 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| ASD346-2 | 04320 | CURTISS-WRIGHT CONTROLS INTEGRATED SENSING, INC. |
| ASD346-2 | 99743 | IMC MAGNETICS CORP WESTERN DIV |
| E-31400 | 34802 | ELECTROMOTIVE INC |
| PS95628-2 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| SD346-2 | 04320 | CURTISS-WRIGHT CONTROLS INTEGRATED SENSING, INC. |
| SD346-2 | 99743 | IMC MAGNETICS CORP WESTERN DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-552-3915
Related Products | NSN 5945-00-552-3915
Technical Data | NSN 5945-00-552-3915
| Characteristic | Specifications |
|---|---|

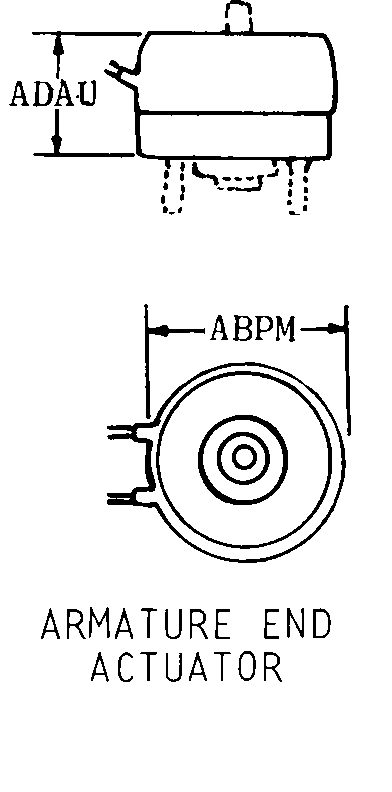

| BODY STYLE | 15 ARMATURE END ACTUATOR |
| BODY DIAMETER | 1.500 INCHES MAXIMUM |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 30.0 DC MAXIMUM |
| CURRENT RATING | 375.0 MILLIAMPERES NOMINAL |
| ELECTRICAL RESISTANCE | 80.00 OHMS NOMINAL |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PULL AND PUSH |
| LINEAR FORCE DELIVERED | 1.50 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 0.030 INCHES |
| POWER TAKEOFF CONNECTION TYPE | NOTCHED |
| ACTUATOR DIAMETER | 0.180 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 THREADED HOLE |
| BOLT CIRCLE DIAMETER | 0.914 INCHES MINIMUM AND 0.936 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC MOUNTING FACILITY HOLE |
| NOMINAL THREAD SIZE | 0.112 INCHES MOUNTING FACILITY HOLE |
| THREAD CLASS | 2B MOUNTING FACILITY HOLE |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE |
| TERMINAL LOCATION | END OPPOSITE ACTUATOR |
| INCLOSURE TYPE | FULLY INCLOSED |
| CASE MATERIAL | STEEL |
| CASE SURFACE TREATMENT | NICKEL |
| ENVIRONMENTAL PROTECTION | EXPLOSION PROOF AND WEATHERPROOF |
| III MAXIMUM OPERATING TEMP | 70.0 DEG FAHRENHEIT |
| III CONNECTOR MANUFACTURER CODE | 95766 |
| III CONNECTOR MANUFACTURER PART NUMBER | 10066-1036-4P |
| MANUFACTURERS CODE | 59364 |
| DESIGN CONTROL REFERENCE | 95628-2 |
