NSN 5945-00-484-7738 14231633, 1423163-3, 231B244AD47
Product Details | ELECTROMAGNETIC RELAY
5945-00-484-7738 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: 14231633, 1423163-3, 231B244AD47, 231B244AF57, 231B244AFP57, 231V244AFP57, 7012ABXKB, 7012ABX-KB, 7022L10HN, 5945-00-484-7738, 00-484-7738, 5945004847738, 004847738
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 SEP 1970 | 00-484-7738 | 32512 ( RELAY, ELECTROMAGNETIC ) |

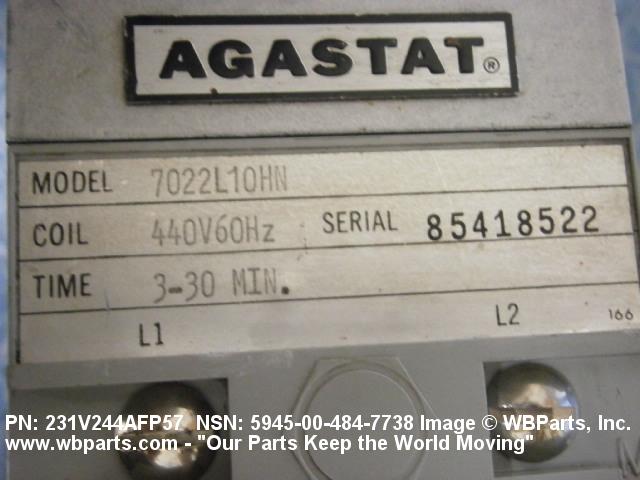

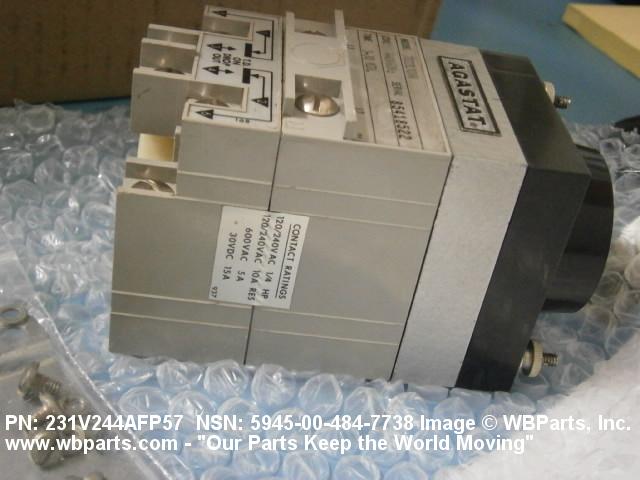

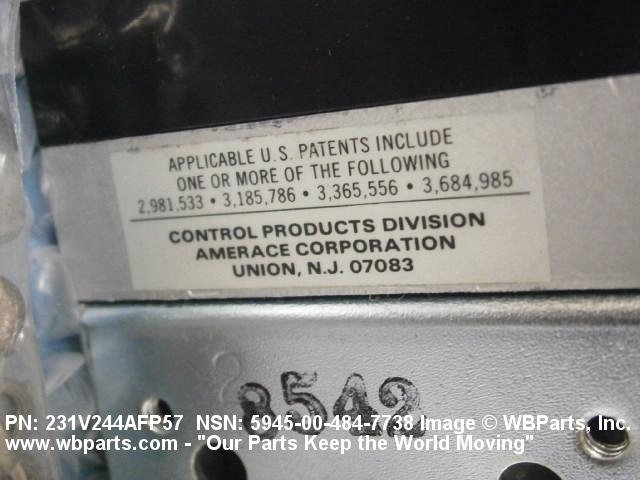

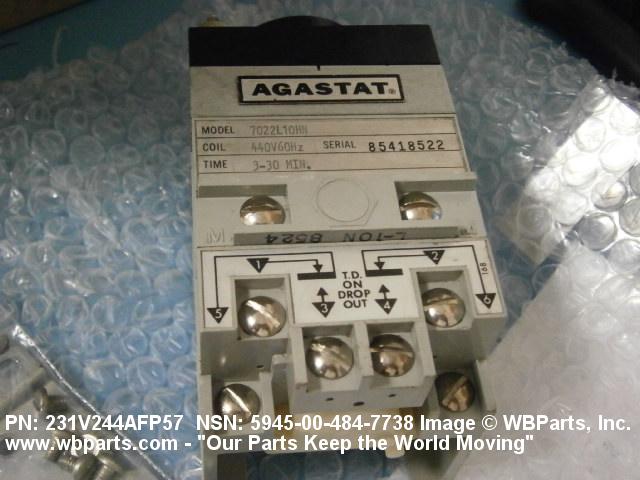

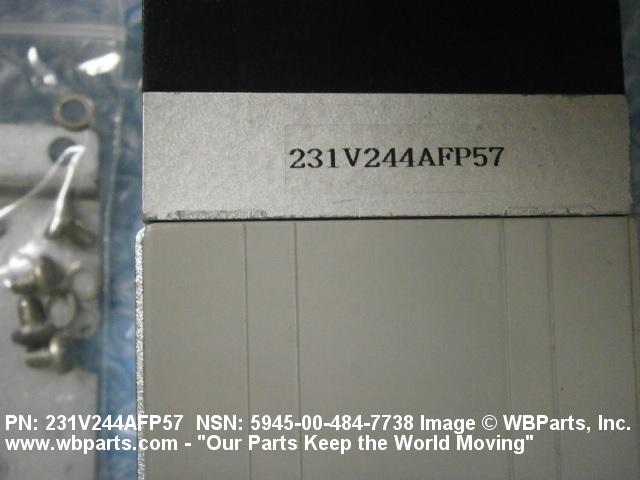

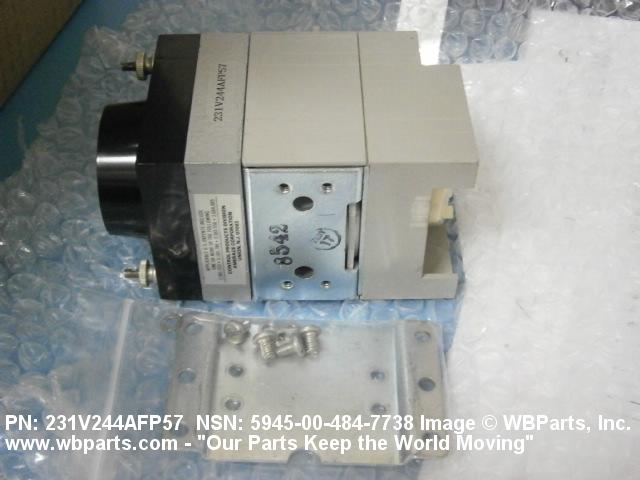

Drawings & Photos | NSN 5945-00-484-7738
Demand History | NSN 5945-00-484-7738
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1423163-3 | 2023-10-285 | 10 | DIBBS |
| 231B244AFP57 | 2023-10-285 | 10 | DIBBS |
| 231V244AFP57 | 2023-10-285 | 10 | DIBBS |
| 1423163-3 | 2023-07-194 | 6 | DIBBS |
| 231B244AFP57 | 2023-07-194 | 6 | DIBBS |
| 231V244AFP57 | 2023-07-194 | 6 | DIBBS |
| 1423163-3 | 2023-04-96 | 21 | DIBBS |
| 231B244AFP57 | 2023-04-96 | 21 | DIBBS |
| 231V244AFP57 | 2023-04-96 | 21 | DIBBS |
| 1423163-3 | 2023-03-61 | 9 | DIBBS |
| 231B244AFP57 | 2023-03-61 | 9 | DIBBS |
| 231V244AFP57 | 2023-03-61 | 9 | DIBBS |
| 1423163-3 | 2023-02-45 | 9 | DIBBS |
| 231B244AFP57 | 2023-02-45 | 9 | DIBBS |
| 231V244AFP57 | 2023-02-45 | 9 | DIBBS |
| 1423163-3 | 2022-02-47 | 14 | DIBBS |
| 231B244AFP57 | 2022-02-47 | 14 | DIBBS |
| 231V244AFP57 | 2022-02-47 | 14 | DIBBS |
| 1423163-3 | 2022-02-32 | 14 | DIBBS |
| 231B244AFP57 | 2022-02-32 | 14 | DIBBS |
| 231V244AFP57 | 2022-02-32 | 14 | DIBBS |
| 5945-00-484-7738 | 2021-11-308 | 1 | Taiwan |
| 1423163-3 | 2021-02-46 | 10 | DIBBS |
| 231B244AFP57 | 2021-02-46 | 10 | DIBBS |
| 231V244AFP57 | 2021-02-46 | 10 | DIBBS |
| 1423163-3 | 2020-03-61 | 29 | DIBBS |
| 231B244AFP57 | 2020-03-61 | 29 | DIBBS |
| 231V244AFP57 | 2020-03-61 | 29 | DIBBS |
| 5945-00-484-7738 | 2017-11-306 | 23 | DIBBS |
| 5945-00-484-7738 | 2016-01-03 | 39 | DIBBS |
| 5945-00-484-7738 | 2015-07-186 | 21 | DIBBS |
| 5945-00-484-7738 | 2013-09-252 | 23 | DIBBS |
| 5945-00-484-7738 | 2013-09-251 | 23 | DIBBS |
| 5945-00-484-7738 | 2013-01-07 | 16 | DIBBS |
| 5945-00-484-7738 | 2012-10-278 | 16 | DIBBS |
| 5945-00-484-7738 | 2012-06-181 | 15 | DIBBS |
| 5945-00-484-7738 | 2011-12-336 | 1 | Taiwan |
| 5945-00-484-7738 | 2011-10-297 | 7 | DIBBS |
| 5945-00-484-7738 | 2011-04-111 | 24 | US |
| 5945-00-484-7738 | 2009-10-302 | 13 | DIBBS |
| 5945-00-484-7738 | 2009-09-244 | 49 | DIBBS |
| 5945-00-484-7738 | 2009-04-104 | 10 | DIBBS |
| 5945-00-484-7738 | 2009-01-06 | 32 | DIBBS |
| 5945-00-484-7738 | 2008-11-317 | 10 | DIBBS |
| 5945-00-484-7738 | 2008-04-94 | 15 | DIBBS |
| 5945-00-484-7738 | 2007-09-267 | 12 | DIBBS |
| 5945-00-484-7738 | 2007-05-134 | 13 | DIBBS |
Cross Reference | NSN 5945-00-484-7738
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1423163-3 | 00779 | TYCO ELECTRONICS CORPORATION |
| 231B244AD47 | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| 231B244AF57 | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| 231B244AFP57 | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| 231V244AFP57 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| 7012ABX-KB | 11666 | AMERICAN INSTRUMENT CO |
| 7022L10HN | 89020 | TYCO ELECTRONICS/AGASTAT RELAYS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-484-7738
Related Products | NSN 5945-00-484-7738
Technical Data | NSN 5945-00-484-7738
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 240.0 AC AND 30.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.0 AMPERES AC AND 15.0 AMPERES DC RESISTIVE LOAD |
| ARC QUENCHING METHOD | AIR |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 440.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING |
| ENERGIZING ELEMENT POWER RATING | 8.0 WATTS |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| TERMINAL TYPE AND QUANTITY | 8 SCREW ALL FUNCTIONS |
| TIME DELAY | 3.00 MINUTES MINIMUM AND 30.00 MINUTES MAXIMUM ADJUSTABLE RELEASE TIME |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | DUSTPROOF |
| OVERALL LENGTH | 3.250 INCHES MAXIMUM |
| OVERALL WIDTH | 3.090 INCHES MAXIMUM |
| OVERALL HEIGHT | 4.520 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE FIRST MOUNTING FACILITY 4 THREADED HOLE SECOND MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | RECTANGULAR FIRST MOUNTING FACILITY RECTANGULAR SECOND MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.880 INCHES NOMINAL FIRST MOUNTING FACILITY 1.750 INCHES NOMINAL SECOND MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.750 INCHES MINIMUM AND 1.500 INCHES MAXIMUM FIRST MOUNTING FACILITY 0.500 INCHES NOMINAL SECOND MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.199 INCHES NOMINAL FIRST MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNC SECOND MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.164 INCHES SECOND MOUNTING FACILITY |
| THREAD CLASS | 2B SECOND MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 32 SECOND MOUNTING FACILITY |
| THREAD DIRECTION | RIGHT-HAND SECOND MOUNTING FACILITY |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III CUBIC MEASURE | 45.392 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 2.200 POUNDS |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III CASE MATERIAL | PLASTIC |
Restrictions/Controls & Freight Information | NSN 5945-00-484-7738
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-484-7738
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
