Product Details | ELECTRICAL SOLENOID
5945-00-475-7662 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: 5462767003, 546-2767-003, 5945-00-475-7662, 00-475-7662, 5945004757662, 004757662
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-475-7662 | 00310 ( SOLENOID, ELECTRICAL ) |
Drawings & Photos | NSN 5945-00-475-7662
Cross Reference | NSN 5945-00-475-7662
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 546-2767-003 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-475-7662
Technical Data | NSN 5945-00-475-7662
| Characteristic | Specifications |
|---|---|

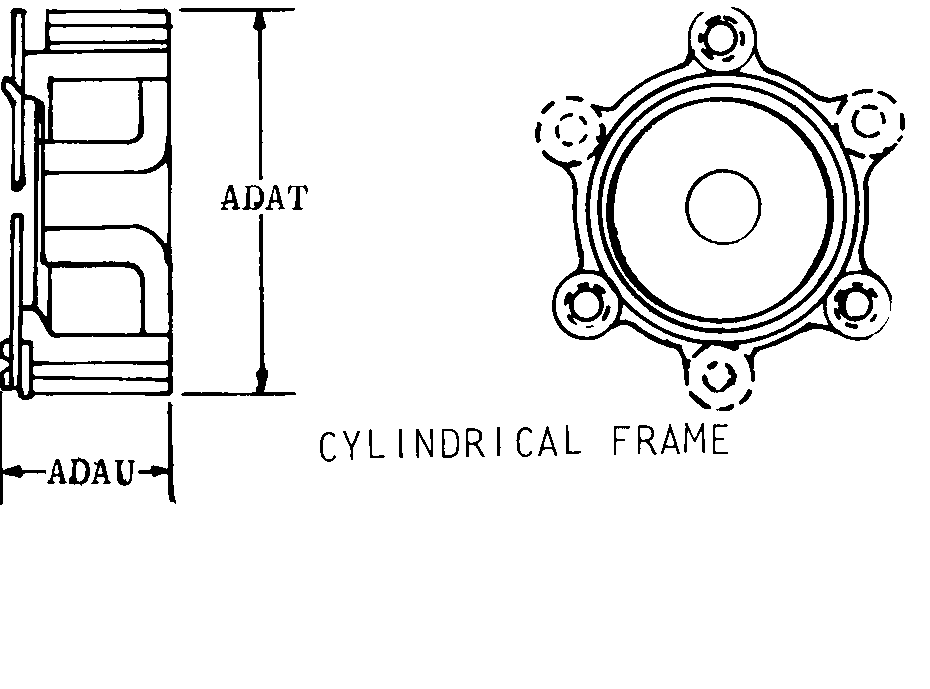

| BODY STYLE | 63 CYLINDRICAL FRAME |
| BODY WIDTH | 0.500 INCHES NOMINAL |
| BODY HEIGHT | 1.000 INCHES NOMINAL |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 26.5 DC MAXIMUM |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PULL AND PUSH |
| LINEAR FORCE DELIVERED | 2.11 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 0.050 INCHES |
| POWER TAKEOFF CONNECTION TYPE | PLAIN |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 TERMINAL |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| TERMINAL LOCATION | BASE EDGE |
| INCLOSURE TYPE | FULLY INCLOSED |
| III MAXIMUM OPERATING TEMP | 100.0 DEG CELSIUS |
