NSN 5945-00-435-1833 MS5757/23-003, MS575723003, M575/23-003

Product Details | ELECTROMAGNETIC RELAY

5945-00-435-1833 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS5757/23-003, MS575723003, M575/23-003, M57523003, M5757/23-003, M575723003, NS5757/23-003, NS575723003, B07D634BC20051, B07D634BC2-0051, MIL-R-5757/23, MILR575723, MILR575723003, MILR5757-23-003, 04306-3001, 2T29113, 2T-2911-3, 3071206, 307-1206, 59454351833 , 69546, 69-546, 5945-00-435-1833, 00-435-1833, 5945004351833, 043063001, 004351833

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	19 MAR 1969	00-435-1833	32512 ( RELAY, ELECTROMAGNETIC )

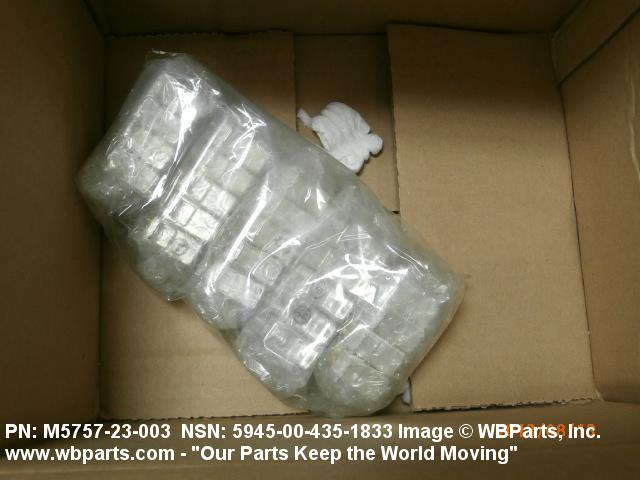

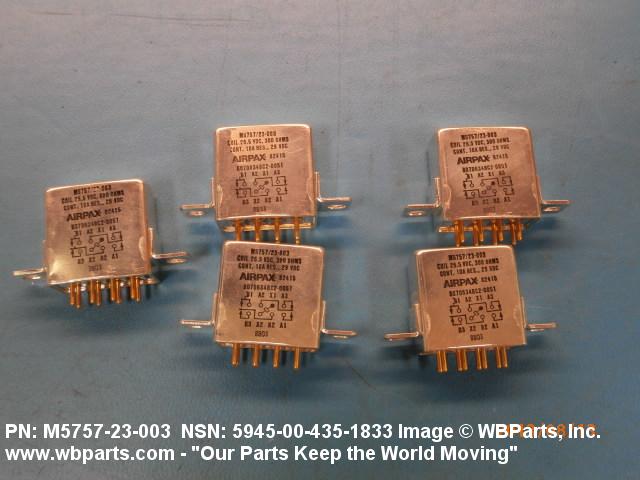

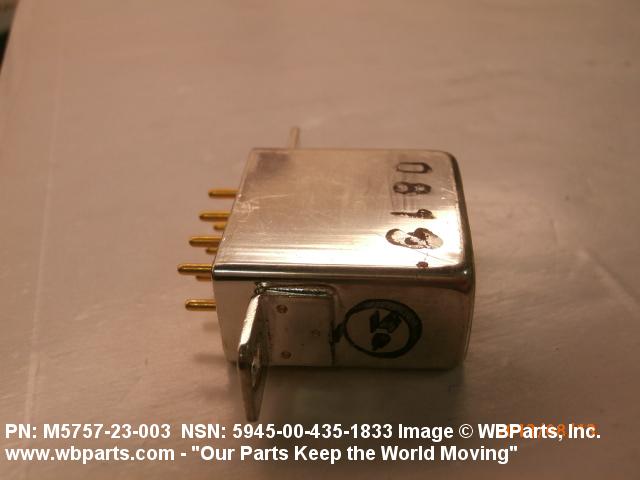

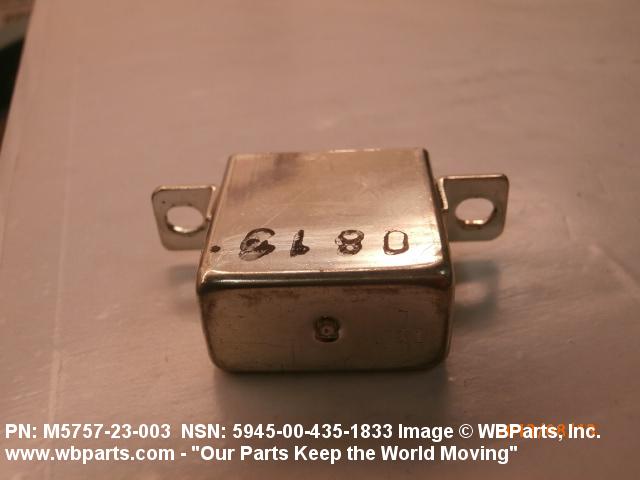

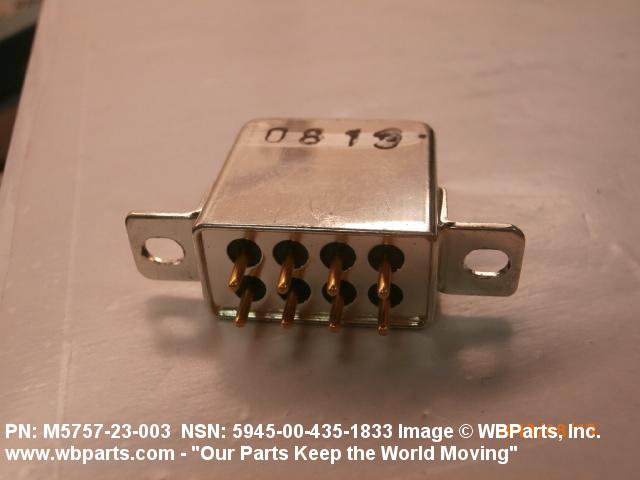

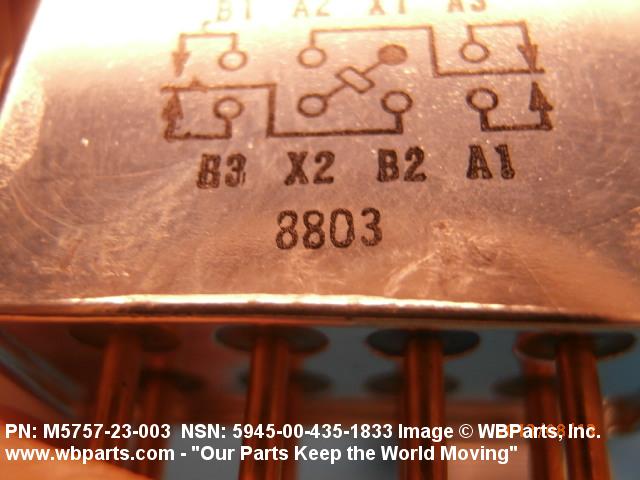

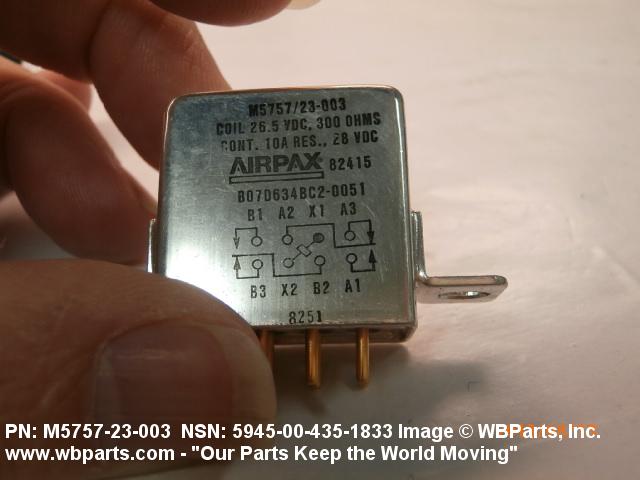

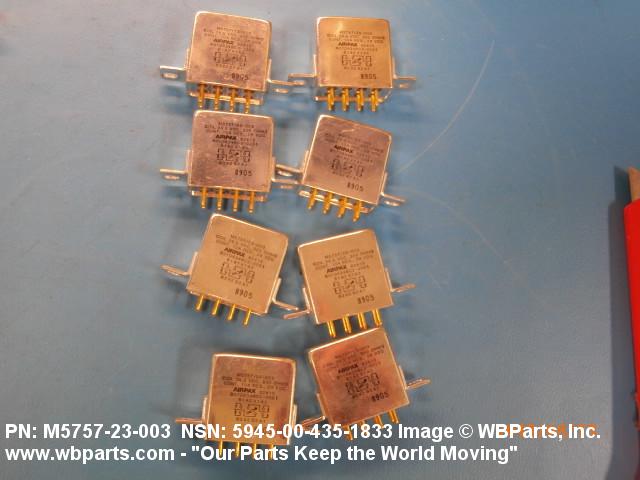

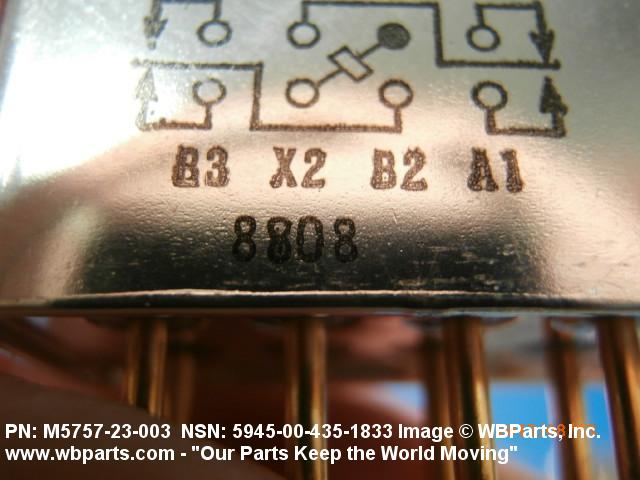

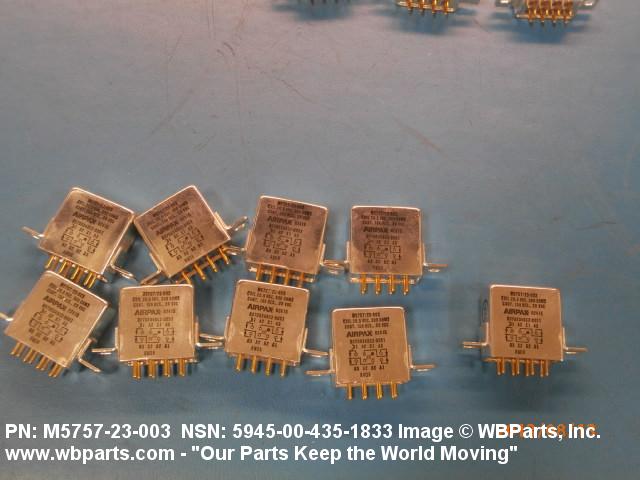

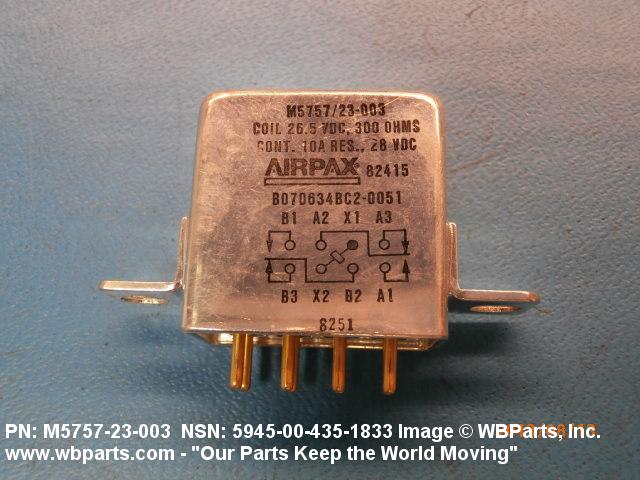

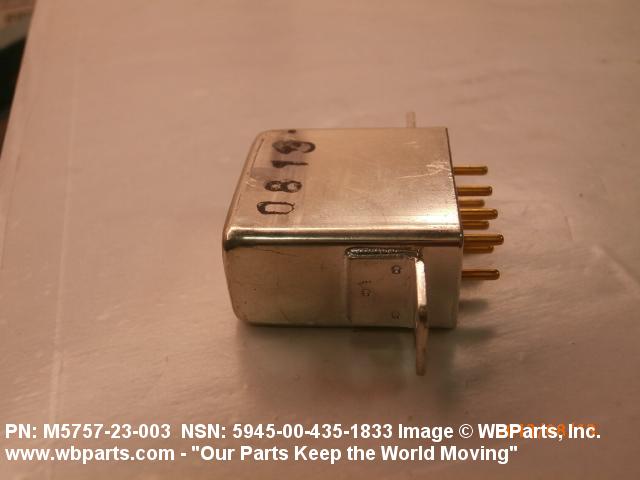

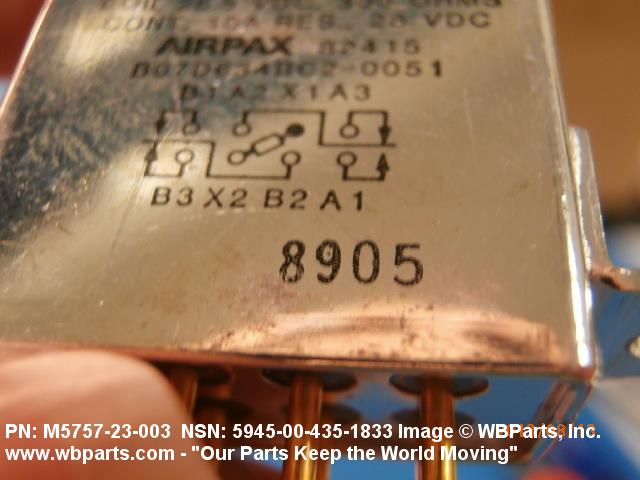

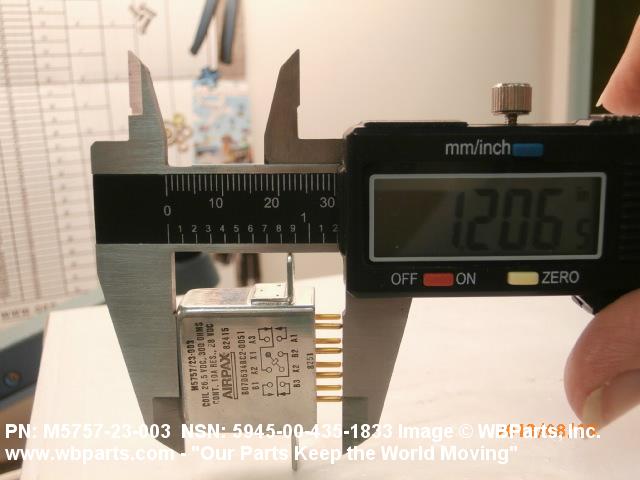

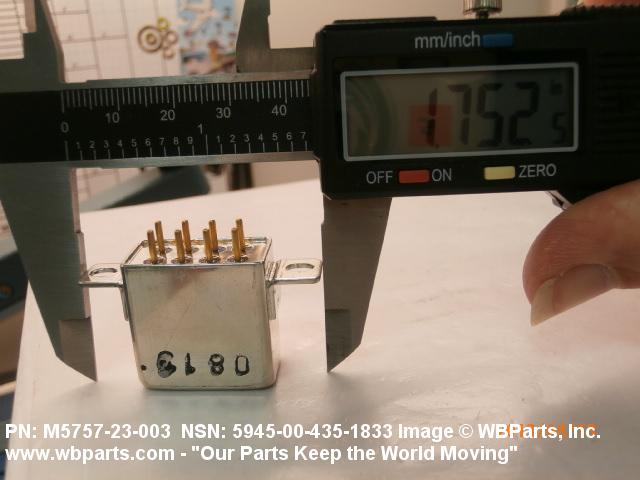

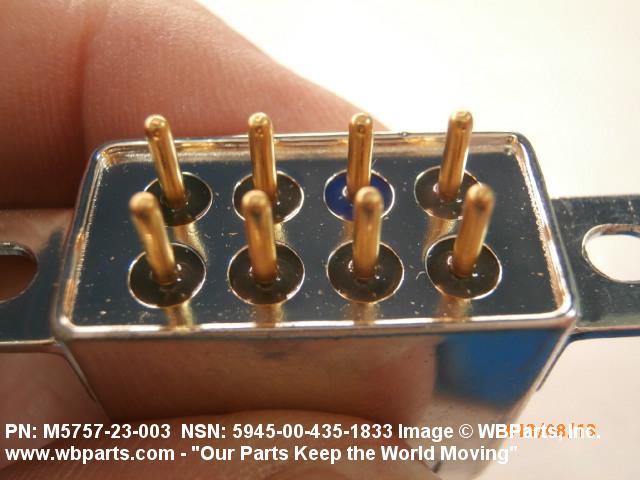

Drawings & Photos | NSN 5945-00-435-1833

Part Number	Request Date	QTY	Origin
5945-00-435-1833	2018-05-134	3	US
5945-00-435-1833	2017-03-87	2	MX
M575723003	2014-07-209	1	US
5945-00-435-1833	2014-07-197	25	US
2T29113	2014-05-135	1	US
5945-00-435-1833	2013-09-249	2	US
5945-00-435-1833	2013-08-213	20	United States
5945-00-435-1833	2013-01-30	10	United States
M575723003	2013-01-25	1	US
M575723003	2011-12-335	100	US
5945-00-435-1833	2011-03-68	93	MANUAL
M575723003	2011-02-48	50	Korea
5945-00-435-1833	2010-09-267	45	US
MS575723003	2008-04-92	50	United States
5945-00-435-1833	2007-11-310	1	US
M575723003	2007-10-285	100	United States
MS575723003	2007-08-242	22	US
5945-00-435-1833	2007-06-176	25	DIBBS
M575723003	2006-05-151	18	us

Cross Reference | NSN 5945-00-435-1833

Part Number	Cage Code	Manufacturer
04306-3001	93568	HARSCO CORP BMY-COMBAT SYSTEMS DIV
2T-2911-3	02289	HI-G CO INC SUB OF NYTRONICS INC
307-1206	44940	CUMMINS POWER GENERATION INC.
59454351833	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
69-546	30554	DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER
B07D634BC2-0051	00779	TYCO ELECTRONICS CORPORATION
B07D634BC2-0051	58614	TYCO ELECTRONICS CORPORATION DBA CII TECHNOLOGIES
B07D634BC2-0051	82415	AIRPAX CORP LLC
M575/23-003	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M5757/23-003	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M5757/23-003	93742	ENGINEERED ELECTRIC COMPANY DBA DRS FERMONT
MIL-R-5757/23	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILR5757-23-003	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS5757/23-003	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NS5757/23-003	02289	HI-G CO INC SUB OF NYTRONICS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-00-435-1833

Compare

Related Products | NSN 5945-00-435-1833

5945-00-435-1876, 5945-00-435-1907, 5945-00-435-1910, 5945-00-435-2486, 5945-00-435-2633

Technical Data | NSN 5945-00-435-1833

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.0 AMPERES AC AND 6.0 AMPERES DC RESISTIVE LOAD
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	250.0 OHMS NOMINAL SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	26.5 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
TERMINAL TYPE AND QUANTITY	8 PIN ALL FUNCTIONS
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC

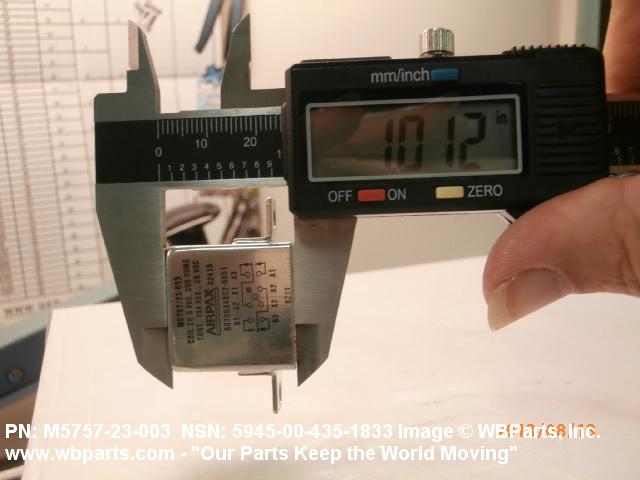

OVERALL LENGTH	1.750 INCHES NOMINAL
OVERALL WIDTH	1.720 INCHES NOMINAL

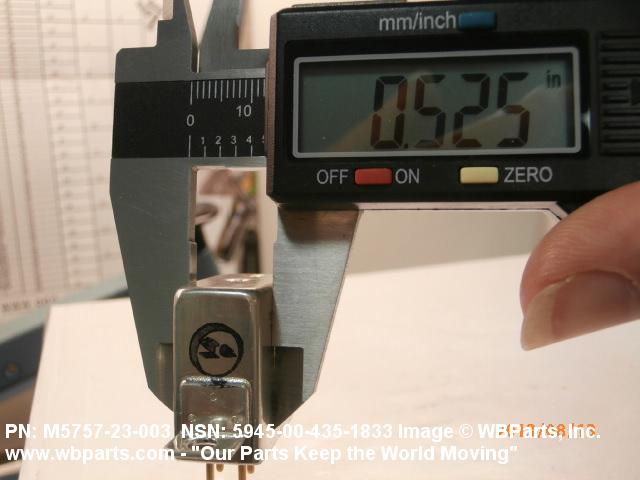

OVERALL HEIGHT	0.620 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY	2 SLOTTED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	IN-LINE SINGLE MOUNTING FACILITY

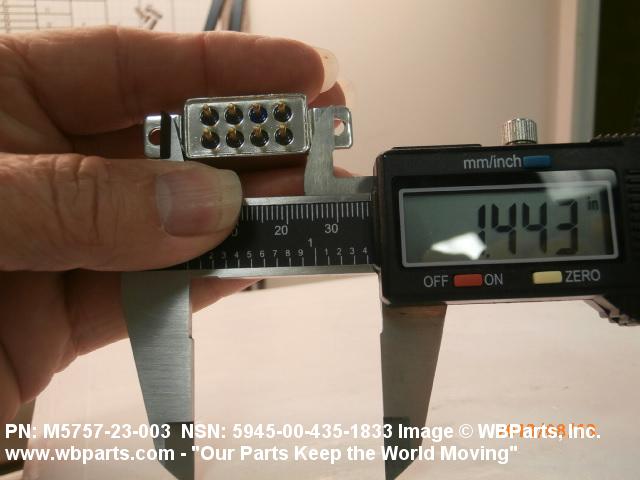

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.437 INCHES NOMINAL SINGLE MOUNTING FACILITY
MOUNTING SLOT WIDTH	0.188 INCHES NOMINAL SINGLE MOUNTING FACILITY
TEST DATA DOCUMENT	81349-MIL-R-5757 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-M5757/23-003 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-R-5757/23
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M5757/23-003

Restrictions/Controls & Freight Information | NSN 5945-00-435-1833

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-435-1833

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
