Product Details | ELECTRICAL SOLENOID
5945-00-425-6964 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: CR9500B101E2A, 5945-00-425-6964, 00-425-6964, 5945004256964, 004256964
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 FEB 1972 | 00-425-6964 | 00310 ( SOLENOID, ELECTRICAL ) |

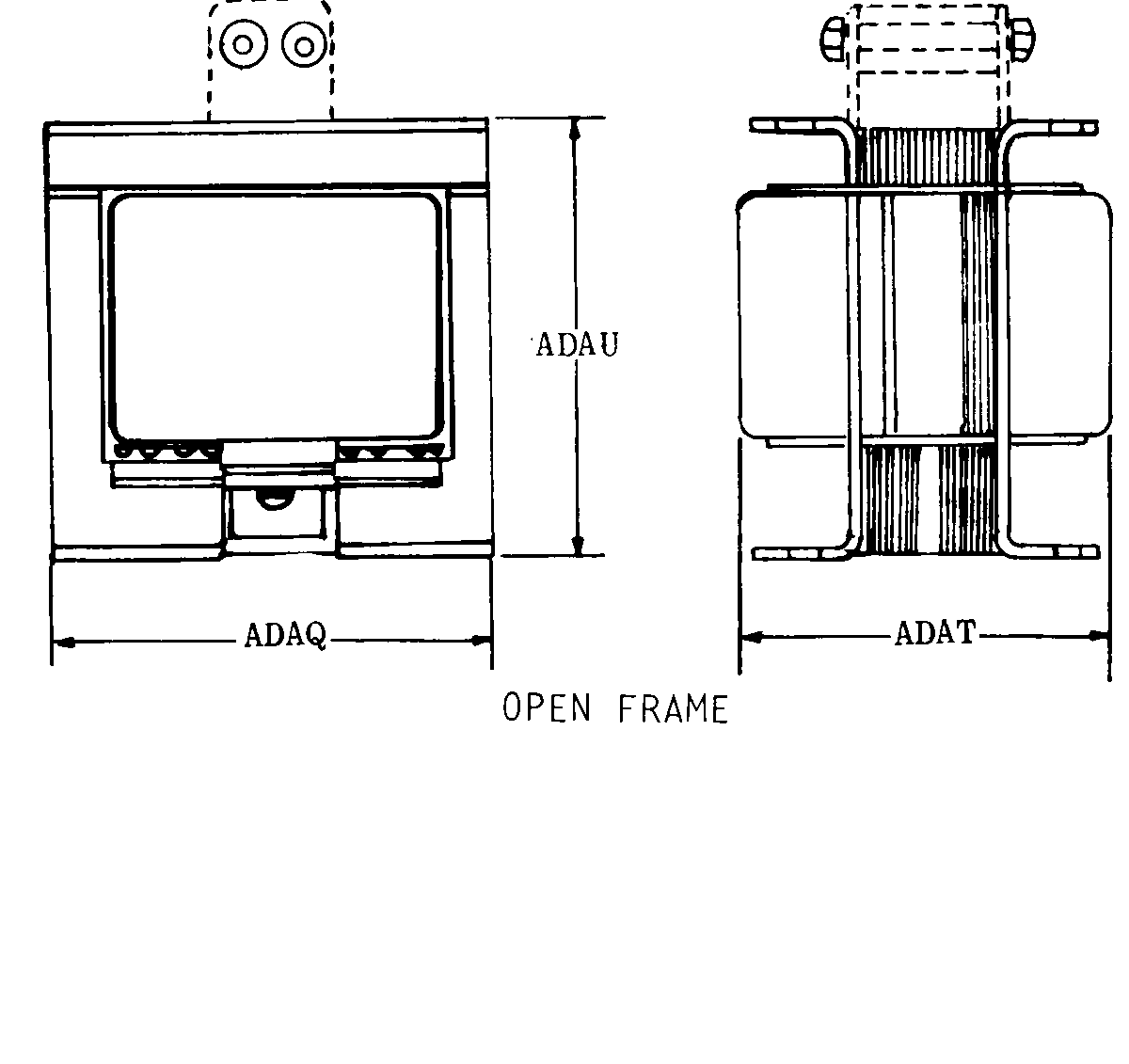

Drawings & Photos | NSN 5945-00-425-6964
Cross Reference | NSN 5945-00-425-6964
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR9500B101E2A | 02295 | GENERAL ELECTRIC CO GENERAL PURPOSE CONTROL DEPT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-425-6964
Related Products | NSN 5945-00-425-6964
Technical Data | NSN 5945-00-425-6964
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 57 OPEN FRAME |
| BODY LENGTH | 3.250 INCHES NOMINAL |
| BODY WIDTH | 2.375 INCHES NOMINAL |
| BODY HEIGHT | 2.812 INCHES NOMINAL |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 115.0 AC MAXIMUM |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PULL |
| LINEAR FORCE DELIVERED | 8.30 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 1.000 INCHES |
| POWER TAKEOFF CONNECTION TYPE | SLOTTED-DRILLED |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.875 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.190 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LOCATION | BOTH SIDES ON END OPPOSITE ACTUATOR |
| INCLOSURE TYPE | UNINCLOSED |
| III FREQUENCY IN HERTZ | 60.0 NOMINAL |
