NSN 5945-00-135-0793 A31B2571, A31B257-1, B62567A
Product Details | ELECTRICAL SOLENOID
5945-00-135-0793 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: A31B2571, A31B257-1, B62567A, H27073038, H27073-038, 170772-001, 170772001REV0, 170772-001REV0, 31B257REVA, 5945-00-135-0793, 00-135-0793, 5945001350793, 170772001, 001350793
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 DEC 1968 | 00-135-0793 | 00310 ( SOLENOID, ELECTRICAL ) |
Drawings & Photos | NSN 5945-00-135-0793
Cross Reference | NSN 5945-00-135-0793
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-135-0793
Technical Data | NSN 5945-00-135-0793
| Characteristic | Specifications |
|---|---|

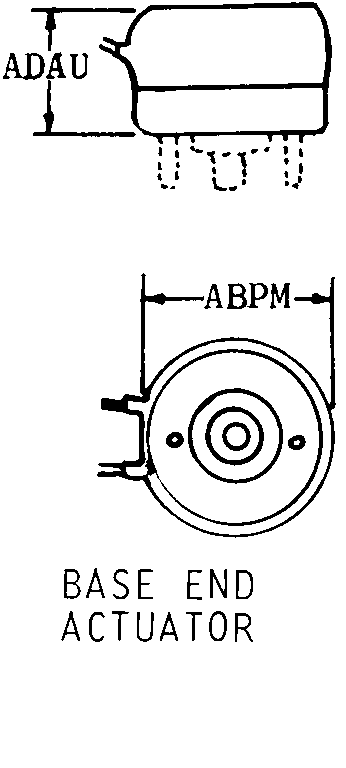

| BODY STYLE | 14 BASE END ACTUATOR |
| BODY DIAMETER | 1.912 INCHES MINIMUM AND 1.953 INCHES MAXIMUM |
| BODY HEIGHT | 1.109 INCHES NOMINAL |
| MAGNETIC COIL QUANTITY | 1 |
| ELECTRICAL RESISTANCE | 1.30 KILOHMS MINIMUM AND 1.60 KILOHMS MAXIMUM |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PUSH |
| POWER TAKEOFF CONNECTION TYPE | PLAIN |
| ACTUATOR DIAMETER | 0.249 INCHES MINIMUM AND 0.251 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED STUD |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.250 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC MOUNTING FACILITY STUD |
| NOMINAL THREAD SIZE | 0.164 INCHES MOUNTING FACILITY STUD |
| THREAD CLASS | ANY ACCEPTABLE MOUNTING FACILITY STUD |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LOCATION | CIRCUMFERENCE |
| INCLOSURE TYPE | FULLY INCLOSED |
| III MAXIMUM OPERATING TEMP | 150.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 92400 |
| DESIGN CONTROL REFERENCE | A31B257-1 |
Restrictions/Controls & Freight Information | NSN 5945-00-135-0793
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063100 | SOLENOIDS/PARTS W/WO ARMATURES |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-135-0793
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
