NSN 5945-00-027-0790 BRDJ26C1P6A14, BRDJ26C1P6A-14, EA1AA027
Product Details | ELECTROMAGNETIC RELAY
5945-00-027-0790 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: BRDJ26C1P6A14, BRDJ26C1P6A-14, EA1AA027, E-A1AA-027, ERSX2135, ER-SX-2135, FC1395W, FC-1-395W, 3SAV1210A2, 578R145H08, 5945-00-027-0790, 00-027-0790, 5945000270790, 000270790
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 MAY 1967 | 00-027-0790 | 32512 ( RELAY, ELECTROMAGNETIC ) |

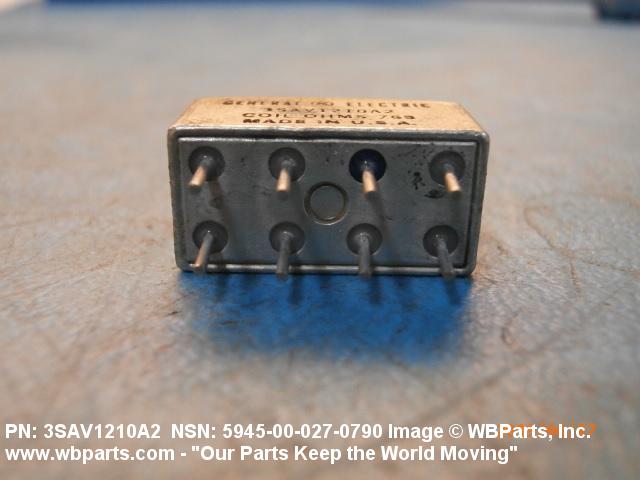

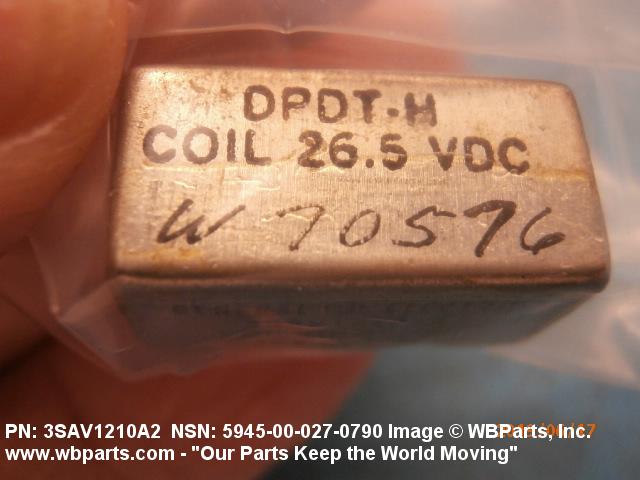

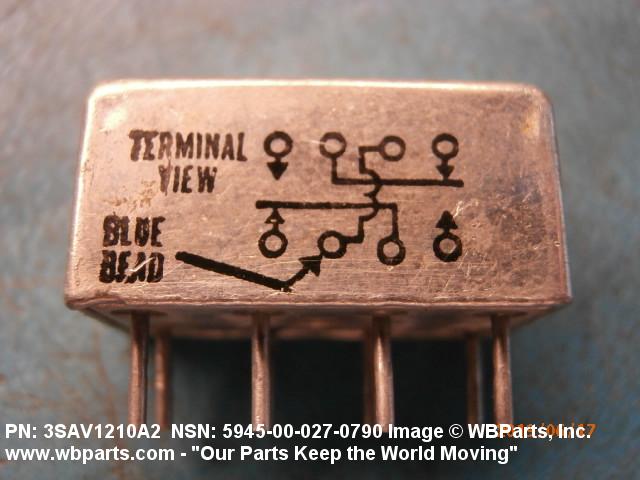

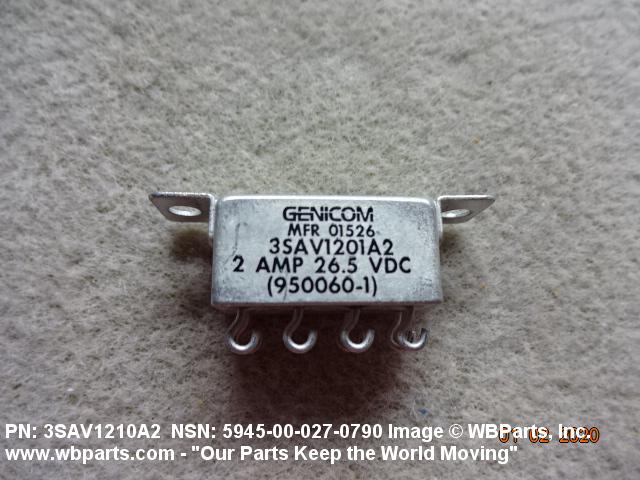

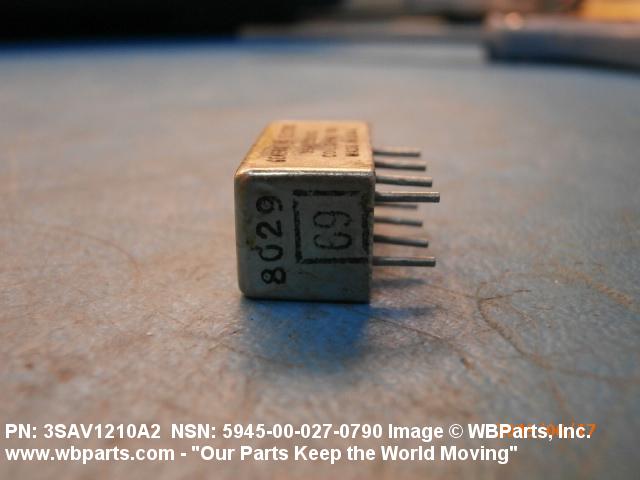

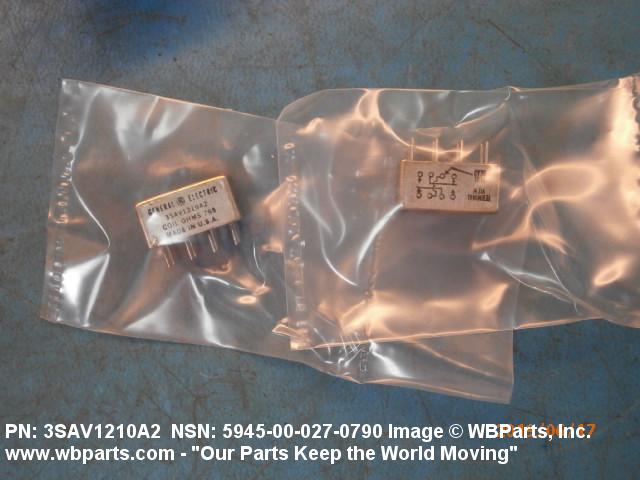

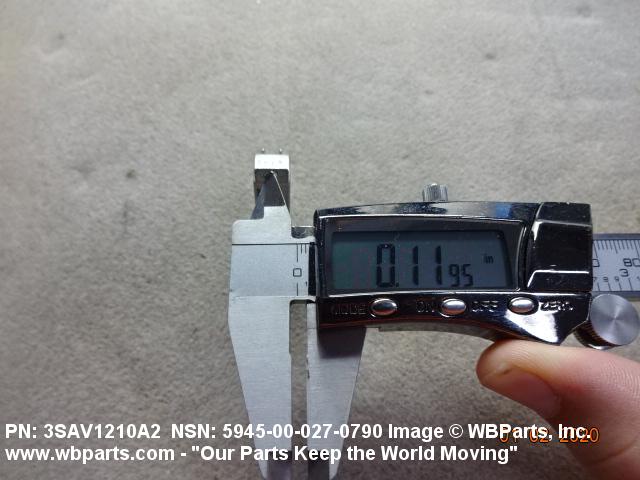

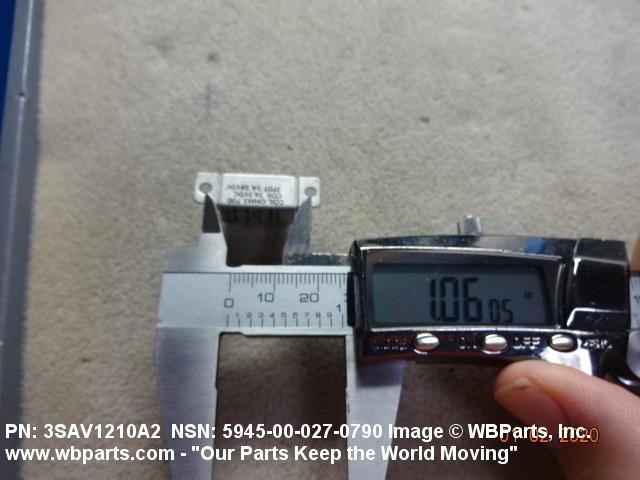

Drawings & Photos | NSN 5945-00-027-0790
Demand History | NSN 5945-00-027-0790
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-027-0790 | 2023-03-90 | 4 | United States |
| 5945-00-027-0790 | 2022-09-270 | 4 | United States |
| 578R145H08 | 2022-09-263 | 4 | United States |
| 5945-00-027-0790 | 2022-05-123 | 8 | US |
| 5945-00-027-0790 | 2022-04-109 | 8 | US |
| 578R145H08 | 2022-04-108 | 8 | Serbia |
| 578R145H08 | 2021-12-358 | 20 | Taiwan |
| 3SAV1210A2 | 2020-10-300 | 9 | Serbia |
| 3SAV1210A2 | 2019-11-331 | 6 | Serbia |
| 5945-00-027-0790 | 2019-05-126 | 2 | Serbia |
| 5945-00-027-0790 | 2015-08-234 | 2 | DE |
| 578R145H08 | 2012-01-30 | 30 | United States |
| 578R145H08 | 2011-10-283 | 6 | YU |
| 5945-00-027-0790 | 2011-09-269 | 6 | YU |
| ERSX2135 | 2011-02-54 | 1 | United States |
| ERSX2135 | 2011-02-54 | 2 | United States |
| 5945-00-027-0790 | 2008-10-275 | 5 | Greece |
Cross Reference | NSN 5945-00-027-0790
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3SAV1210A2 | 01526 | GENICOM CORP |
| 3SAV1210A2 | 1DUQ5 | COMMUNICATIONS INSTRUMENTS INC DIV OF CII TECHNOLOGIES |
| 578R145H08 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| BRDJ26C1P6A-14 | 99699 | DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE |
| E-A1AA-027 | 58657 | LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH |
| ER-SX-2135 | 02288 | ALLIED CONTROLS, INC. |
| FC-1-395W | 78290 | STRUTHERS-DUNN INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-027-0790
Related Products | NSN 5945-00-027-0790
Technical Data | NSN 5945-00-027-0790

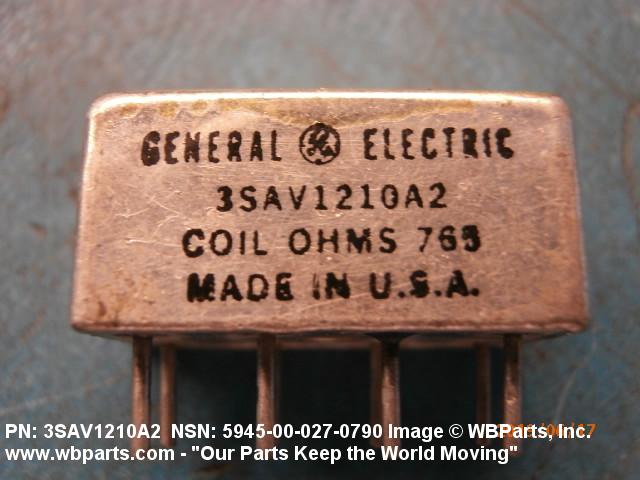

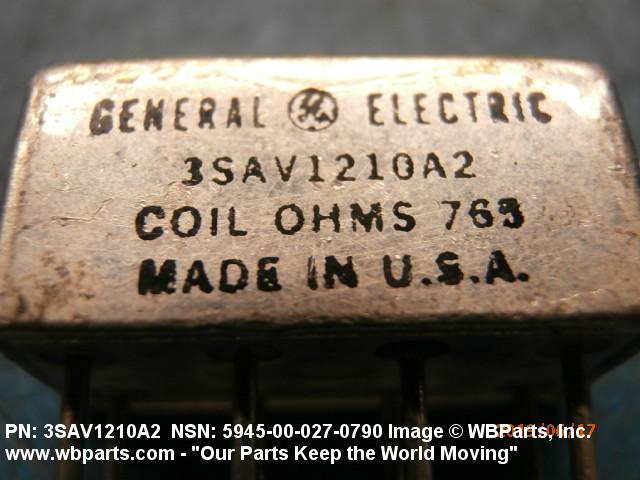

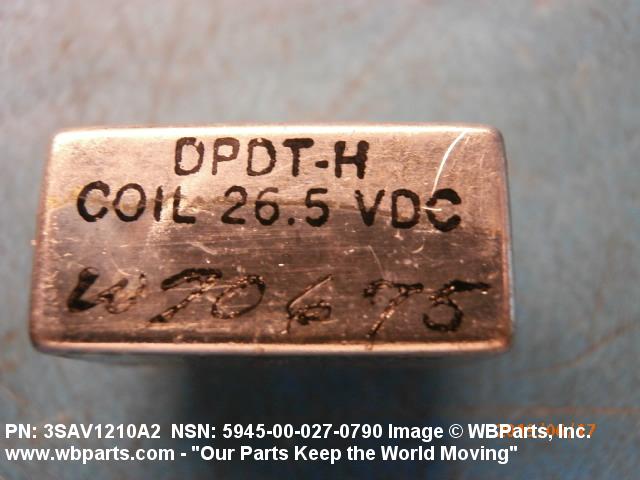

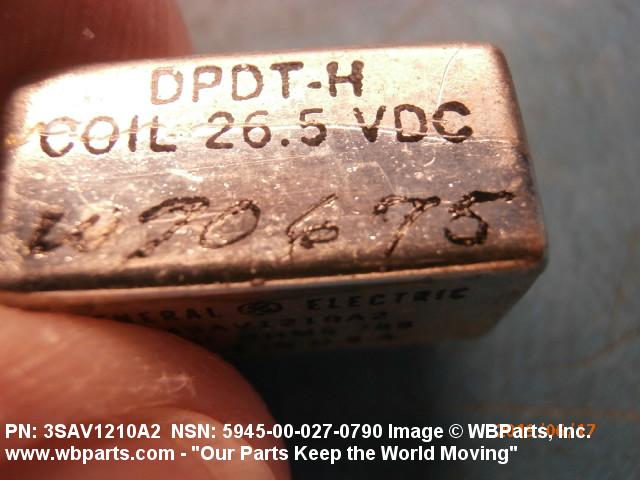

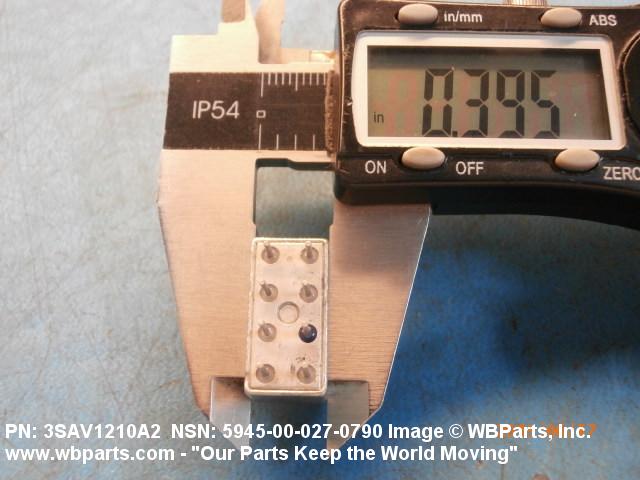

| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 1.0 AMPERES AC AND 2.0 AMPERES DC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 765.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 26.5 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 8 PIN ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |

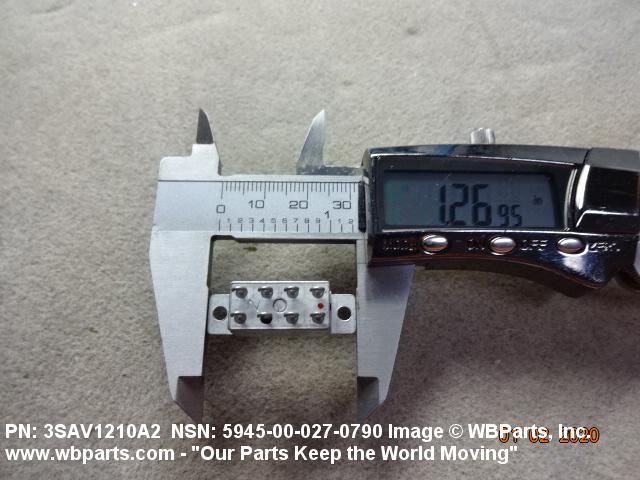

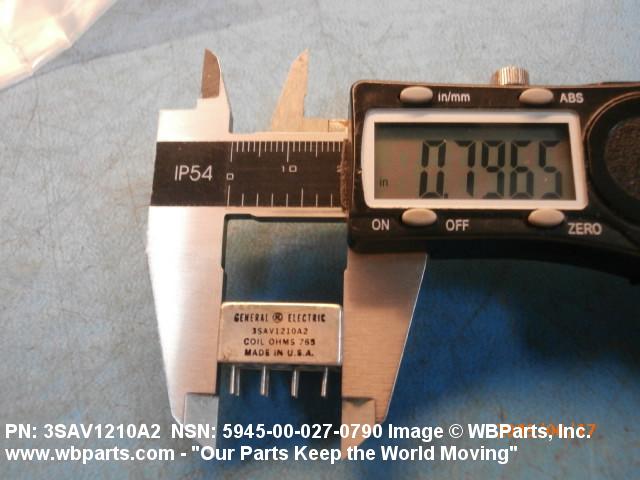

| OVERALL LENGTH | 0.810 INCHES NOMINAL |

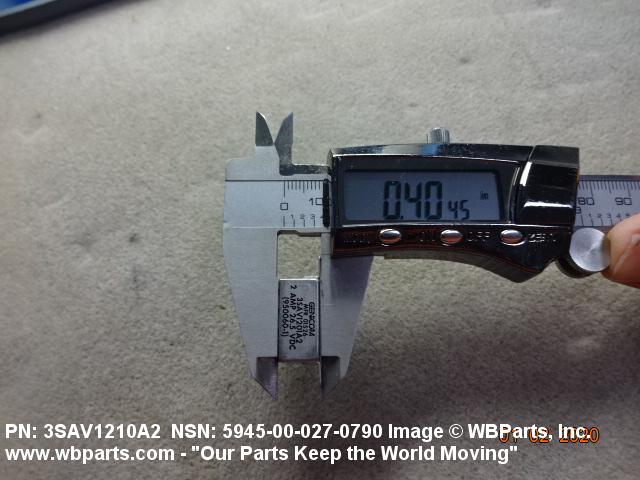

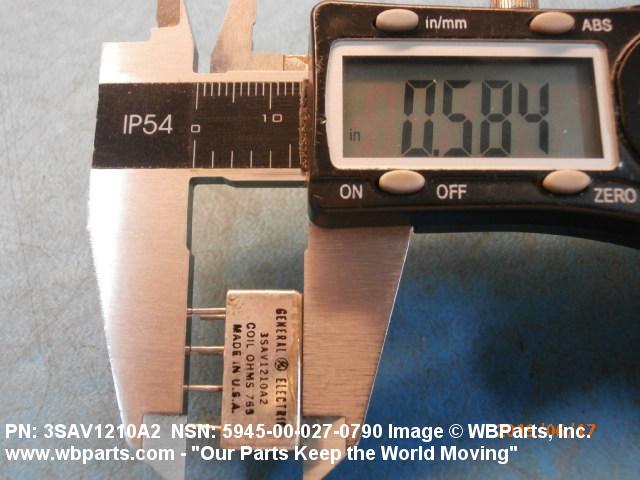

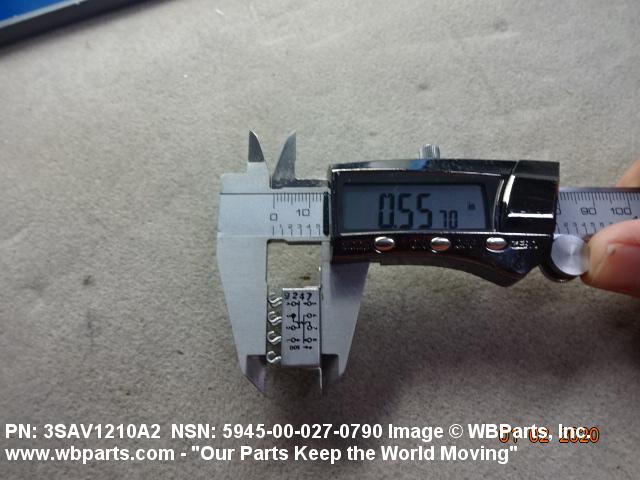

| OVERALL WIDTH | 0.410 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.622 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PLUG-IN TERMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | POLARIZED |
Restrictions/Controls & Freight Information | NSN 5945-00-027-0790
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-027-0790
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
