NSN 5940-01-630-8621 M81714/2-DA1 , M817142DA1, SAE-AS81714/3
Product Details | SECTIONAL TERMINAL JUNCTION BLOCK
5940-01-630-8621 An electrical item with multiple socket contacts which may or may not be interconnected by bussing, to form one or more circuits. Item may be of feedback, feedthrough and/or terminating design and may afford a convenient method of interconnection. It may or may not include a sealing grommet. Sectional blocks are normally retained in a track or channel mounting. Excludes CHAMBER, CABLE TERMINAL; CONTACT ASSEMBLY, ELECTRICAL; INSERT, ELECTRICAL CONNECTOR; JUNTION BOX ; TERMINAL BOARD; and TERMINAL BOX.
Part Alternates: M81714/2-DA1 , M817142DA1, SAE-AS81714/3 , SAEAS817143, 5940-01-630-8621, 01-630-8621, 5940016308621, 016308621
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 2014232 | 01-630-8621 | 32508 ( TERMINAL JUNCTION BLOCK, SECTIONAL ) |

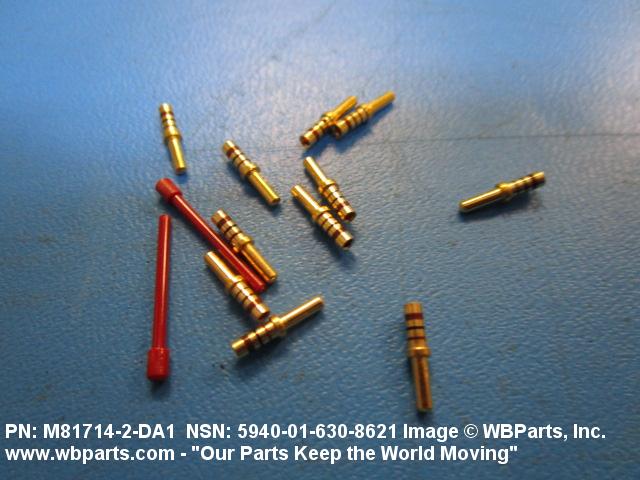

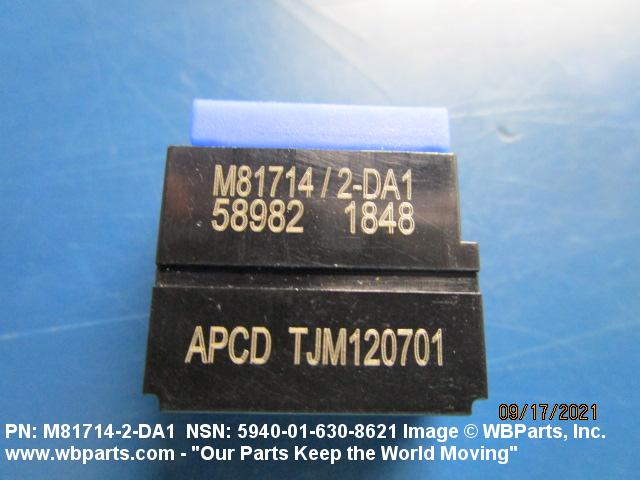

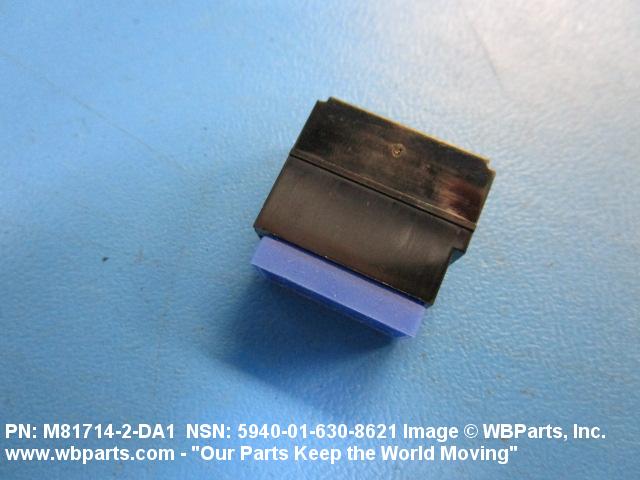

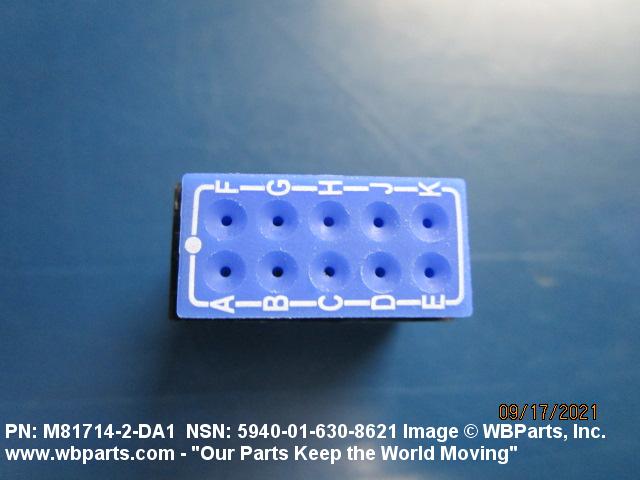

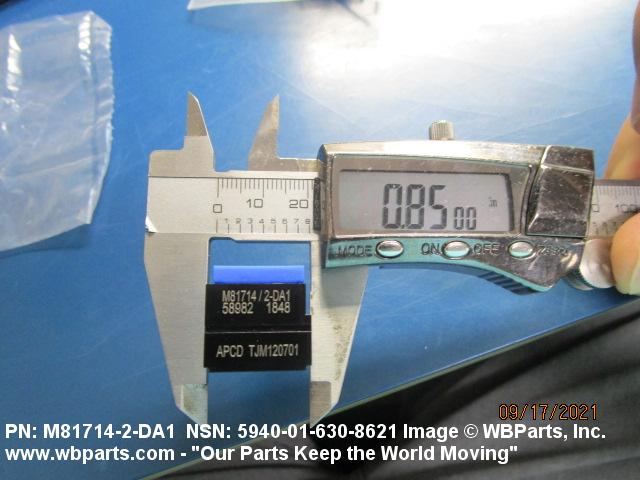

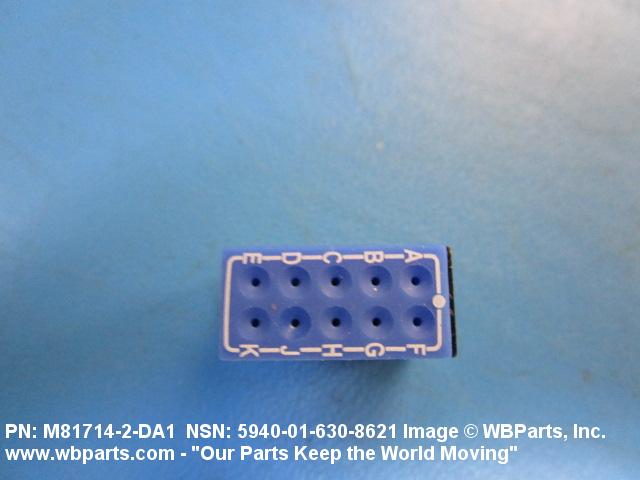

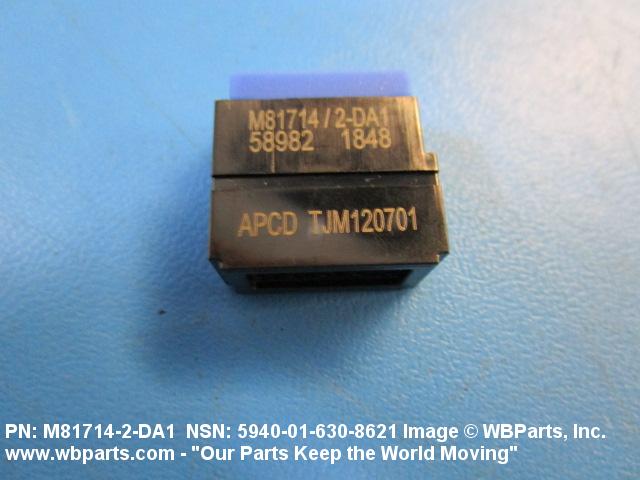

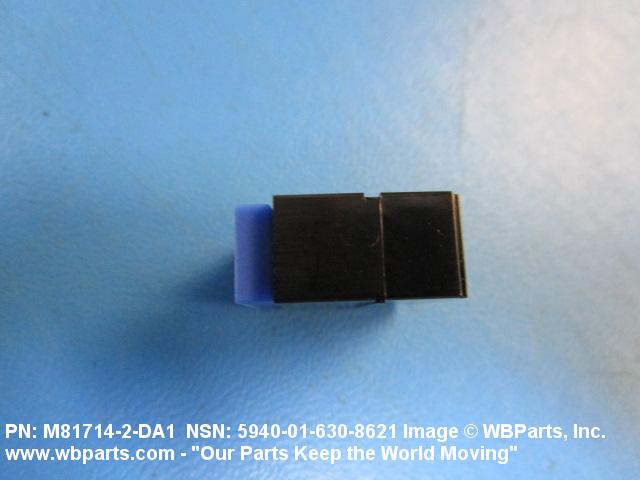

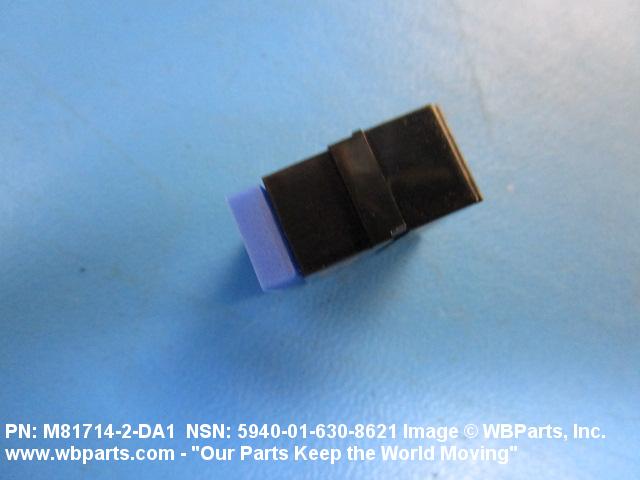

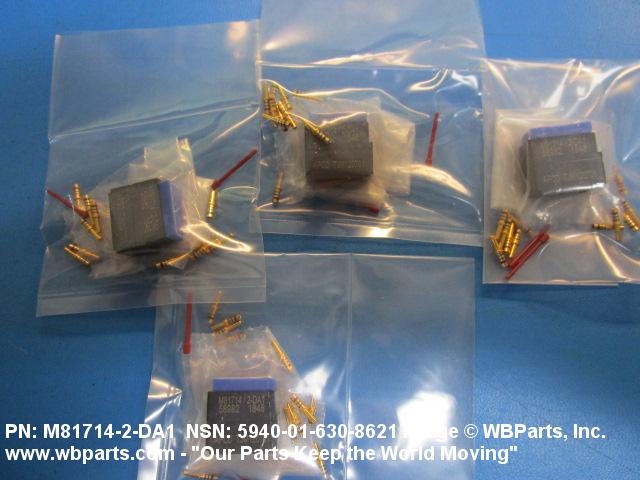

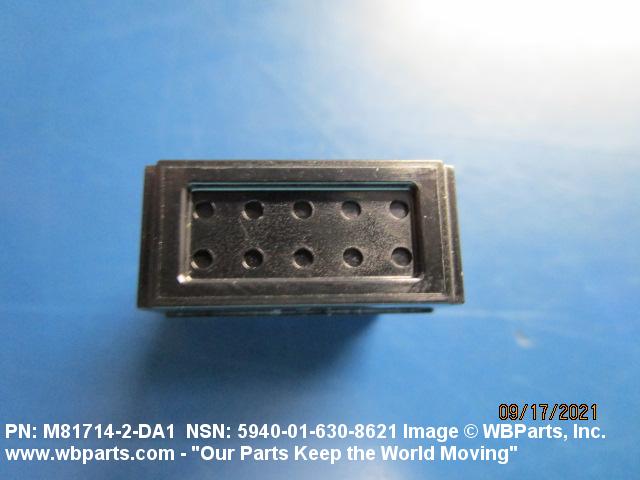

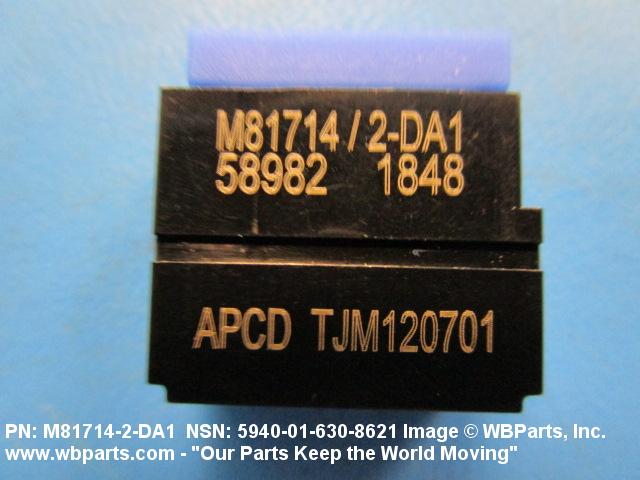

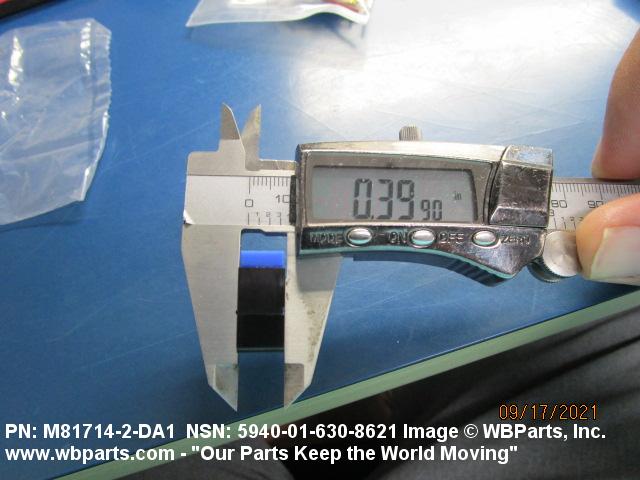

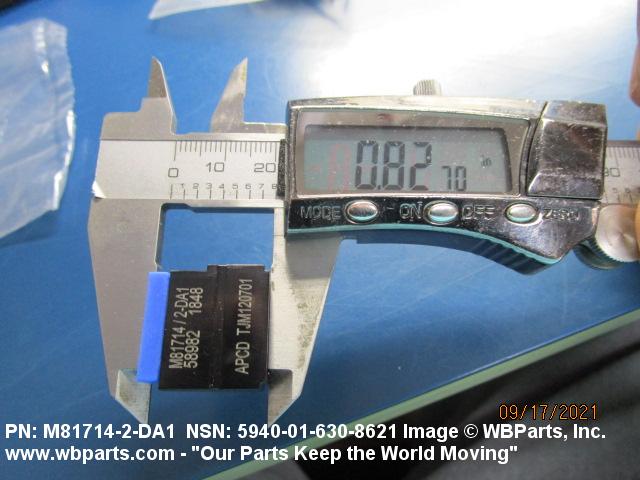

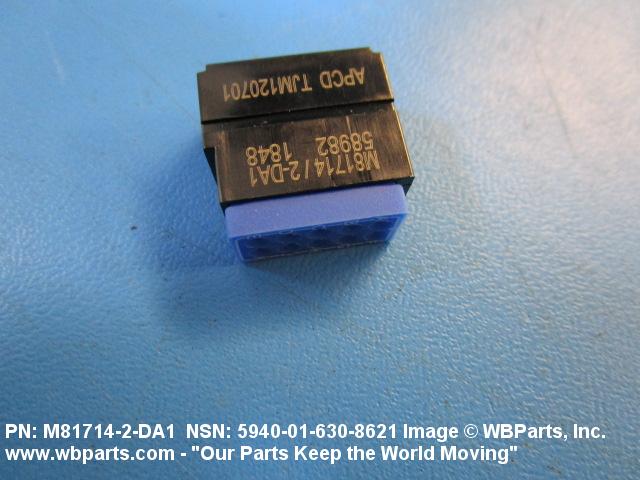

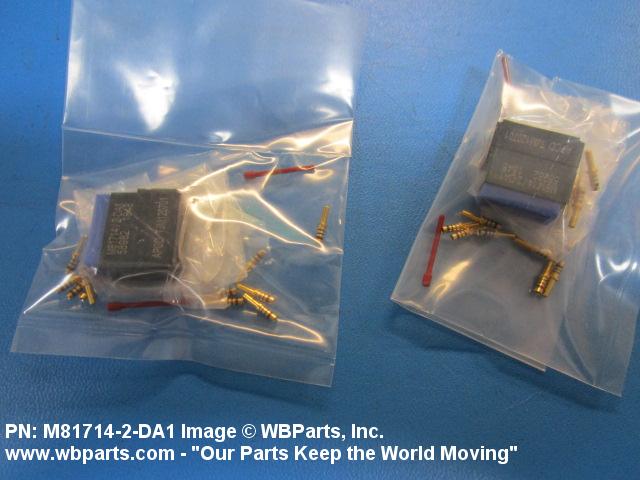

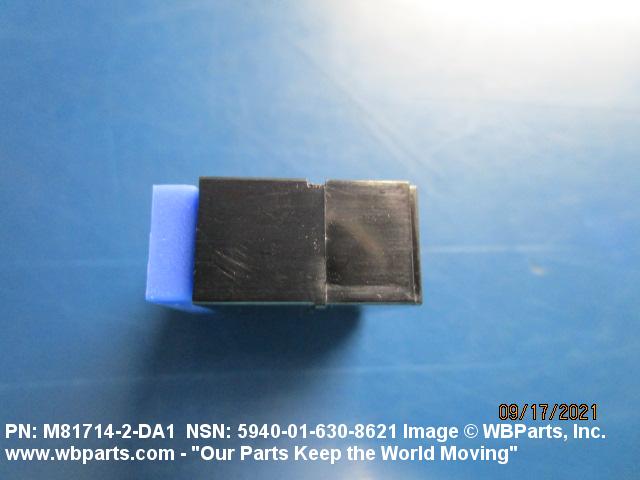

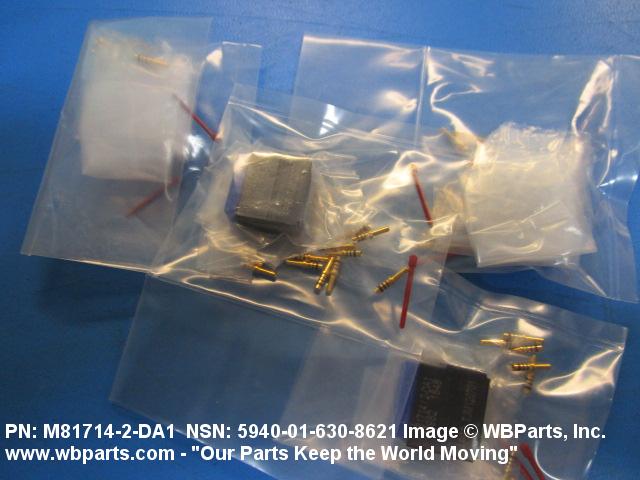

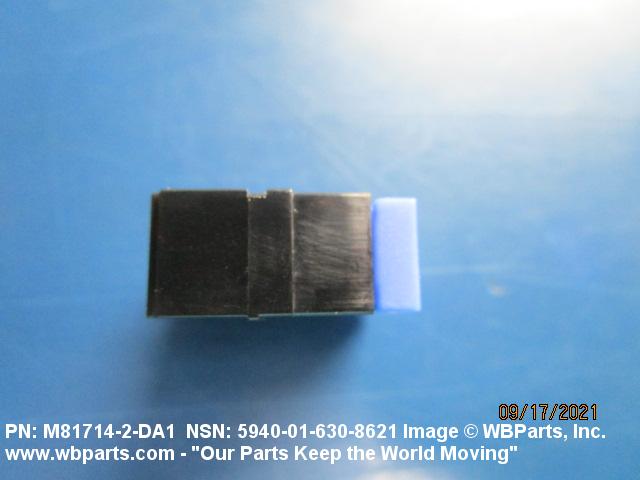

Drawings & Photos | NSN 5940-01-630-8621
Demand History | NSN 5940-01-630-8621
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-630-8621 | 2022-10-06 | 14 | United States |
| 5940-01-630-8621 | 2021-09-10 | 2 | United States |
| 5940-01-630-8621 | 2021-09-07 | 4 | United States |
| 5940-01-630-8621 | 2021-08-27 | 2 | United States |
| 5940-01-630-8621 | 2021-08-24 | 2 | United States |
| M817142DA1 | 2018-09-13 | 10 | us |
| M81714/2-DA1 | 2012-12-06 | 600 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-630-8621
Technical Data | NSN 5940-01-630-8621
| Characteristic | Specifications |
|---|---|
| TERMINAL DESIGN | FEEDBACK |
| SPECIAL FEATURES | BUSSING MODULE; SIZE 16; SERIES I; |
| III END ITEM IDENTIFICATION | TERMINAL JUNCTION SYSTEM |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | TERMINAL JUNCTION BLOCK,SECTIONAL |
Restrictions/Controls & Freight Information | NSN 5940-01-630-8621
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-630-8621
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
