NSN 5940-01-566-2473 FBS 3-5, FBS35, 3030174
Product Details | ELECTRICAL BINDING POST
5940-01-566-2473 A metallic postlike terminal, insulated or uninsulated, which is mounted on a board, chassis, panel, or other similar supporting surface. It is designed for frequent manual connections and disconnections of at least one electrical conductor, such as a wire, alligator clip, or spade lug. It may have additional tip jack features for the acceptance of banana plugs, phone tips, and the like. It may also have provisions for permanently attaching an electrical conductor(s). For items which require all electrical conductors to be permanently attached (soldered, crimped, and the like), see TERMINAL, STUD. See also JACK, TIP.
Part Alternates: FBS 3-5, FBS35, 3030174, 5940-01-566-2473, 01-566-2473, 5940015662473, 015662473
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 AUG 2008 | 01-566-2473 | 00883 ( POST, BINDING, ELECTRICAL ) |
Drawings & Photos | NSN 5940-01-566-2473
Demand History | NSN 5940-01-566-2473
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3030174 | 2022-04-95 | 4 | |
| 5940-01-566-2473 | 2017-06-172 | 50 | DIBBS |
| 5940-01-566-2473 | 2015-07-195 | 1 | DIBBS |
| 5940-01-566-2473 | 2015-07-187 | 1 | DIBBS |
| 5940-01-566-2473 | 2015-04-112 | 1 | DIBBS |
| 5940-01-566-2473 | 2015-04-104 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-566-2473
Technical Data | NSN 5940-01-566-2473
| Characteristic | Specifications |
|---|---|

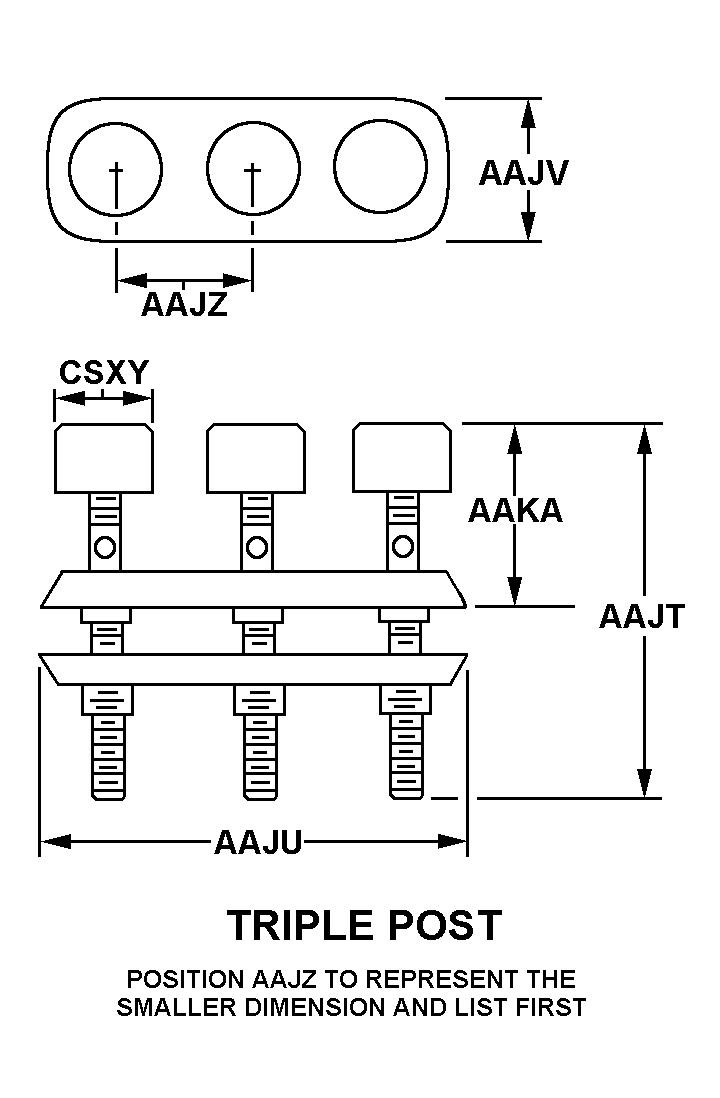

| BASIC SHAPE STYLE | A4 TRIPLE POST |
| MATERIAL | PLASTIC INSULATION |
| SPECIAL FEATURES | INSULATION BRIDGE COLOR IS RED; TECH DATA INDICATES ITEM IS PACKED IN 50 PIECE QUANTITIES |
| III END ITEM IDENTIFICATION | NAVY CODE 72A080024 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PLUG-IN BRIDGE FOR CROSS-CONNECTIONS IN THE TERMINAL CENTER,3-POSITION |
Restrictions/Controls & Freight Information | NSN 5940-01-566-2473
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-566-2473
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
