Product Details | ELECTRICAL BINDING POST
5940-00-615-9160 A metallic postlike terminal, insulated or uninsulated, which is mounted on a board, chassis, panel, or other similar supporting surface. It is designed for frequent manual connections and disconnections of at least one electrical conductor, such as a wire, alligator clip, or spade lug. It may have additional tip jack features for the acceptance of banana plugs, phone tips, and the like. It may also have provisions for permanently attaching an electrical conductor(s). For items which require all electrical conductors to be permanently attached (soldered, crimped, and the like), see TERMINAL, STUD. See also JACK, TIP.
Part Alternates: 260, 5940-00-615-9160, 00-615-9160, 5940006159160, 006159160
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-615-9160 | 00883 ( POST, BINDING, ELECTRICAL ) |
Drawings & Photos | NSN 5940-00-615-9160
Demand History | NSN 5940-00-615-9160
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 260 | 2024-10-289 | 6 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-615-9160
Related Products | NSN 5940-00-615-9160
Technical Data | NSN 5940-00-615-9160
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A1 SINGLE POST, ROUND |
| OVERALL HEIGHT | 1.625 INCHES |
| OVERALL DIAMETER | 0.500 INCHES |
| MAXIMUM HEIGHT ABOVE MOUNTING SURFACE | 1.031 INCHES |
| CAP OUTSIDE DIAMETER | 0.500 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SCREW CAP W/HOLE SINGLE END |
| WIRE HOLE DIAMETER | 0.085 INCHES SINGLE END |

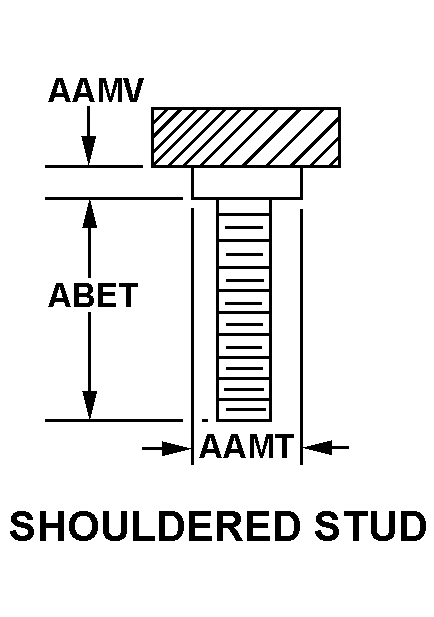

| MOUNTING METHOD STYLE | D26 SHOULDERED STUD |
| MAJOR BUSHING DIAMETER | 0.312 INCHES |
| MAJOR BUSHING LENGTH | 0.029 INCHES |
| THREAD LENGTH | 0.527 INCHES |
| MOUNTING THREAD SERIES | UNC |
| MOUNTING THREAD DIAMETER | 0.164 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| ELECTRICAL INSULATION FEATURE | INSULATED CAPS WITH UNINSULATED STUDS |
| IDENTIFICATION CODE COLOR | RED |
| MATERIAL | COPPER ALLOY CONDUCTOR ACCOMMODATION PLASTIC MELAMINE INSULATION COPPER ALLOY MOUNTING FACILITY |
| SURFACE TREATMENT | NICKEL CONDUCTOR ACCOMMODATION SINGLE LAYER NICKEL MOUNTING FACILITY SINGLE LAYER |
| FEATURES PROVIDED | MOUNTING HARDWARE |
