NSN 5940-01-508-1555 M81714/12-16D-2, M817141216D2, AS81714/12-16D-2
Product Details | SECTIONAL TERMINAL JUNCTION BLOCK
5940-01-508-1555 An electrical item with multiple socket contacts which may or may not be interconnected by bussing, to form one or more circuits. Item may be of feedback, feedthrough and/or terminating design and may afford a convenient method of interconnection. It may or may not include a sealing grommet. Sectional blocks are normally retained in a track or channel mounting. Excludes CHAMBER, CABLE TERMINAL; CONTACT ASSEMBLY, ELECTRICAL; INSERT, ELECTRICAL CONNECTOR; JUNTION BOX ; TERMINAL BOARD; and TERMINAL BOX.
Part Alternates: M81714/12-16D-2, M817141216D2, AS81714/12-16D-2, AS817141216D2, 5940-01-508-1555, 01-508-1555, 5940015081555, 015081555
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 MAY 2003 | 01-508-1555 | 32508 ( TERMINAL JUNCTION BLOCK, SECTIONAL ) |

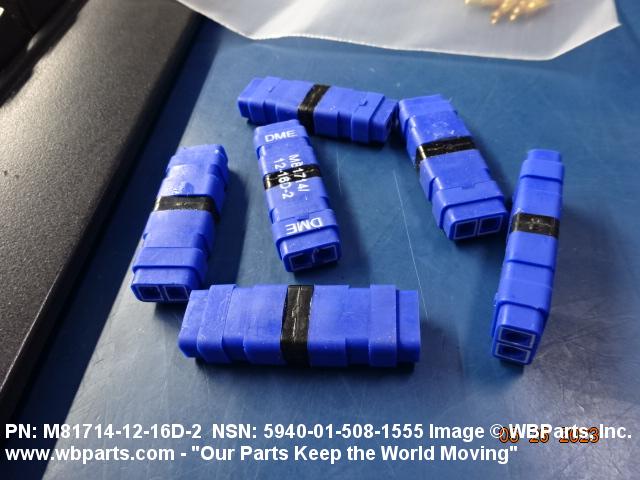

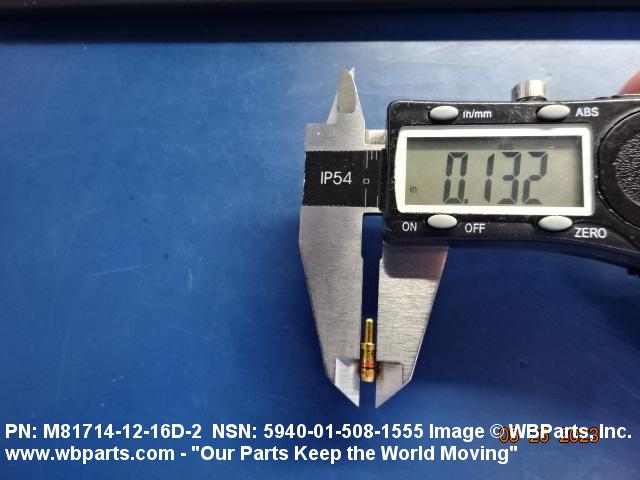

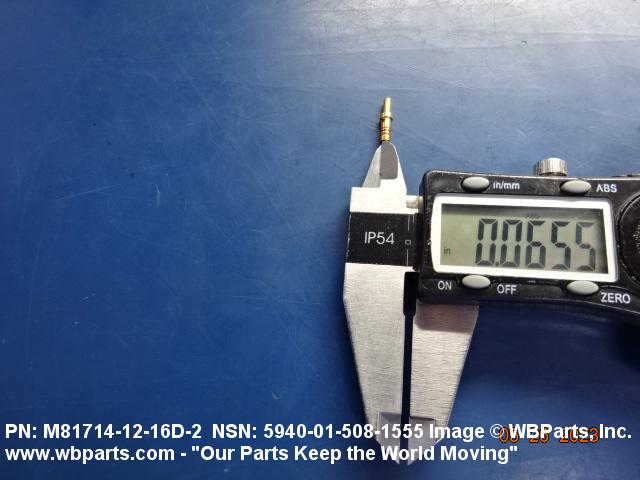

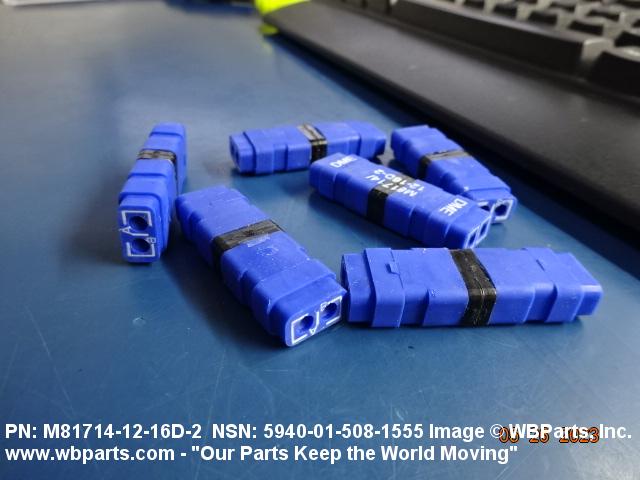

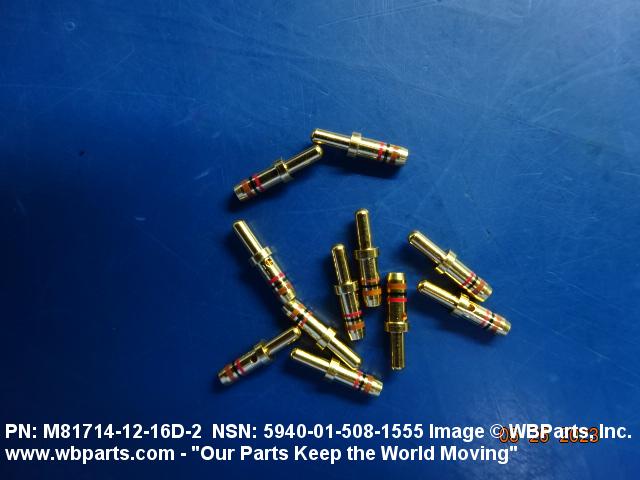

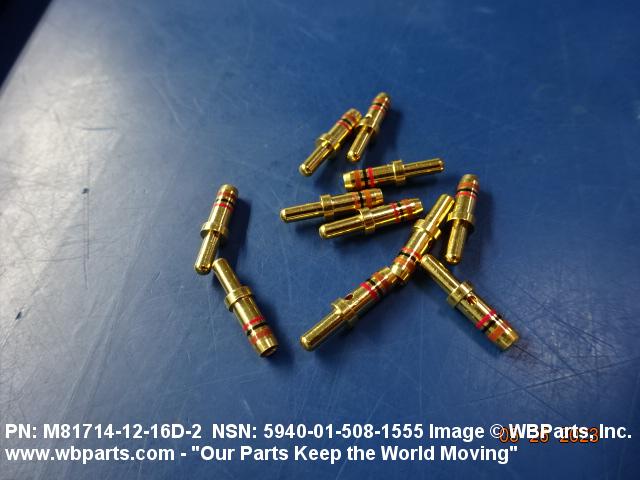

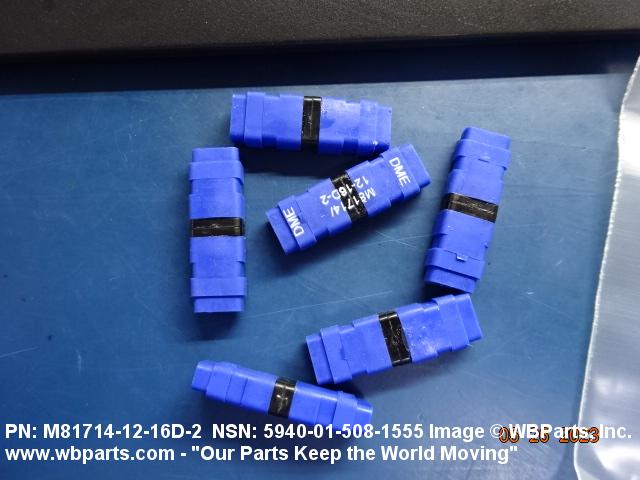

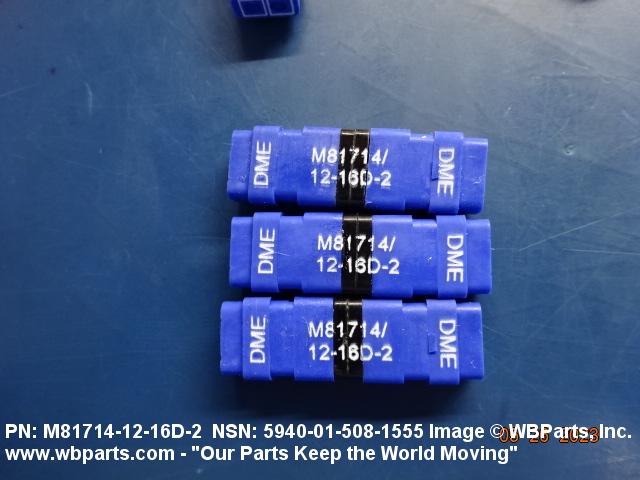

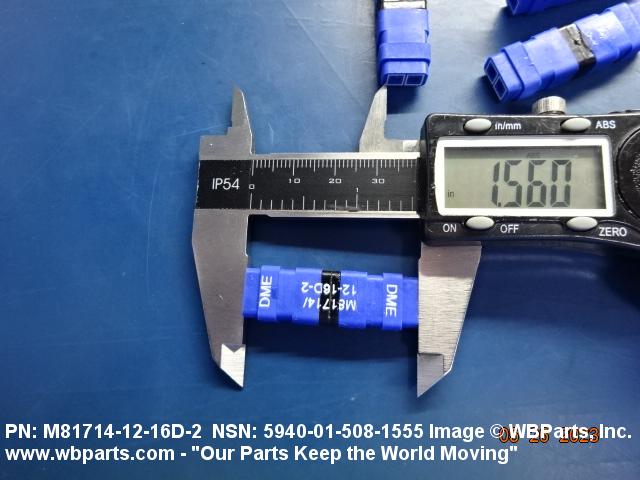

Drawings & Photos | NSN 5940-01-508-1555
Demand History | NSN 5940-01-508-1555
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-508-1555 | 2024-07-200 | 49 | DIBBS |
| 5940-01-508-1555 | 2024-04-105 | 63 | DIBBS |
| 5940-01-508-1555 | 2023-12-351 | 50 | DIBBS |
| 5940-01-508-1555 | 2023-05-132 | 10 | United States |
| 5940-01-508-1555 | 2023-05-124 | 50 | DIBBS |
| 5940-01-508-1555 | 2023-05-122 | 50 | United States |
| 5940-01-508-1555 | 2023-02-32 | 344 | DIBBS |
| 5940-01-508-1555 | 2022-12-352 | 53 | DIBBS |
| 5940-01-508-1555 | 2022-12-343 | 365 | DIBBS |
| 5940-01-508-1555 | 2022-11-318 | 365 | DIBBS |
| 5940-01-508-1555 | 2022-10-294 | 271 | DIBBS |
| 5940-01-508-1555 | 2022-09-261 | 271 | DIBBS |
| 5940-01-508-1555 | 2022-06-173 | 115 | DIBBS |
| 5940-01-508-1555 | 2022-02-54 | 83 | DIBBS |
| 5940-01-508-1555 | 2022-02-53 | 83 | DIBBS |
| 5940-01-508-1555 | 2020-07-198 | 1 | us |
| 5940-01-508-1555 | 2018-07-203 | 196 | DIBBS |
| 5940-01-508-1555 | 2018-03-81 | 167 | DIBBS |
| 5940-01-508-1555 | 2017-10-277 | 430 | DIBBS |
| 5940-01-508-1555 | 2017-06-177 | 762 | DIBBS |
| 5940-01-508-1555 | 2017-02-57 | 115 | DIBBS |
| 5940-01-508-1555 | 2015-06-175 | 702 | DIBBS |
| 5940-01-508-1555 | 2013-08-241 | 590 | DIBBS |
| 5940-01-508-1555 | 2012-03-74 | 635 | DIBBS |
| 5940-01-508-1555 | 2011-08-213 | 271 | DIBBS |
| M817141216D2 | 2011-01-27 | 100 | UK |
| 5940-01-508-1555 | 2010-02-49 | 9 | DIBBS |
| 5940-01-508-1555 | 2009-12-342 | 223 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-508-1555
Related Products | NSN 5940-01-508-1555
Technical Data | NSN 5940-01-508-1555
| Characteristic | Specifications |
|---|---|
| BLOCK TYPE | REGULAR |
| TERMINAL DESIGN | FEEDTHRU |

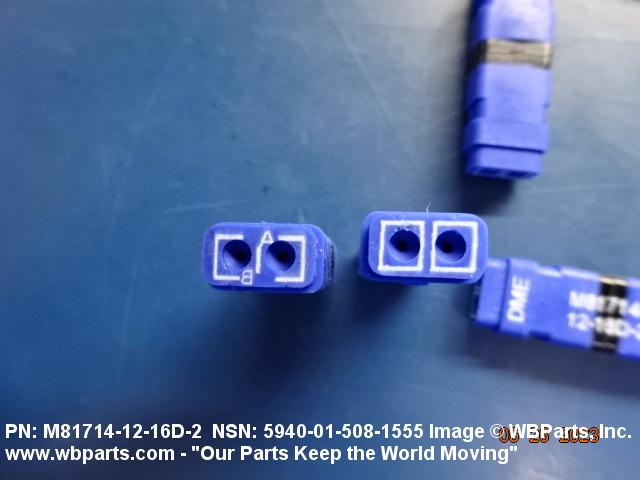

| TERMINAL TYPE AND QUANTITY | 2 SOCKET |
| POLE QUANTITY | 2 |
| CURRENT TYPE | AC OR DC |
| VOLTAGE RATING | 600.0 VOLTS NOMINAL |
| OPERATING TEMP RANGE | -65.0 TO 200.0 DEG CELSIUS |
| MOUNTING METHOD | PLUG-IN |

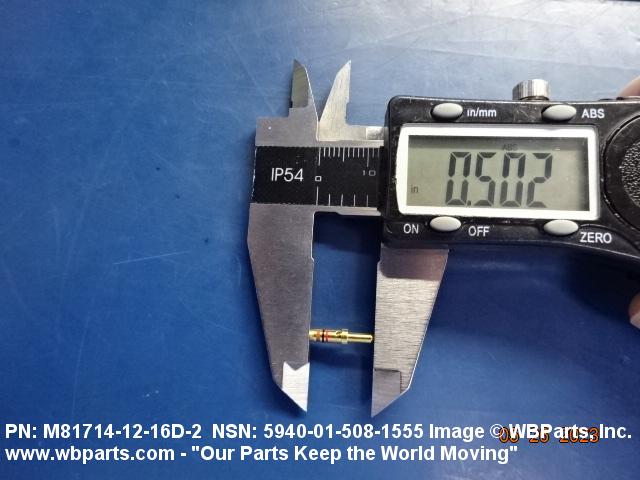

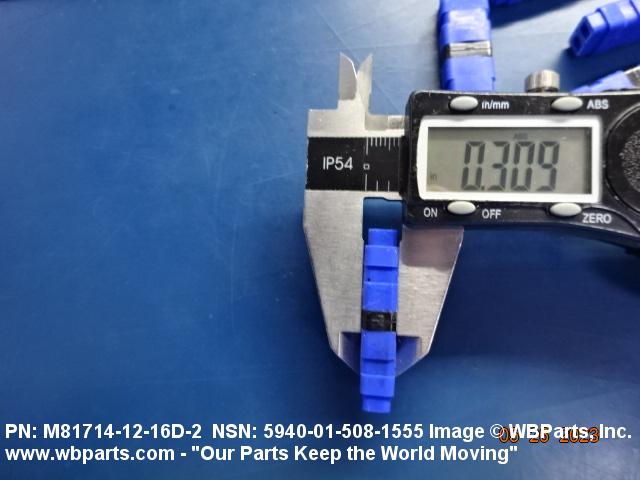

| OVERALL WIDTH | 0.300 INCHES NOMINAL |
