NSN 5940-01-467-2677 1S419, 1S4-19, 480022
Product Details | STUD TERMINAL
5940-01-467-2677 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: 1S419, 1S4-19, 480022, 5940-01-467-2677, 01-467-2677, 5940014672677, 014672677
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 AUG 1999 | 01-467-2677 | 00887 ( TERMINAL, STUD ) |
Drawings & Photos | NSN 5940-01-467-2677
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-467-2677
Technical Data | NSN 5940-01-467-2677
| Characteristic | Specifications |
|---|---|

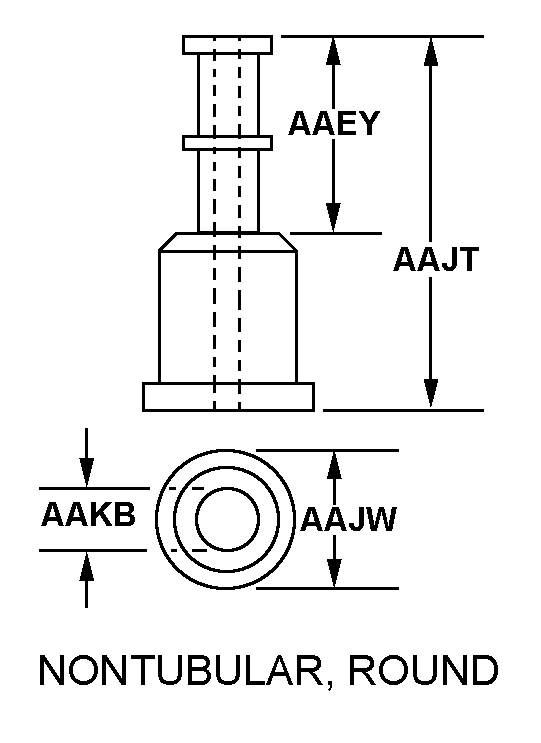

| BASIC SHAPE STYLE | A11A NONTUBULAR, ROUND |
| TERMINAL LENGTH | 0.181 INCHES |
| OVERALL HEIGHT | 0.213 INCHES |
| OVERALL DIAMETER | 0.125 INCHES |
| THRU-HOLE DIAMETER | 0.090 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SINGLE TURRET SINGLE END |
| LARGEST DIAMETER | 0.075 INCHES SINGLE END |
| TURRET MINOR DIAMETER | 0.025 INCHES SINGLE END |
| MOUNTING METHOD STYLE | D33 SWAGE |
| MINOR BUSHING LENGTH | 0.078 INCHES |
| SWAGE DEPTH | 0.032 INCHES |
| SWAGE OUTSIDE DIAMETER | 0.063 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | GOLD AND NICKEL ALLOY OVERALL |
| III END ITEM IDENTIFICATION | FY692/93ANG TK |
