NSN 5940-01-467-2889 MS21004, MS2100422, MS21004-22
Product Details | LUG TERMINAL
5940-01-467-2889 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: MS21004, MS2100422, MS21004-22, AS21004, AS2100422, AS21004-22 , 5940-01-467-2889, 01-467-2889, 5940014672889, 014672889
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 AUG 1999 | 01-467-2889 | 00746 ( TERMINAL, LUG ) |
Drawings & Photos | NSN 5940-01-467-2889
Demand History | NSN 5940-01-467-2889
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-467-2889 | 2014-12-10 | 2942 | DIBBS |
| 5940-01-467-2889 | 2014-12-03 | 3000 | US |
| 5940-01-467-2889 | 2014-12-02 | 5 | DIBBS |
| 5940-01-467-2889 | 2014-12-01 | 2942 | DIBBS |
| MS2100422 | 2014-11-29 | 10 | us |
| 5940-01-467-2889 | 2014-11-23 | 5 | DIBBS |
| MS2100422 | 2014-09-11 | 5 | us |
| 5940-01-467-2889 | 2014-08-29 | 5 | us |
| 5940-01-467-2889 | 2014-07-10 | 5 | DIBBS |
| MS2100422 | 2014-04-24 | 100 | US |
| MS2100422 | 2014-04-24 | 100 | United States |
Cross Reference | NSN 5940-01-467-2889
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS21004 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21004-22 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21004 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21004-22 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21004-22 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-467-2889
Related Products | NSN 5940-01-467-2889
Technical Data | NSN 5940-01-467-2889
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A24 CRIMP |
| OVERALL LENGTH | 10.753 INCHES |
| OVERALL WIDTH | 0.182 INCHES |
| MATERIAL THICKNESS | 0.030 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | STRAIGHT BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 18 AWG |

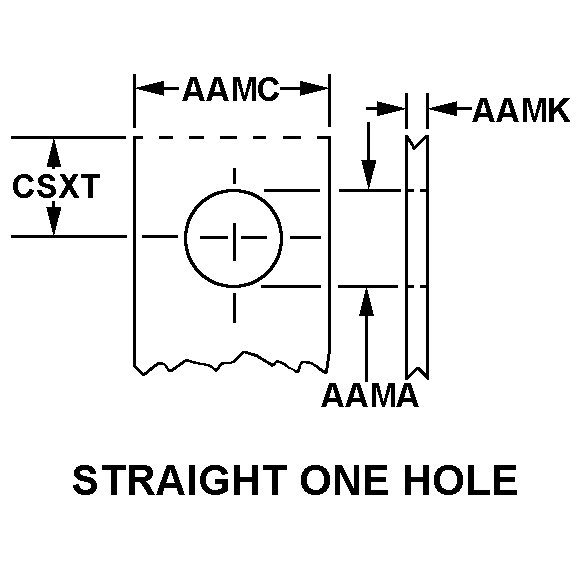

| MOUNTING METHOD STYLE | D11 STRAIGHT ONE HOLE |
| MOUNTING HOLE DIAMETER | 0.094 INCHES |
| MOUNTING TONGUE WIDTH | 0.182 INCHES |
| MOUNTING FACILITY THICKNESS | 0.030 INCHES |
| DISTANCE FROM MOUNTING HOLE CENTER TO MOUNTING END | 0.110 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | TIN OVERALL SINGLE LAYER |
| SPECIFICATION/STANDARD DATA | 96906-MS21004 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | RADAR SET PATRIOT |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21004 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21004-22 |
Restrictions/Controls & Freight Information | NSN 5940-01-467-2889
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | DX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-467-2889
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
