NSN 5940-01-244-9149 SYM.521.1, SYM5211, 9000S620274137
Product Details | TERMINAL BOX
5940-01-244-9149 An enclosure which includes, mounts and protects one or more terminals and/or terminal boards. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, and conduit fittings. For boxes which include combinations of different electrical devices such as terminals and/or terminal boards, fuseholders, switches, jacks, circuit breakers, connectors and the like, see DISTRIBUTION BOX. For boxes which are designed to mount, but which do not include terminals and/or terminal boards, see JUNCTION BOX. Excludes TERMINAL BOARD ASSEMBLY. See also CHAMBER, CABLE TERMINAL; and INTERCONNECTING CABINET.
Part Alternates: SYM.521.1, SYM5211, 9000S620274137, 9000-S6202-74137, 9000S620274137SYM5211, 5940-01-244-9149, 01-244-9149, 5940012449149, 012449149
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 NOV 1986 | 01-244-9149 | 00452 ( TERMINAL BOX ) |
Drawings & Photos | NSN 5940-01-244-9149
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-244-9149
Technical Data | NSN 5940-01-244-9149
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 6A RECTANGULAR, SURFACE MOUNTING |
| OVERALL DEPTH | 5.375 INCHES NOMINAL |
| OVERALL HEIGHT | 9.000 INCHES NOMINAL |
| OVERALL WIDTH | 6.000 INCHES NOMINAL |
| MATERIAL | BRASS |
| SURFACE TREATMENT | ENAMEL |
| MOUNTING METHOD | UNTHREADED HOLE |

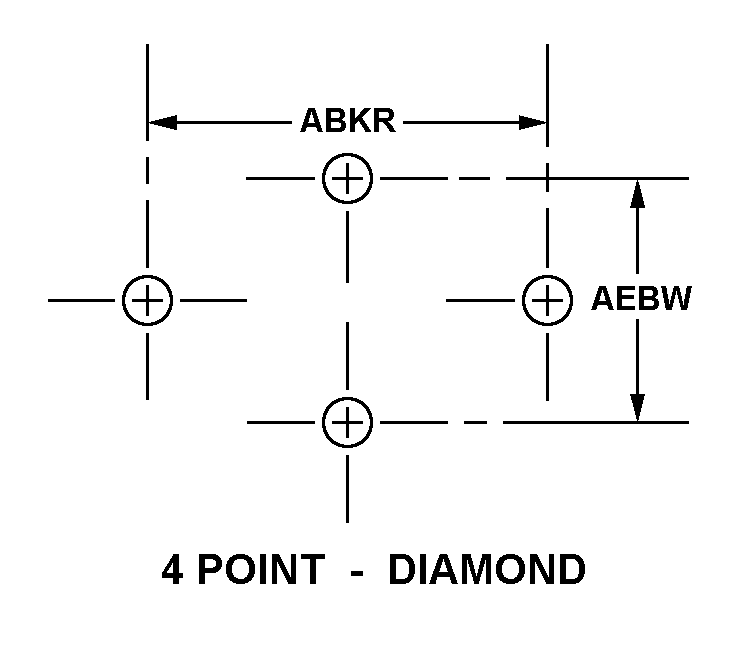

| STANDARD MOUNTING PATTERN DESIGNATOR | 3C 4 POINT-DIAMOND |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 5.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 6.000 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.437 INCHES NOMINAL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 03950 |
| DESIGN CONTROL REFERENCE | SYM.521.1 |
