NSN 5940-01-243-6939 M81714/2-DB1, M817142DB1, AS81714
Product Details | SECTIONAL TERMINAL JUNCTION BLOCK
5940-01-243-6939 An electrical item with multiple socket contacts which may or may not be interconnected by bussing, to form one or more circuits. Item may be of feedback, feedthrough and/or terminating design and may afford a convenient method of interconnection. It may or may not include a sealing grommet. Sectional blocks are normally retained in a track or channel mounting. Excludes CHAMBER, CABLE TERMINAL; CONTACT ASSEMBLY, ELECTRICAL; INSERT, ELECTRICAL CONNECTOR; JUNTION BOX ; TERMINAL BOARD; and TERMINAL BOX.
Part Alternates: M81714/2-DB1, M817142DB1, AS81714, AS81714/2, AS817142, MILT81714, MIL-T-81714, TJM120702, 5940-01-243-6939, 01-243-6939, 5940012436939, 012436939
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 OCT 1986 | 01-243-6939 | 32508 ( TERMINAL JUNCTION BLOCK, SECTIONAL ) |

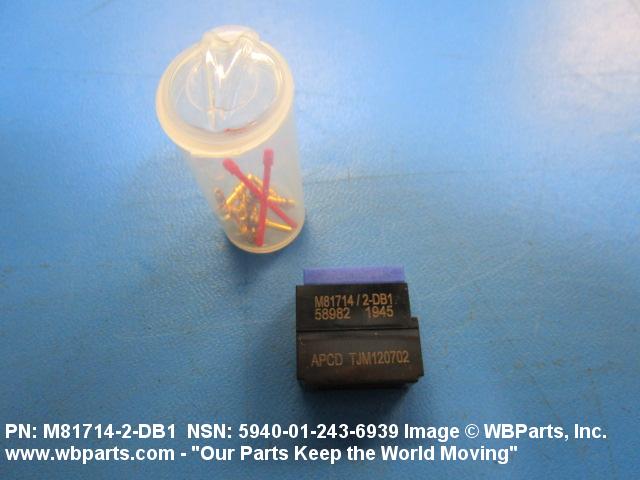

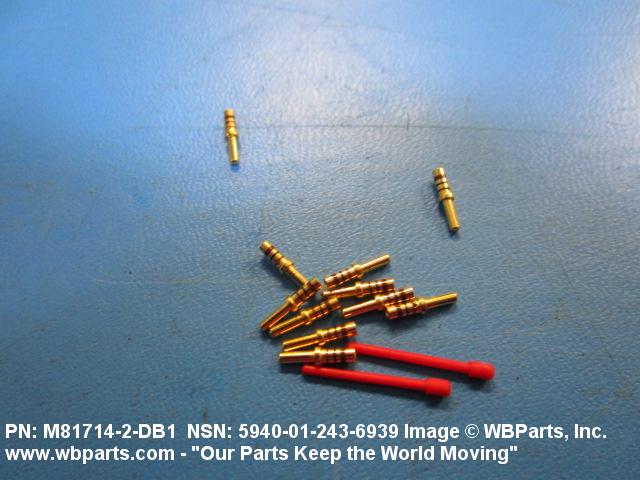

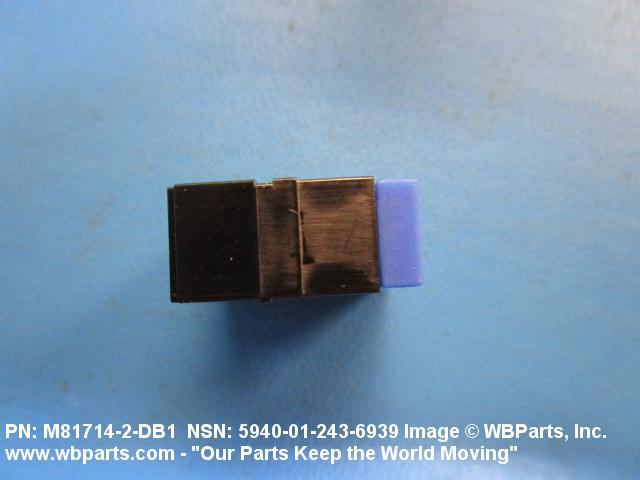

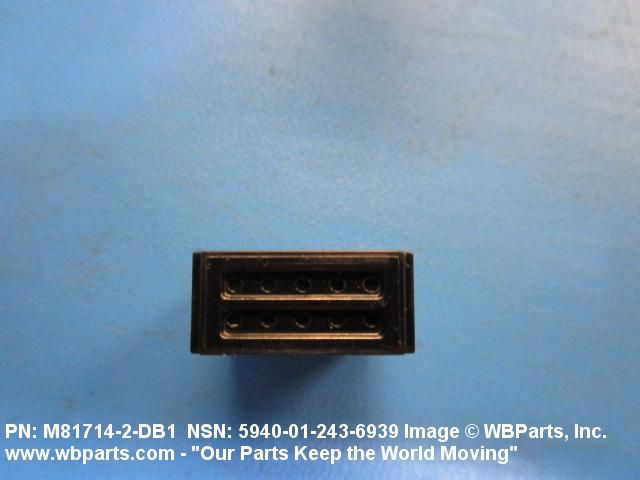

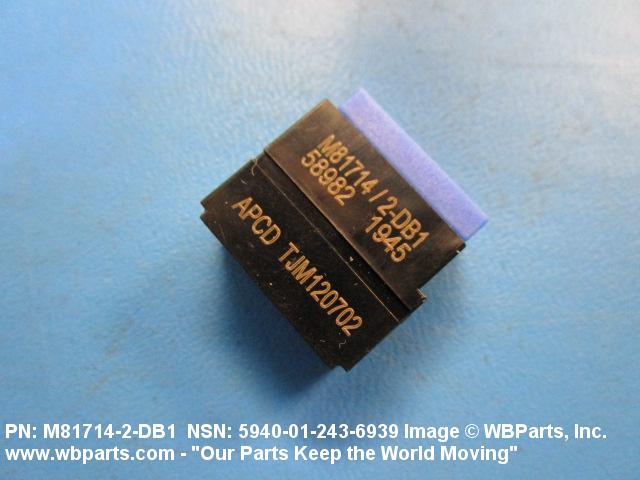

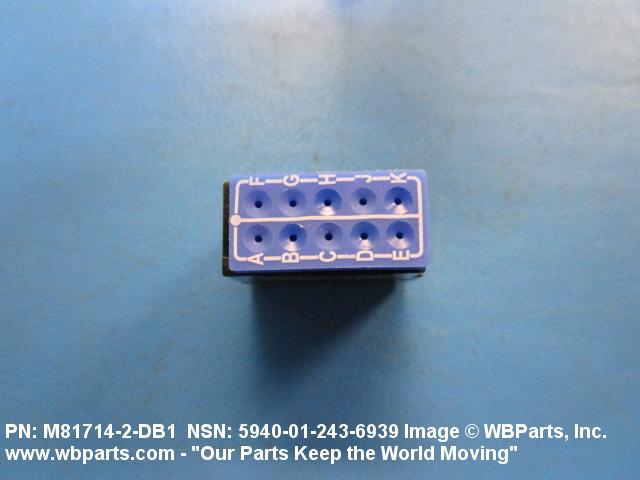

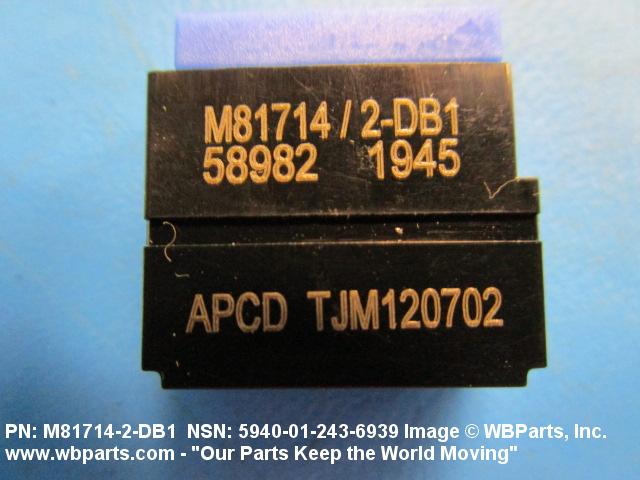

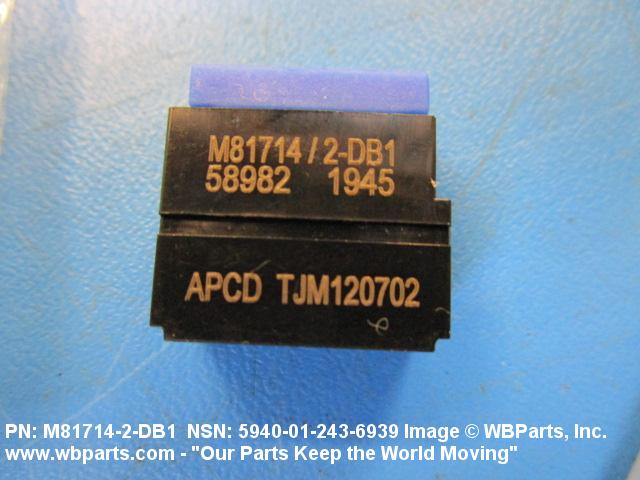

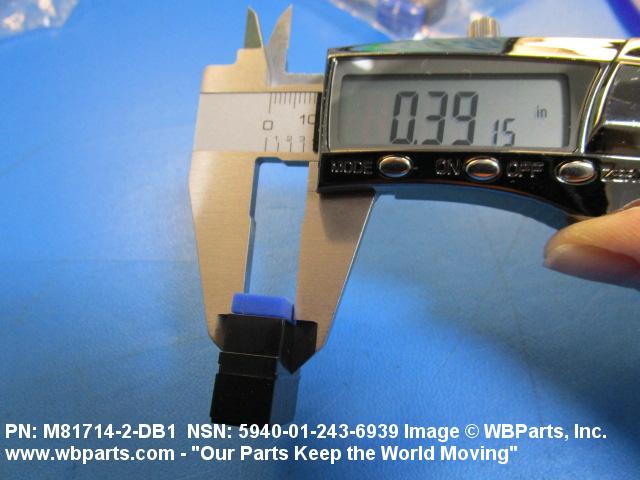

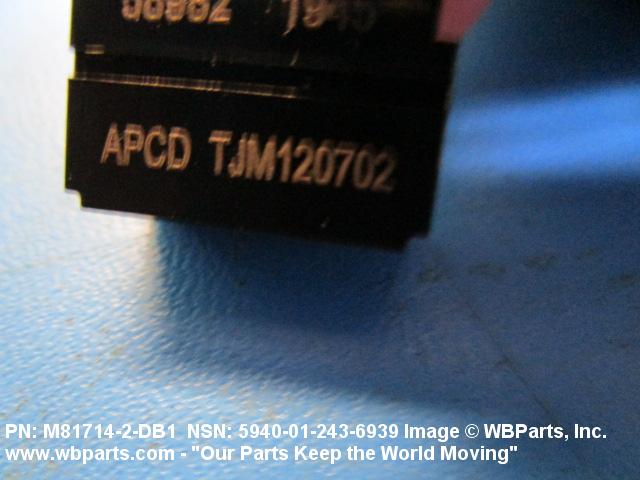

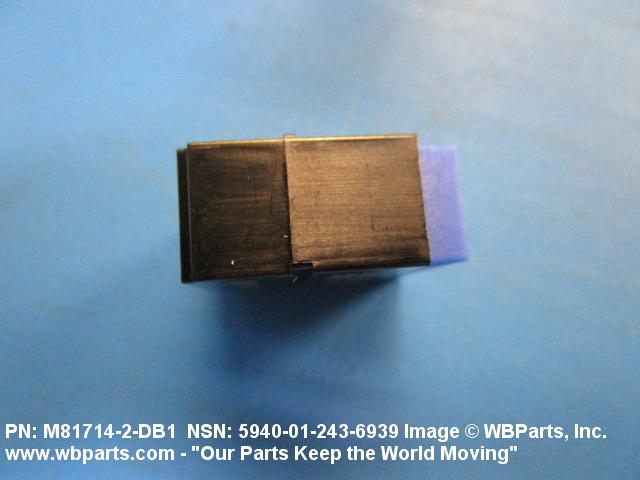

Drawings & Photos | NSN 5940-01-243-6939
Demand History | NSN 5940-01-243-6939
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M817142DB1 | 2024-02-23 | 133 | United States |
| M817142DB1 | 2023-12-20 | 1 | us |
| 5940-01-243-6939 | 2023-09-26 | 170 | DIBBS |
| 5940-01-243-6939 | 2023-09-18 | 170 | DIBBS |
| 5940-01-243-6939 | 2023-09-05 | 398 | DIBBS |
| 5940-01-243-6939 | 2023-08-21 | 398 | DIBBS |
| 5940-01-243-6939 | 2023-07-10 | 3 | United States |
| 5940-01-243-6939 | 2023-07-05 | 886 | DIBBS |
| 5940-01-243-6939 | 2023-06-27 | 886 | DIBBS |
| 5940-01-243-6939 | 2022-11-02 | 2 | United States |
| 5940-01-243-6939 | 2022-10-06 | 2 | United States |
| 5940-01-243-6939 | 2022-08-31 | 12 | US |
| M817142DB1 | 2022-06-28 | 1 | United States |
| 5940-01-243-6939 | 2021-09-07 | 2 | United States |
| 5940-01-243-6939 | 2020-03-27 | 50 | US |
| 5940-01-243-6939 | 2019-02-21 | 1 | DIBBS-RFPs |
| M817142DB1 | 2018-09-13 | 10 | us |
| M817142DB1 | 2011-07-21 | 10 | US |
| 5940-01-243-6939 | 2010-11-19 | 2 | CA |
| 5940-01-243-6939 | 2010-08-11 | 5912 | DIBBS |
| 5940-01-243-6939 | 2010-04-16 | 1260 | DIBBS |
| 5940-01-243-6939 | 2009-01-05 | 84 | DIBBS |
| 5940-01-243-6939 | 2008-02-22 | 806 | DIBBS |
| 5940-01-243-6939 | 2007-09-19 | 102 | DIBBS |
| 5940-01-243-6939 | 2007-07-13 | 1192 | DIBBS |
Cross Reference | NSN 5940-01-243-6939
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS81714 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81714/2 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81714/2-DB1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81714/2-DB1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-T-81714 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| TJM120702 | 58982 | AMPHENOL PCD, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-243-6939
Related Products | NSN 5940-01-243-6939
Technical Data | NSN 5940-01-243-6939
| Characteristic | Specifications |
|---|---|
| BLOCK TYPE | REGULAR |
| TERMINAL DESIGN | FEEDBACK |
| TERMINAL TYPE AND QUANTITY | 10 PIN |
| WIRE SIZE ACCOMMODATED | 24.000 AWG MINIMUM AND 20.000 AWG MAXIMUM |
| POLE QUANTITY | 10 |
| CURRENT TYPE | AC |
| VOLTAGE RATING | 300.0 VOLTS MINIMUM AND 600.0 VOLTS MAXIMUM |
| CURRENT RATING IN AMPS | 7.5 |
| OPERATING TEMP RANGE | -65.0 TO 200.0 DEG CELSIUS |
| MOUNTING METHOD | STACKING |

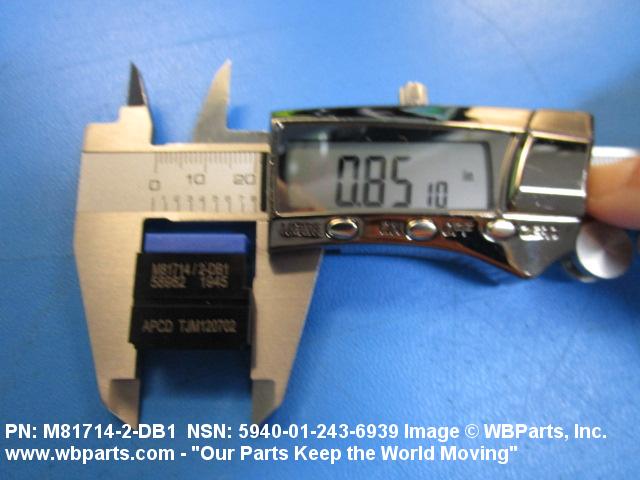

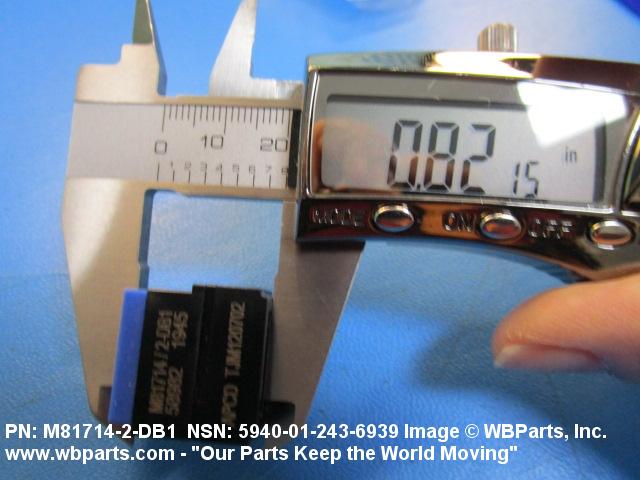

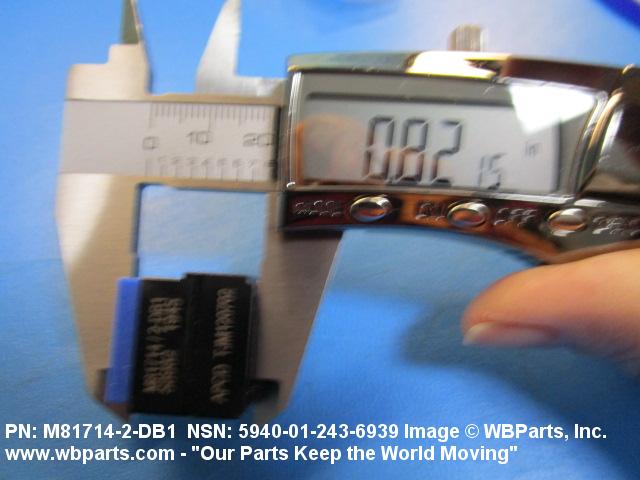

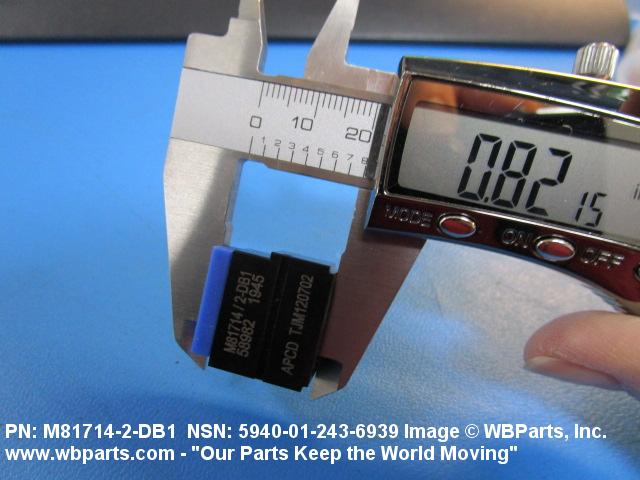

| OVERALL LENGTH | 0.850 INCHES NOMINAL |
