Product Details | QUICK DISCONNECT TERMINAL
5940-01-206-4291 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Part Alternates: 13006, 1607700, 7K9689, 5940-01-206-4291, 01-206-4291, 5940012064291, 012064291
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 APR 1985 | 01-206-4291 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
Drawings & Photos | NSN 5940-01-206-4291
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-206-4291
Related Products | NSN 5940-01-206-4291
Technical Data | NSN 5940-01-206-4291
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A59 SNAP |
| OVERALL LENGTH | 1.248 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 10 AWG |

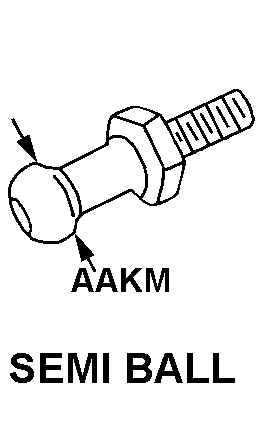

| QUICK DISCONNECT STYLE | G16 SEMI BALL |
