NSN 5940-01-206-4675 C50747051, C5074705-1, 01-206-4675
Product Details | TERMINAL BOARD
5940-01-206-4675 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: C50747051, C5074705-1, 5940-01-206-4675, 01-206-4675, 5940012064675, 012064675
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 APR 1985 | 01-206-4675 | 00404 ( TERMINAL BOARD ) |
Drawings & Photos | NSN 5940-01-206-4675
Cross Reference | NSN 5940-01-206-4675
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C5074705-1 | 57958 | SIGNALS WARFARE PROJECT MANAGER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-206-4675
Technical Data | NSN 5940-01-206-4675
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC BOARD |

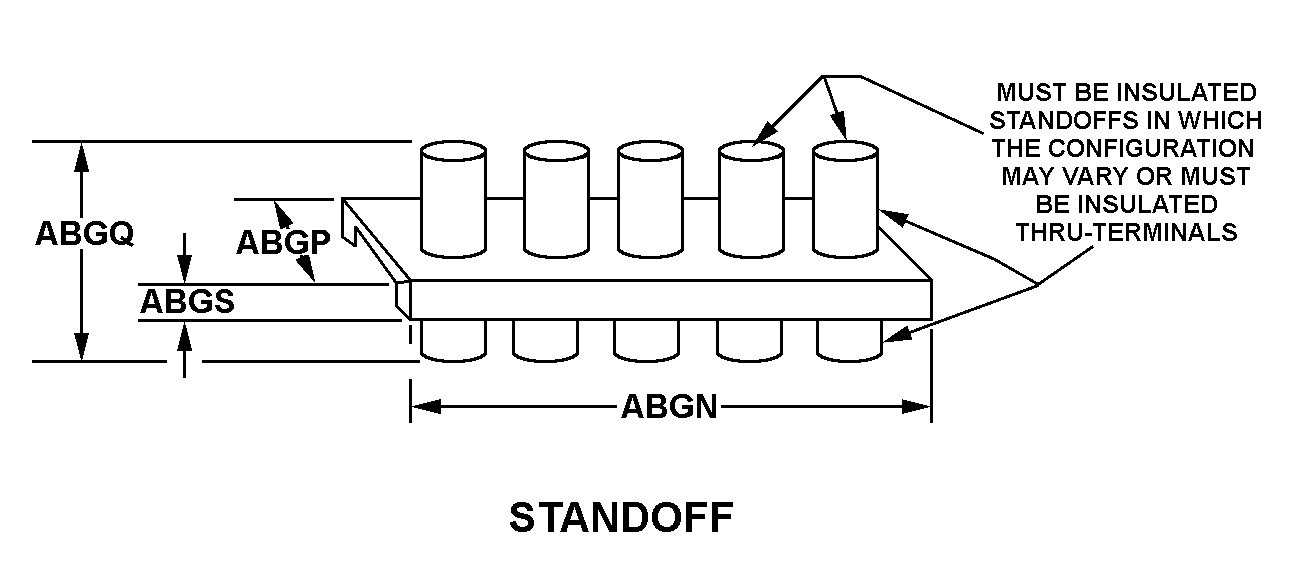

| BODY STYLE | A8 STANDOFF |
| BOARD OVERALL LENGTH | 3.000 INCHES |
| BOARD OVERALL WIDTH | 2.000 INCHES |
| BASE THICKNESS | 0.063 INCHES |
| TERMINAL PATTERN ARRANGEMENT | MULTI-ROW |
| TERMINAL ROW QUANTITY | 2 |
| DISTANCE BETWEEN TERMINAL ROW CENTERS | 1.700 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.350 INCHES |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 434 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 8 SINGLE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.156 INCHES |
| MANUFACTURERS CODE | 57958 |
| DESIGN CONTROL REFERENCE | C5074705-1 |
Restrictions/Controls & Freight Information | NSN 5940-01-206-4675
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CU | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
