NSN 5940-01-006-1427 MILP55149A, PB09NC04, 9766860004
Product Details | ELECTRICAL BINDING POST

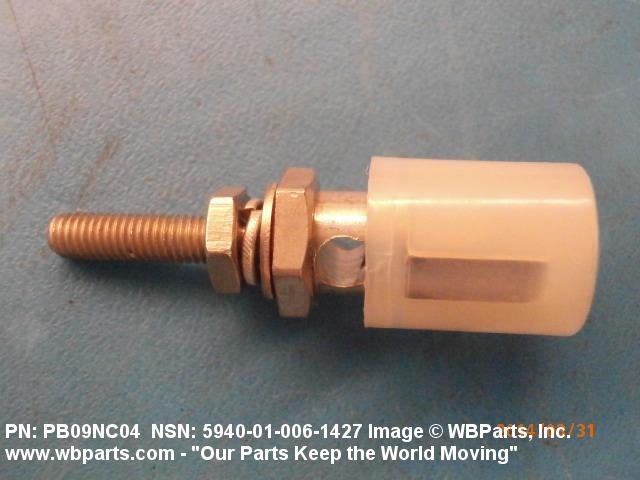

5940-01-006-1427 A metallic postlike terminal, insulated or uninsulated, which is mounted on a board, chassis, panel, or other similar supporting surface. It is designed for frequent manual connections and disconnections of at least one electrical conductor, such as a wire, alligator clip, or spade lug. It may have additional tip jack features for the acceptance of banana plugs, phone tips, and the like. It may also have provisions for permanently attaching an electrical conductor(s). For items which require all electrical conductors to be permanently attached (soldered, crimped, and the like), see TERMINAL, STUD. See also JACK, TIP.
Part Alternates: MILP55149A, PB09NC04, 9766860004, 9766-86-00-04, 213418, 5940-01-006-1427, 01-006-1427, 5940010061427, 010061427
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 JUL 1975 | 01-006-1427 | 00883 ( POST, BINDING, ELECTRICAL ) |

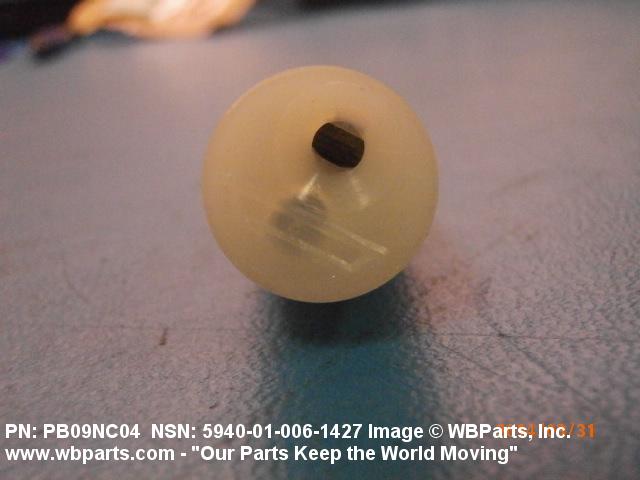

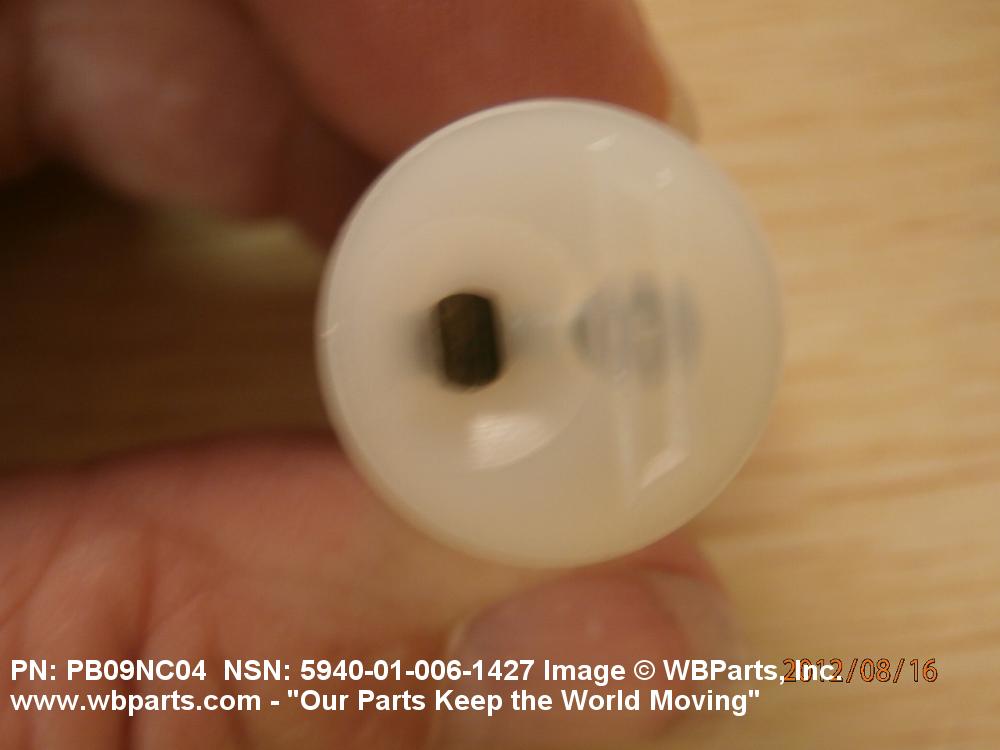

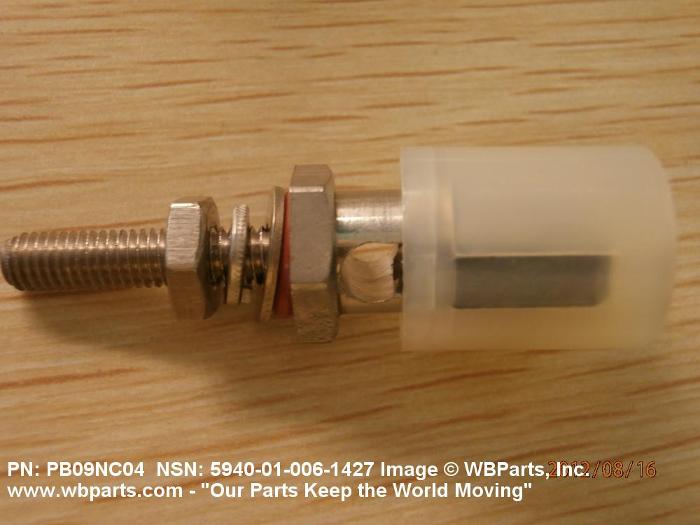

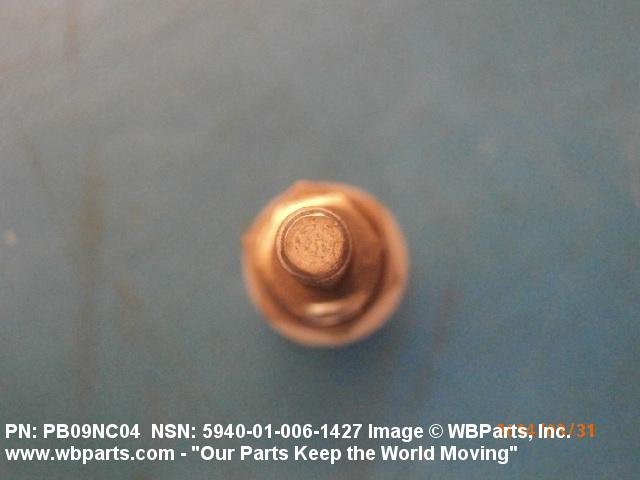

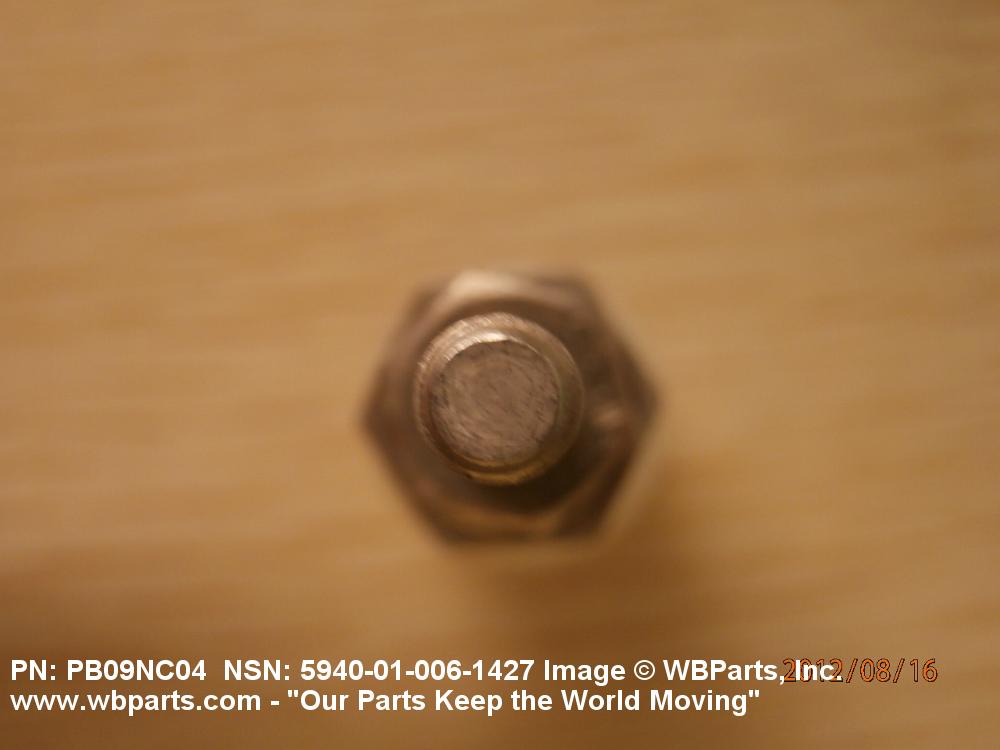

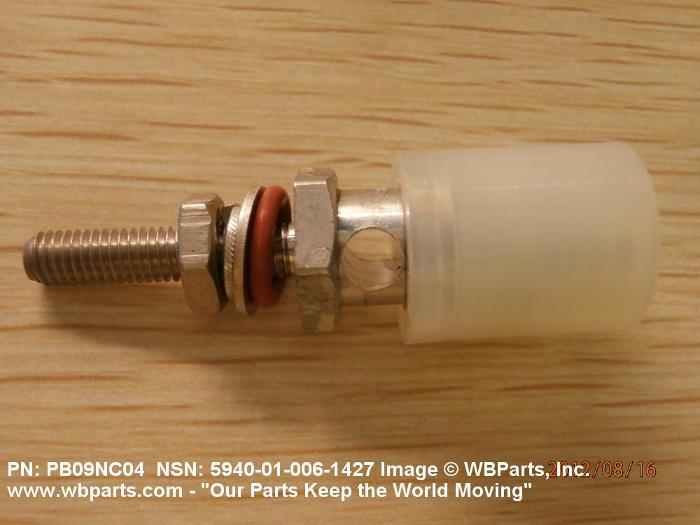

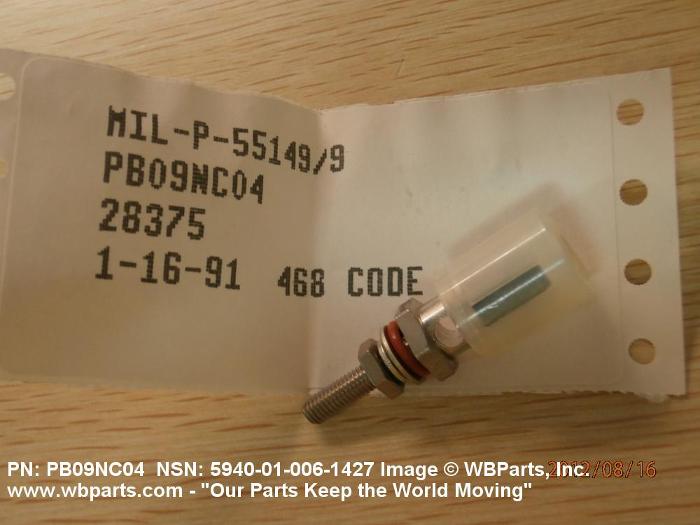

Drawings & Photos | NSN 5940-01-006-1427
Demand History | NSN 5940-01-006-1427
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-006-1427 | 2014-06-168 | 238 | MANUAL |
| PB09NC04 | 2014-06-168 | 238 | US |
| PB09NC04 | 2013-12-346 | 300 | United States |
| PB09NC04 | 2011-04-116 | 70 | United States |
Cross Reference | NSN 5940-01-006-1427
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-006-1427
Related Products | NSN 5940-01-006-1427
Technical Data | NSN 5940-01-006-1427
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A1 SINGLE POST, ROUND |

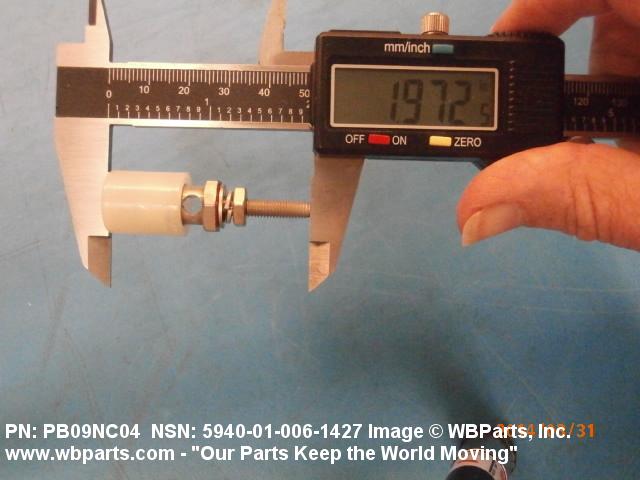

| OVERALL HEIGHT | 1.965 INCHES |

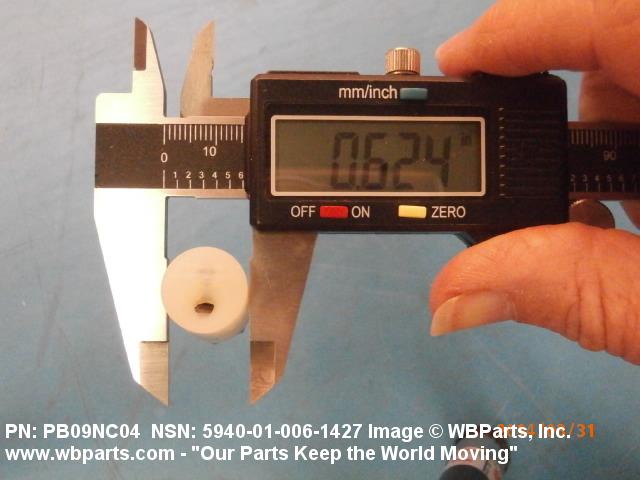

| OVERALL DIAMETER | 0.625 INCHES |
| MAXIMUM HEIGHT ABOVE MOUNTING SURFACE | 0.900 INCHES |
| CAP OUTSIDE DIAMETER | 0.625 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SPRING CAP W/HOLE SINGLE END |

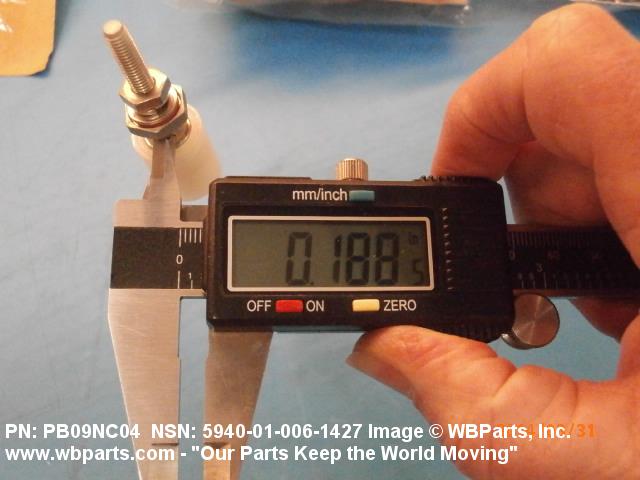

| WIRE HOLE DIAMETER | 0.189 INCHES SINGLE END |
| MOUNTING METHOD STYLE | D27 STUD |

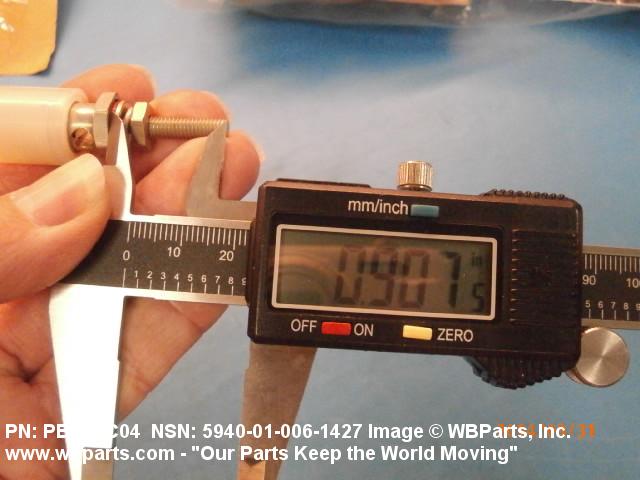

| THREAD LENGTH | 0.900 INCHES |
| MOUNTING THREAD SERIES | UNF |

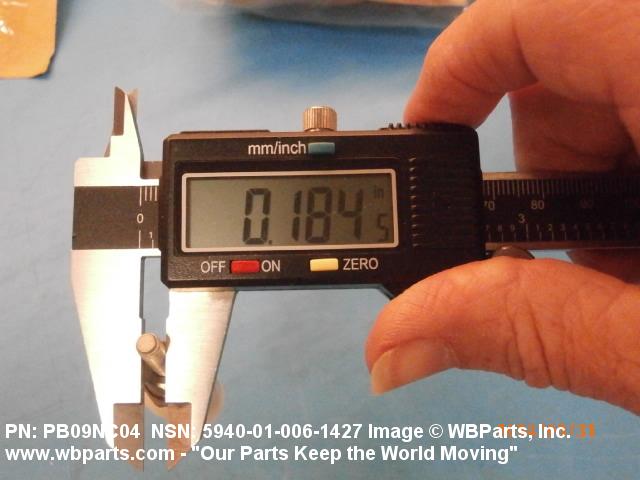

| MOUNTING THREAD DIAMETER | 0.190 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATED CAPS WITH UNINSULATED STUDS |
| IDENTIFICATION CODE COLOR | WHITE |

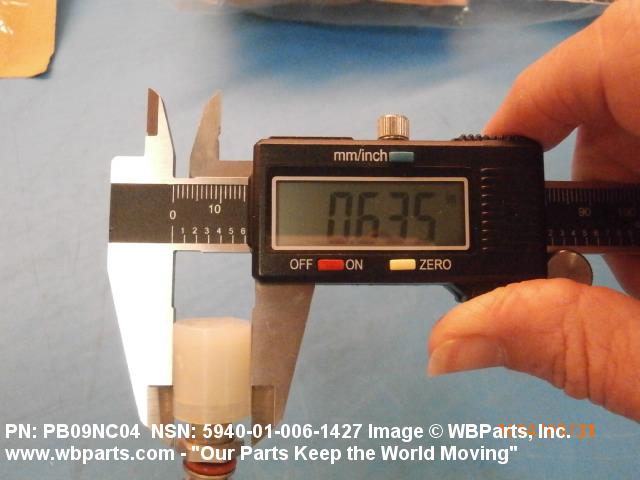

| MATERIAL | PLASTIC POLYAMIDE INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION |
| FEATURES PROVIDED | MOUNTING HARDWARE AND REMOVABLE CAP |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILP55149A |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | PB09NC04 |
