NSN 5940-00-907-9080 10946972, 00-907-9080, 009079080
Product Details | TERMINAL BOARD
5940-00-907-9080 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: 10946972, 5940-00-907-9080, 00-907-9080, 5940009079080, 009079080
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-907-9080 | 00404 ( TERMINAL BOARD ) |
Drawings & Photos | NSN 5940-00-907-9080
Cross Reference | NSN 5940-00-907-9080
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10946972 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-907-9080
Technical Data | NSN 5940-00-907-9080
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC DIALLYL PHTHALATE AND GLASS FIBER BOARD |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE MAI-60 MIL SPEC SINGLE MATERIAL RESPONSE BOARD |

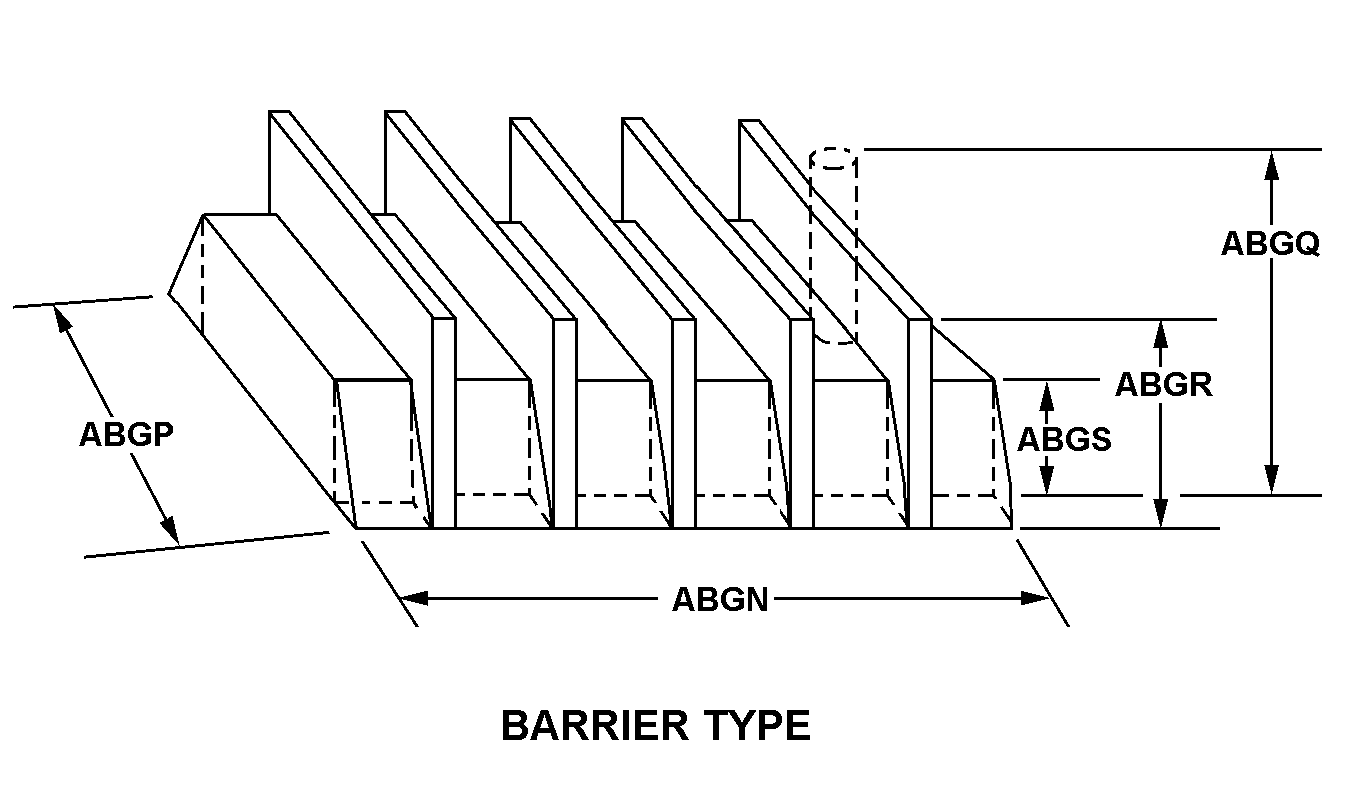

| BODY STYLE | A2 BARRIER TYPE |
| BOARD OVERALL LENGTH | 2.500 INCHES |
| BOARD OVERALL WIDTH | 0.688 INCHES |
| BOARD OVERALL HEIGHT | 0.406 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 0.406 INCHES |
| BASE THICKNESS | 0.250 INCHES |
| TERMINAL PATTERN ARRANGEMENT | MULTI-ROW |
| TERMINAL ROW QUANTITY | 2 |
| DISTANCE BETWEEN TERMINAL ROW CENTERS | 0.312 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.375 INCHES |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 857 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 5 SINGLE |
| TERMINAL CONNECTING LINK TYPE | 2 SINGLE |
| TERMINAL CONNECTING LINK QUANTITY | 5 SINGLE |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| TERMINAL FACILITY QUANTITY | 5 |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.250 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.312 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.188 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.141 INCHES |
| MOUNTING HOLE DIAMETER | 0.170 INCHES |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 10946972 |
