NSN 5940-00-907-9374 P4113H4, 9500975, 950097-5
Product Details | FEEDTHRU TERMINAL
5940-00-907-9374 A terminal designed to be mounted on a chassis or other partition, and having through connected wire mounting facilities. It may or may not be insulated. It is fabricated into a single item whose parts are not separable. For items whose parts are separable, see INSULATOR, FEEDTHRU.
Part Alternates: P4113H4, 9500975, 950097-5, 5940-00-907-9374, 00-907-9374, 5940009079374, 009079374
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-907-9374 | 34672 ( TERMINAL, FEEDTHRU ) |
Drawings & Photos | NSN 5940-00-907-9374
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-907-9374
Technical Data | NSN 5940-00-907-9374
| Characteristic | Specifications |
|---|---|

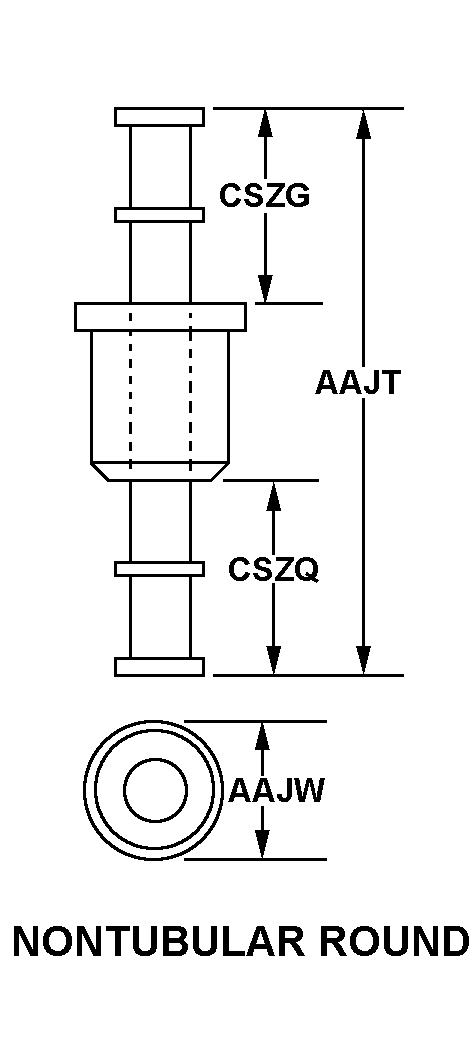

| BASIC SHAPE STYLE | A20 NONTUBULAR ROUND |
| OVERALL HEIGHT | 0.730 INCHES |
| OVERALL DIAMETER | 0.237 INCHES |
| MINOR BUSHING DIAMETER | 0.195 INCHES |
| MATERIAL | COPPER ALLOY CONDUCTOR ACCOMMODATION PLASTIC INSULATION |
| SURFACE TREATMENT | SILVER OR GOLD CONDUCTOR ACCOMMODATION SINGLE LAYER |
| III PRECIOUS MATERIAL | SILVER AND GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONDUCTOR ACCOMMODATION SILVER OR CONDUCTOR ACCOMMODATION GOLD |
| MANUFACTURERS CODE | 14798 |
| DESIGN CONTROL REFERENCE | P4113H4 |
Restrictions/Controls & Freight Information | NSN 5940-00-907-9374
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061260 | CABLE TERMINALS/BOXES/HOUSINGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
