NSN 5940-00-549-6033 BA98081, D102B, RC1279A
Product Details | GROUNDING METALLIC SHIELDED CABLE FERRULE
5940-00-549-6033 An item of one or more piece construction designed to be affixed to the outer, or shielding, conductor of CABLE (as modified) to simplify grounding of the outer conductor and/or to anchor the cable to prevent fraying or slipping. For items used with other than shielded cable, see FERRULE, ELECTRICAL CONDUCTOR.
Part Alternates: BA98081, D102B, RC1279A, RE49D685, 1050, 755565, 7602323, 8850479936, 8850-479936, 5940-00-549-6033, 00-549-6033, 5940005496033, 005496033
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-549-6033 | 35296 ( FERRULE, METALLIC SHIELDED CABLE, GROUNDING ) |

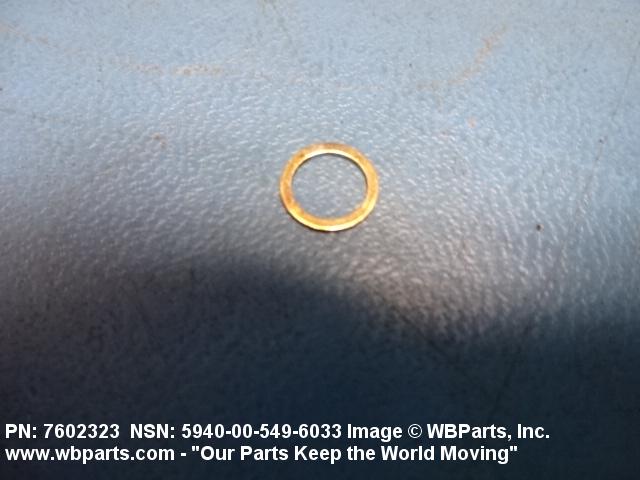

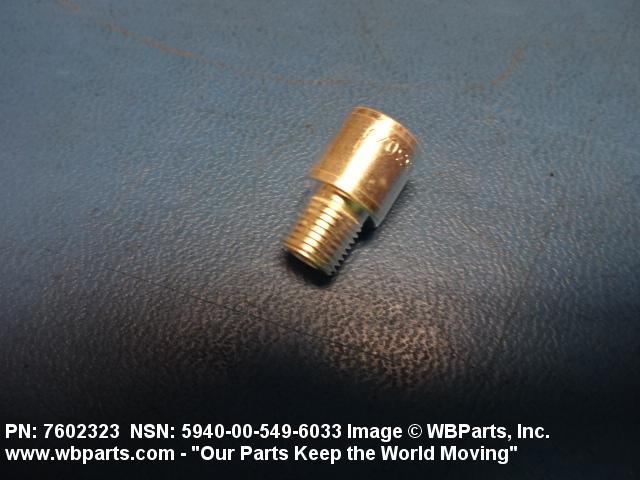

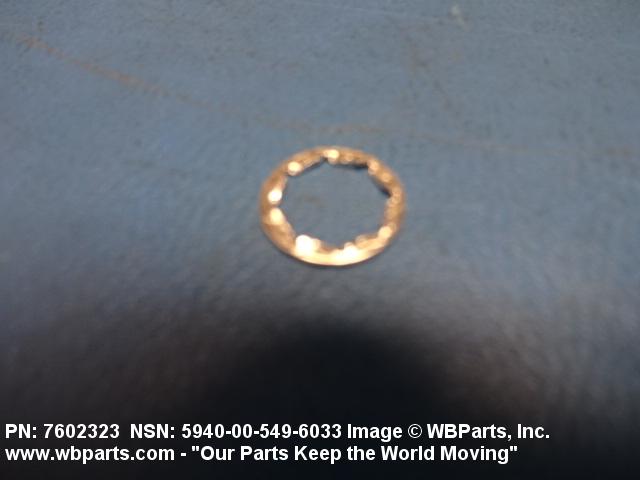

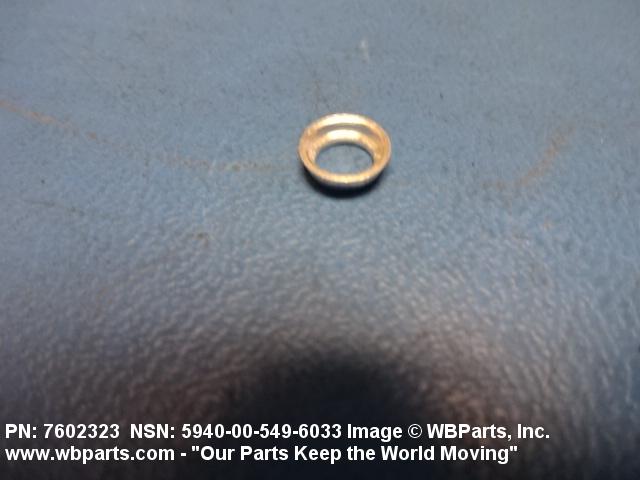

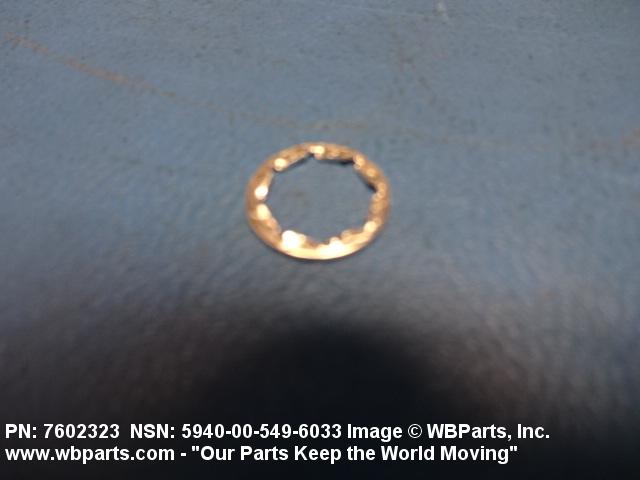

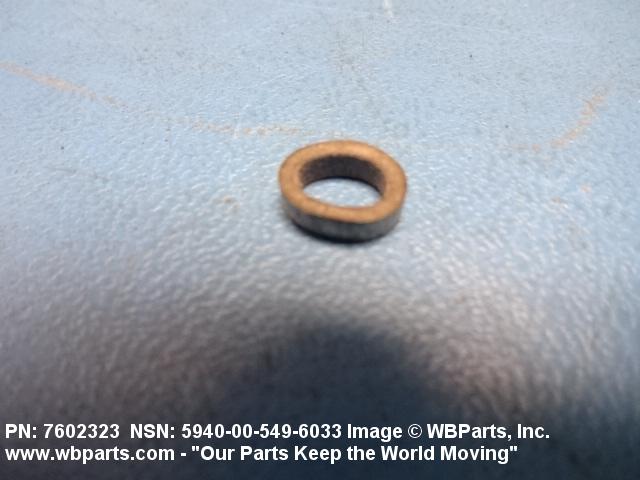

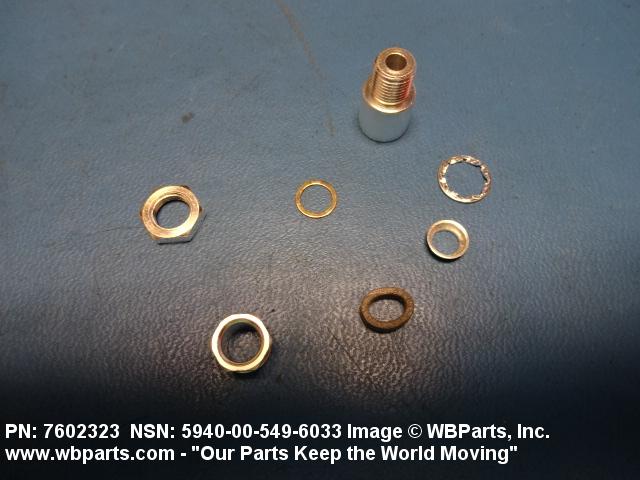

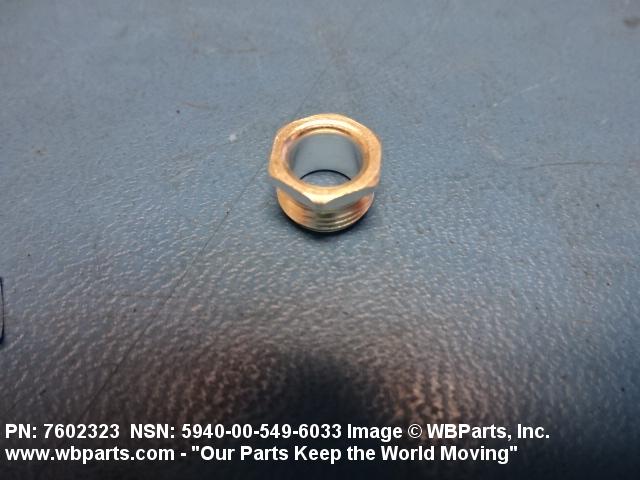

Drawings & Photos | NSN 5940-00-549-6033
Demand History | NSN 5940-00-549-6033
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-549-6033 | 2017-03-60 | 19 | United States |
| 5940-00-549-6033 | 2017-01-29 | 19 | DIBBS |
| 5940-00-549-6033 | 2017-01-24 | 20 | US |
| 5940-00-549-6033 | 2012-06-180 | 1 | DIBBS |
| 5940-00-549-6033 | 2012-06-166 | 40 | DIBBS |
| 5940-00-549-6033 | 2012-06-163 | 1 | DIBBS |
| 5940-00-549-6033 | 2011-06-157 | 1 | DIBBS |
| 5940-00-549-6033 | 2011-04-104 | 1 | DIBBS |
| 5940-00-549-6033 | 2011-04-102 | 40 | DIBBS |
| 5940-00-549-6033 | 2010-09-267 | 40 | DIBBS |
| 1050 | 2008-05-123 | 5 | US |
Cross Reference | NSN 5940-00-549-6033
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1050 | 30684 | AIRGAS SAFETY, INC. DBA AIRGAS |
| 755565 | 28528 | ITT INDUSTRIES INC ITT AEROSPACE COMMUNICATIONS |
| 755565 | 31550 | EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS |
| 7602323 | 19200 | US ARMY ARDEC RDECOM |
| 7602323 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 8850-479936 | 80049 | DEPARTMENT OF THE AIR FORCE |
| BA98081 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| D102B | 74868 | AMPHENOL CORPORATION |
| RC1279A | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| RE49D685 | 99993 | DEPARTMENT OF THE NAVY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-549-6033
Related Products | NSN 5940-00-549-6033
Technical Data | NSN 5940-00-549-6033
| Characteristic | Specifications |
|---|---|
| MOUNTING FACILITY | INCLUDED |
| MOUNTING TYPE | BUSHING |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLE AND FERRULE | ANY ACCEPTABLE |
| MOUNTING HOLE QUANTITY | 1 |
| MOUNTING HOLE DIAMETER | 0.258 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |
| MAJOR MOUNTING THREAD DIAMETER | 0.313 INCHES NOMINAL |
| OVERALL LENGTH | 0.813 INCHES NOMINAL |
| CABLE CONTROLLING AGENCY | JCENS |
| CABLE IDENTIFYING NUMBER | TYPE NO. RG-59/U AND RG-62/U |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 5940-00-549-6033
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061260 | CABLE TERMINALS/BOXES/HOUSINGS ETC |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-549-6033
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | Q | Avionics |
| Weapons Systems/End Item or Homogeneous Group | QE | Other Avionics |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
