NSN 5940-00-549-6040 P371199, 00-549-6040, 005496040
Product Details | STUD TERMINAL
5940-00-549-6040 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: P371199, 5940-00-549-6040, 00-549-6040, 5940005496040, 005496040
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-549-6040 | 00887 ( TERMINAL, STUD ) |
Drawings & Photos | NSN 5940-00-549-6040
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-549-6040
Technical Data | NSN 5940-00-549-6040
| Characteristic | Specifications |
|---|---|

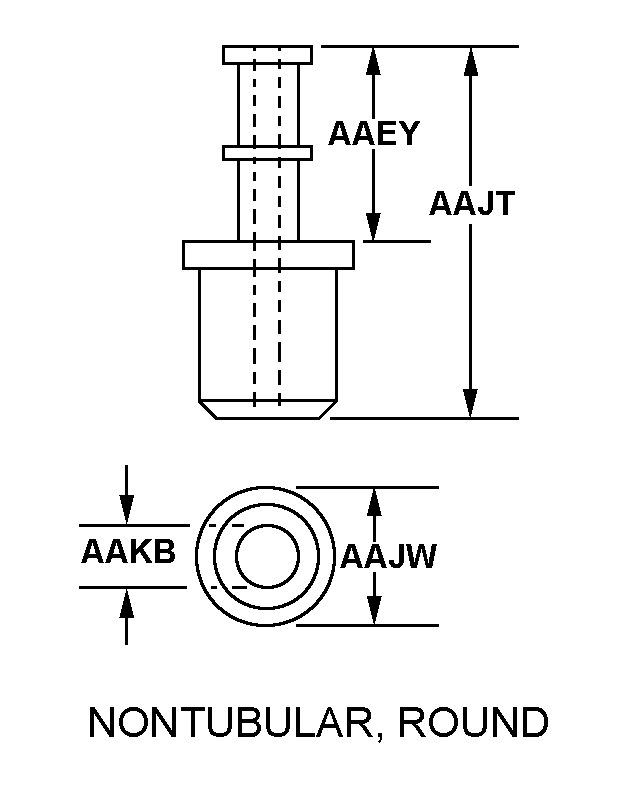

| BASIC SHAPE STYLE | A5A NONTUBULAR, ROUND |
| TERMINAL LENGTH | 0.219 INCHES |
| OVERALL HEIGHT | 0.562 INCHES |
| OVERALL DIAMETER | 0.406 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SLANT LUG W/ONE HOLE SINGLE END |
| LARGEST WIDTH | 0.125 INCHES SINGLE END |

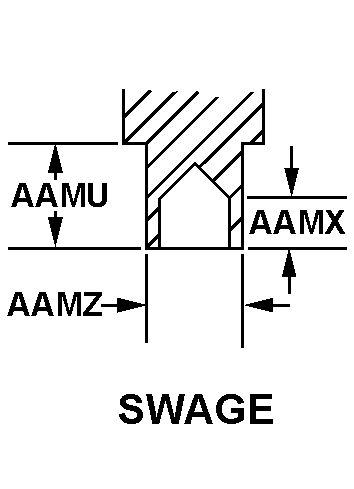

| MOUNTING METHOD STYLE | D33 SWAGE |
| MINOR BUSHING LENGTH | 0.062 INCHES |
| SWAGE DEPTH | 0.040 INCHES |
| SWAGE OUTSIDE DIAMETER | 0.281 INCHES |
| ELECTRICAL INSULATION FEATURE | STANDOFF INSULATION |
| IDENTIFICATION CODE COLOR | WHITE |
| MATERIAL | PLASTIC INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | TIN CONDUCTOR ACCOMMODATION SINGLE LAYER |
