Product Details | TERMINAL BOARD
5940-00-500-5381 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: A-A-59125/9, AA59125/9-3TB10, AA591259, AA5912593TB10, NGX1934820, NGX19348-20, MILT551649, MILT55164-9, 9000S650573214REVGPC5, 9000S6505-73214REVGPC5, 320-6903106 FIND AY-1-10, 3206903106FINDAY110, 3TB10, 3TB10F, 3TB10M, 4188500029, 4188500-029, 4188500-29, 5641015, 564101-5, 5940-00-500-5381, 00-500-5381, 5940005005381, 211024717, 005005381, 418850029
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-500-5381 | 00404 ( TERMINAL BOARD ) |

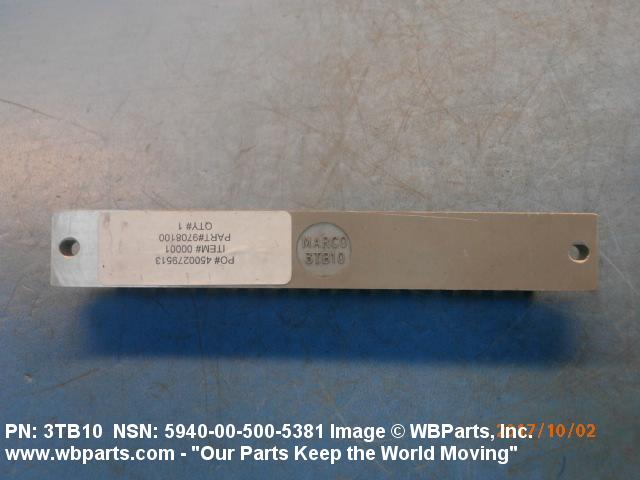

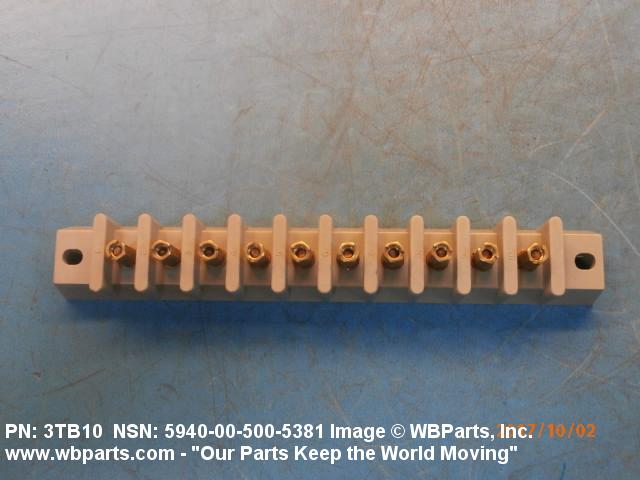

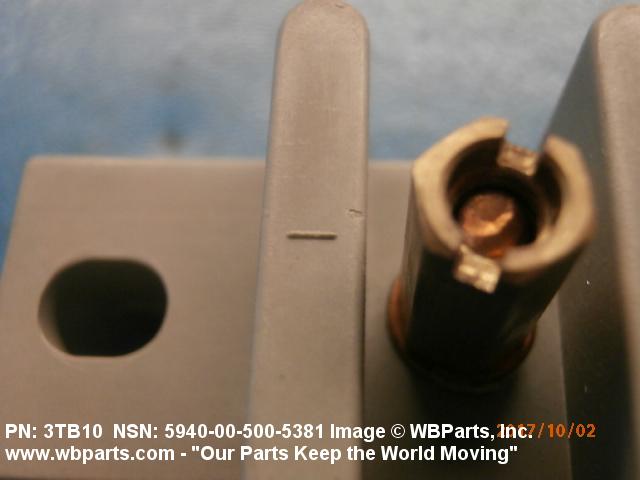

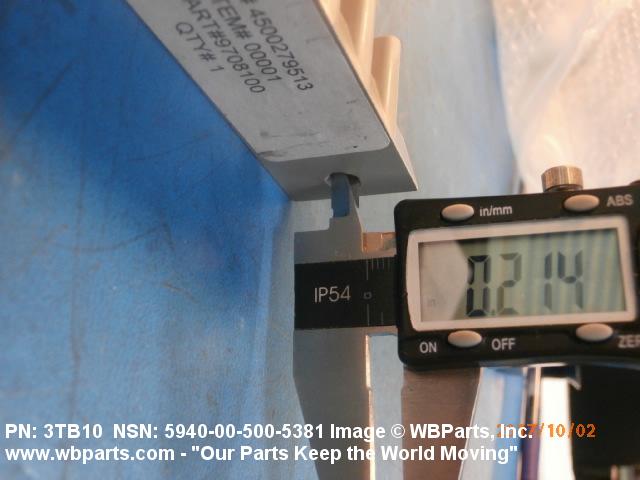

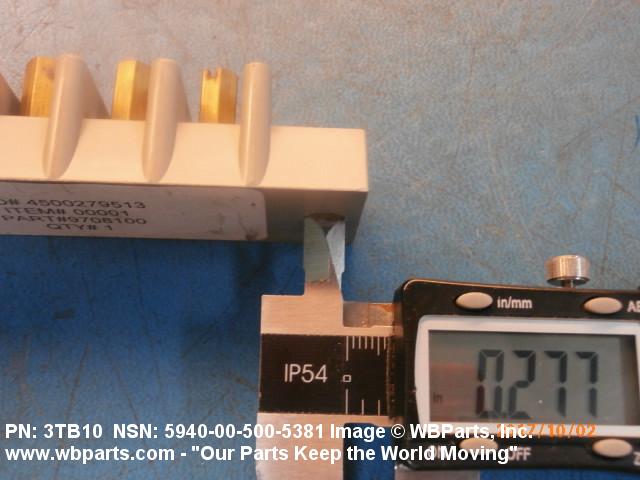

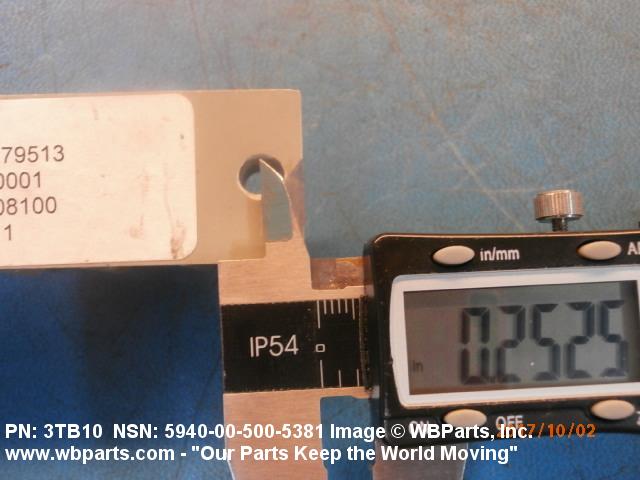

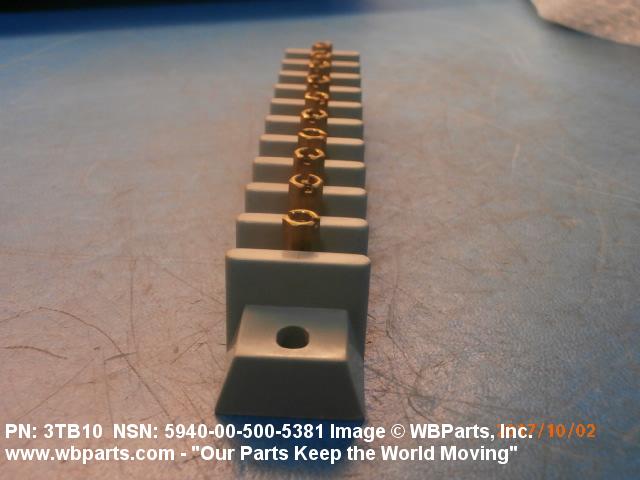

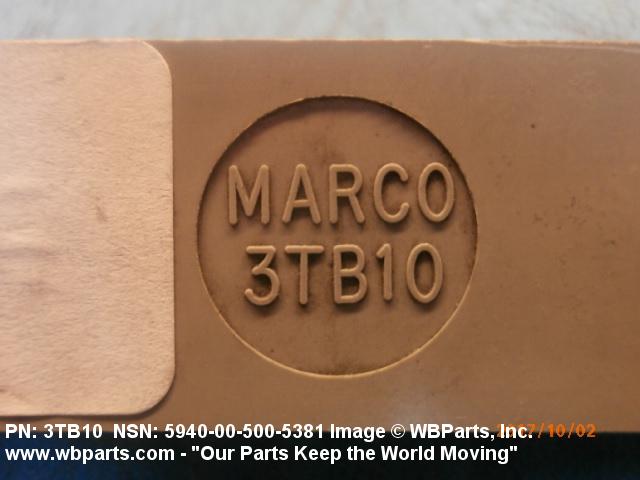

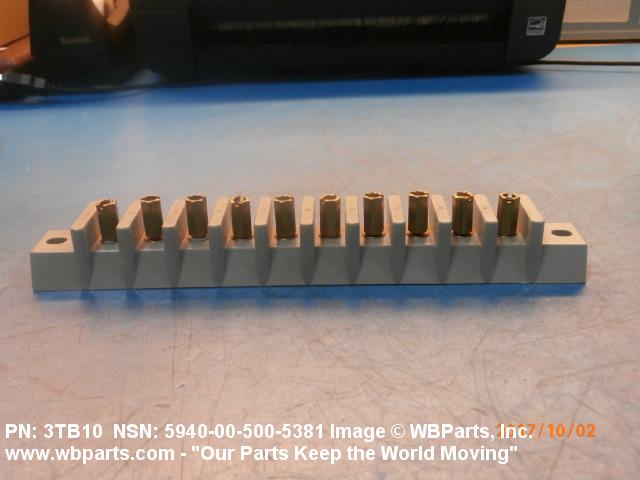

Drawings & Photos | NSN 5940-00-500-5381
Demand History | NSN 5940-00-500-5381
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-500-5381 | 2022-10-293 | 77 | DIBBS |
| 5940-00-500-5381 | 2017-08-226 | 6 | United States |
| 5940-00-500-5381 | 2015-03-69 | 105 | DIBBS |
| 5940-00-500-5381 | 2011-09-244 | 114 | DIBBS |
| 5940-00-500-5381 | 2009-01-26 | 96 | DIBBS |
| 5940-00-500-5381 | 2007-06-166 | 80 | DIBBS |
Cross Reference | NSN 5940-00-500-5381
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 211024717 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 320-6903106 FIND AY-1-10 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 3TB10 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 3TB10 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 3TB10 | 83330 | DIALIGHT CORPORATION |
| 3TB10F | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 3TB10M | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 4188500-029 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4188500-29 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 564101-5 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 9000S6505-73214REVGPC5 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| A-A-59125/9 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59125/9-3TB10 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| MILT55164-9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NGX19348-20 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-500-5381
Related Products | NSN 5940-00-500-5381
Technical Data | NSN 5940-00-500-5381

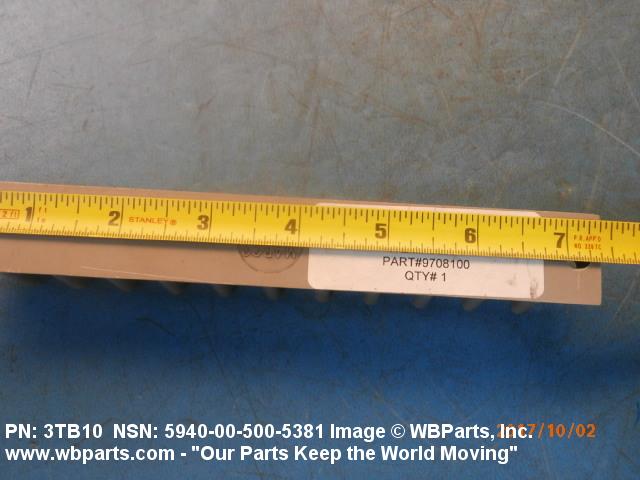

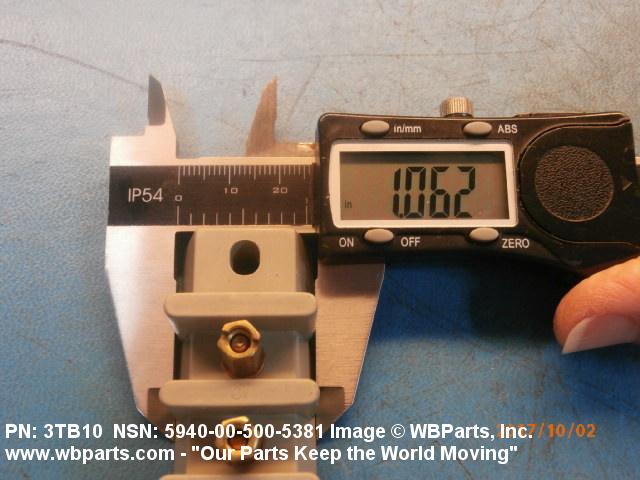

| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYESTER AND GLASS FIBER BOARD COPPER ALLOY 670 TERMINALS |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE MAI-60 MIL SPEC SINGLE MATERIAL RESPONSE BOARD QQ-B728,CLASS B FED SPEC SINGLE MATERIAL RESPONSE TERMINALS |
| BODY STYLE | A2 BARRIER TYPE |
| BOARD OVERALL LENGTH | 7.375 INCHES |
| BOARD OVERALL WIDTH | 1.062 INCHES |

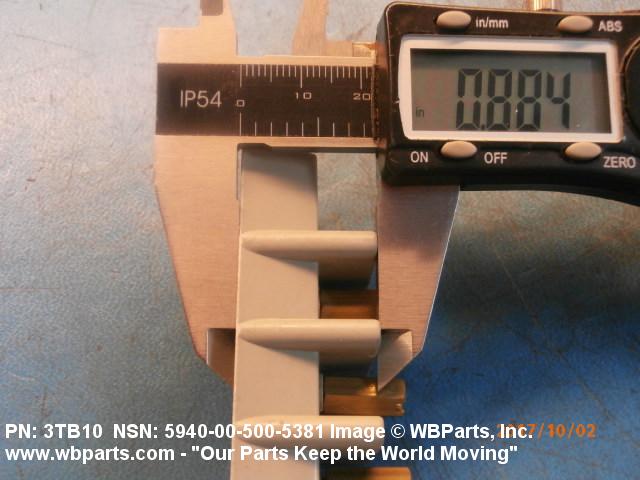

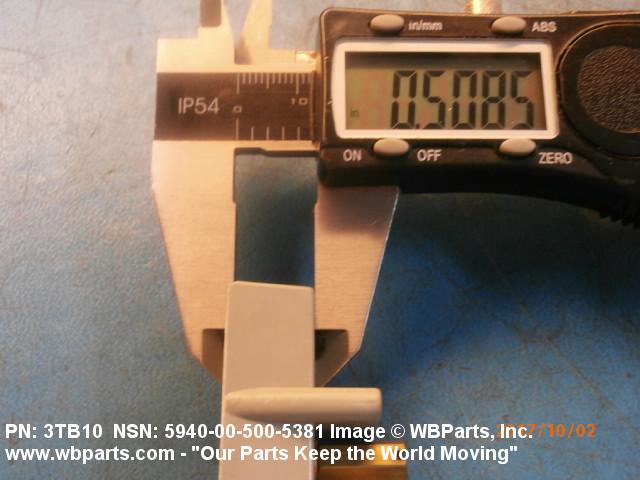

| BOARD OVERALL HEIGHT | 0.875 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 0.875 INCHES |
| BASE THICKNESS | 0.500 INCHES |
| TERMINAL PATTERN ARRANGEMENT | SINGLE ROW |
| TERMINAL ROW QUANTITY | 1 |

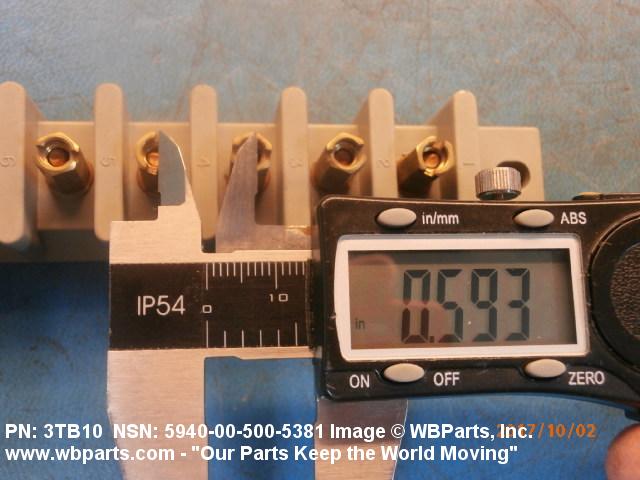

| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.594 INCHES |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 600 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 10 SINGLE |
| BOARD CONSTRUCTION | HOLLOW CONSTRUCTION WITHOUT INSULATED STRIP |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SLOT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 6.875 INCHES |

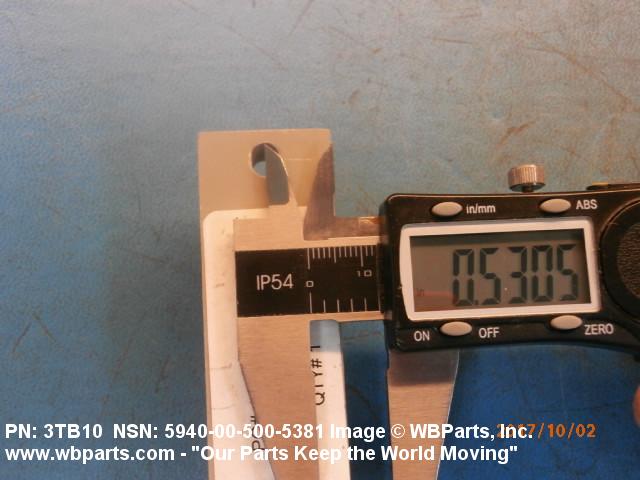

| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.531 INCHES |
