NSN 5940-00-500-5382 A-A-59125/18 , AA5912518, 13TB4
Product Details | TERMINAL BOARD
5940-00-500-5382 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: A-A-59125/18 , AA5912518, 13TB4 , 56410139, 564101-39, 7321439, 73214-39, 9000S650573214RREGPC39, 9000S6505-73214RREGPC39, 5940-00-500-5382, 00-500-5382, 5940005005382, 005005382
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-500-5382 | 00404 ( TERMINAL BOARD ) |
Drawings & Photos | NSN 5940-00-500-5382
Demand History | NSN 5940-00-500-5382
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-500-5382 | 2024-11-310 | 200 | DIBBS |
| 5940-00-500-5382 | 2023-10-288 | 36 | DIBBS |
| 5940-00-500-5382 | 2023-03-83 | 16 | DIBBS |
| 5940-00-500-5382 | 2023-03-68 | 16 | DIBBS |
| 5940-00-500-5382 | 2023-02-53 | 16 | DIBBS |
| 5940-00-500-5382 | 2022-12-335 | 36 | DIBBS |
| 5940-00-500-5382 | 2022-11-324 | 36 | DIBBS |
| 5940-00-500-5382 | 2020-02-34 | 53 | DIBBS |
| 5940-00-500-5382 | 2020-01-14 | 48 | DIBBS |
| 13TB4 | 2018-01-18 | 6 | United States |
| 13TB4 | 2018-01-12 | 6 | United States |
| 5940-00-500-5382 | 2017-06-170 | 47 | DIBBS |
| 5940-00-500-5382 | 2014-07-183 | 47 | DIBBS |
| 5940-00-500-5382 | 2014-06-152 | 46 | DIBBS |
| 5940-00-500-5382 | 2014-04-92 | 29 | DIBBS |
Cross Reference | NSN 5940-00-500-5382
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13TB4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 564101-39 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 73214-39 | 88223 | WICKES MFG CO ELECTRICAL DIV |
| 9000S6505-73214RREGPC39 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| A-A-59125/18 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-500-5382
Technical Data | NSN 5940-00-500-5382
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYESTER AND GLASS FIBER BOARD |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE MAI-60 MIL SPEC SINGLE MATERIAL RESPONSE BOARD |
| BODY STYLE | A1 BARRIER TYPE |

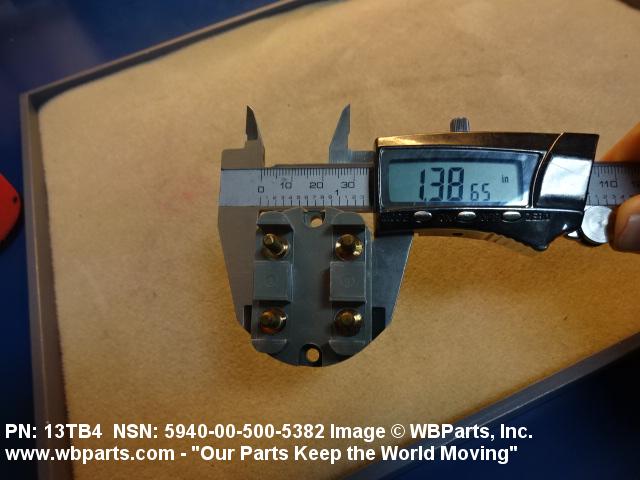

| BOARD OVERALL LENGTH | 1.875 INCHES |
| BOARD OVERALL WIDTH | 1.375 INCHES |

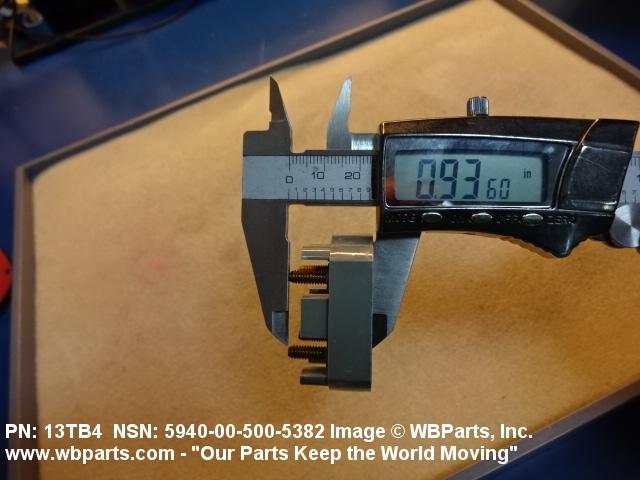

| BOARD OVERALL HEIGHT | 0.938 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 0.781 INCHES |
| BASE THICKNESS | 0.500 INCHES |
| TERMINAL PATTERN ARRANGEMENT | MULTI-ROW |
| TERMINAL ROW QUANTITY | 2 |
| DISTANCE BETWEEN TERMINAL ROW CENTERS | 0.844 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.844 INCHES |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 597 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 4 SINGLE |
| BOARD CONSTRUCTION | HOLLOW CONSTRUCTION WITHOUT INSULATED STRIP |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.625 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.750 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.100 INCHES |
| MOUNTING HOLE DIAMETER | 0.156 INCHES |
