NSN 5940-00-269-8532 X1784C, 77173, 7717-3
Product Details | STUD TERMINAL
5940-00-269-8532 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: X1784C, 77173, 7717-3, 91516096, 97840152, 978401-52, 104023, 10-402-3, 1131HC, 1131H-C, 1310C, 1310C1, 140-1784-03-01-00, 1510, 15253, 1525-3, 1630C, 1784C, 306-0330-00, 3060330000, 306-0330-000, 4540C1, 4540-C-1, 4S576C, 4S5-76C, 52785, 5278-5, 5940-00-269-8532, 00-269-8532, 5940002698532, 1401784030100, 306033000, 002698532
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-269-8532 | 00887 ( TERMINAL, STUD ) |
Drawings & Photos | NSN 5940-00-269-8532
Demand History | NSN 5940-00-269-8532
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1525-3 | 2012-06-172 | 1 | Netherlands |
Cross Reference | NSN 5940-00-269-8532
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-402-3 | 18310 | CONCORD ELECTRONICS, INC. |
| 1131H-C | 00866 | GOE ENGINEERING CO INC |
| 1310C | 81312 | WINCHESTER ELECTRONICS CORPORATION |
| 1310C1 | 81312 | WINCHESTER ELECTRONICS CORPORATION |
| 140-1784-03-01-00 | 71279 | INTERCONNECTION PRODUCTS INC |
| 1510 | 91833 | KEYSTONE ELECTRONICS CORP. |
| 1525-3 | 91833 | KEYSTONE ELECTRONICS CORP. |
| 1630C | 05610 | DALMORE CORP |
| 1784C | 71279 | INTERCONNECTION PRODUCTS INC |
| 306-0330-00 | 95104 | ALCATEL USA INC. DIV WTPG |
| 306-0330-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 306-0330-000 | 95104 | ALCATEL USA INC. DIV WTPG |
| 4540-C-1 | 52525 | LERCO DIV SPACE-LOK INC |
| 4S5-76C | 86577 | PRECISION METAL PRODUCTS CO |
| 5278-5 | 06540 | NEW HAVEN MFG CORP AMATOM ELECTRONIC HARDWARE DIV |
| 7717-3 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 91516096 | F6481 | THALES SA |
| 978401-52 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| X1784C | 71279 | INTERCONNECTION PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-269-8532
Technical Data | NSN 5940-00-269-8532
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A5 TUBULAR, ROUND |
| TERMINAL LENGTH | 0.282 INCHES |
| OVERALL HEIGHT | 0.485 INCHES |
| OVERALL DIAMETER | 0.156 INCHES |
| THRU-HOLE DIAMETER | 0.070 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | BIFURCATED U-FORK SINGLE END |
| SLOT WIDTH | 0.031 INCHES SINGLE END |
| SLOT DEPTH | 0.188 INCHES SINGLE END |
| LARGEST WIDTH | 0.156 INCHES SINGLE END |

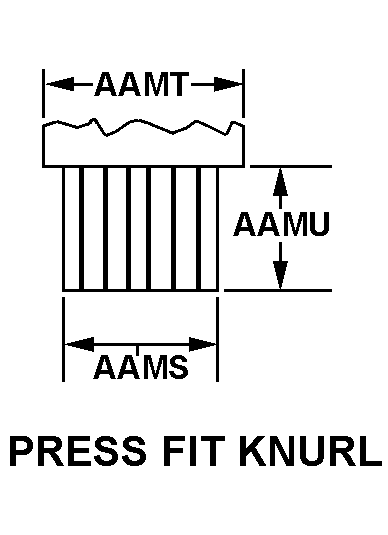

| MOUNTING METHOD STYLE | D39 PRESS FIT KNURL |
