NSN 5940-00-269-8745 1310D, 207997G2, 9891016004
Product Details | STUD TERMINAL
5940-00-269-8745 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: 1310D, 207997G2, 9891016004, 98-91016-004, 5940-00-269-8745, 00-269-8745, 5940002698745, 002698745
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-269-8745 | 00887 ( TERMINAL, STUD ) |
Drawings & Photos | NSN 5940-00-269-8745
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-269-8745
Technical Data | NSN 5940-00-269-8745
| Characteristic | Specifications |
|---|---|
| OVERALL HEIGHT | 0.475 INCHES |
| OVERALL DIAMETER | 0.156 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | BIFURCATED U-FORK SINGLE END |

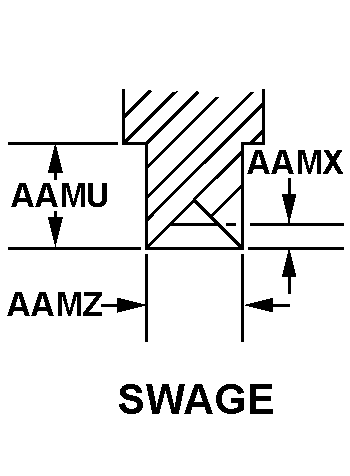

| MOUNTING METHOD STYLE | D34 SWAGE |
| SWAGE DEPTH | 0.165 INCHES |
| SWAGE OUTSIDE DIAMETER | 0.113 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | SILVER CONDUCTOR ACCOMMODATION SINGLE LAYER |
| SPECIAL FEATURES | BASIC SHAPE STYLE SINGLE ENDED TUBULAR |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONDUCTOR ACCOMMODATION SILVER |
Restrictions/Controls & Freight Information | NSN 5940-00-269-8745
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
