NSN 5940-00-113-8179 MS20536107, MS20536-107, MS25035107

Product Details | LUG TERMINAL

5940-00-113-8179 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.

Part Alternates: MS20536107, MS20536-107, MS25035107, MS25035-107, MS25036107, MS25036-107, MS25036107N, MS25036-107N, MS250366, MS25036-6, MS250367, MS25036-7, M7928149, M7928-1-49, AS25036, AS7928, BACT12AC7, BB83706, BB-837-06, BB83906, BB-839-06, C01506, C-01-506, C01506M, C-01-506M, SES14N7, SES14N-7, TE1213, TE12-13, XR1901S, XR1901SN, YAES14N7, MILT79281, MILT7928-1, FT805H1406C, FT805H14-06C, GT805H1406C, GT805H14-06C, JCM11066013, JCM-11066-013, PN146R, PN14-6R, R26351, R26351N, RB146, RB14-6, RB853, 4171304-65, 4188150208, 4188150-208, 41881509, 4188150-9, 42269123008, 42269-123-00-8, 423448, 438-5750098 FIND 128, 4385750098FIND128, 4692908 ITEM 41, 4692908ITEM41, 51861, 51864, 550062, 55006-2, 550068, 55006-8, 100988-001, 10132171 , 1626900P6, 2823434, 324526, 4113247, 411324-7, 4160024065, 416-0024-065, 00760, 02522802, 025-22802, 7418487P001, 7418487P016, 5940-00-113-8179, 00-113-8179, 5940001138179, 001138179, 100988001, 417130465

Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	25 SEP 1968	00-113-8179	00746 ( TERMINAL, LUG )

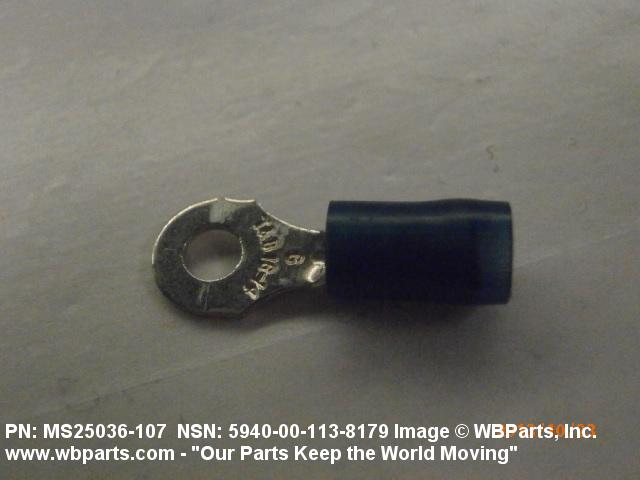

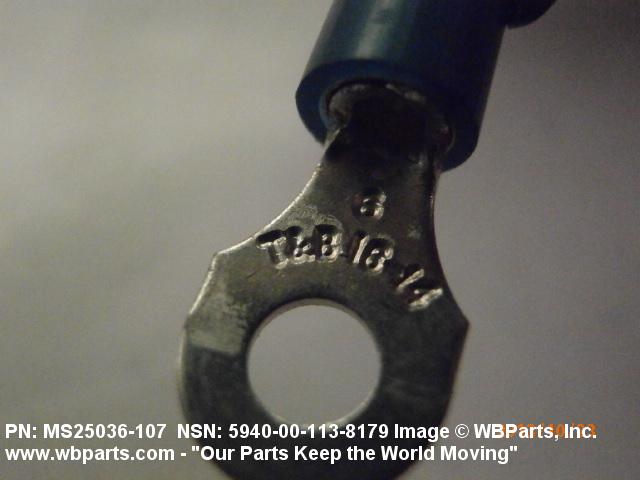

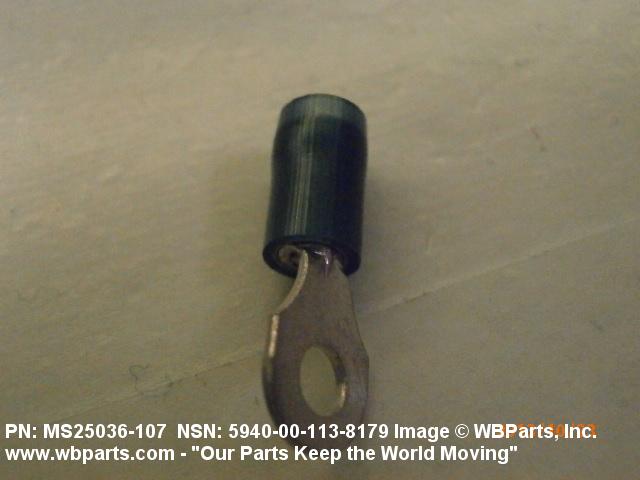

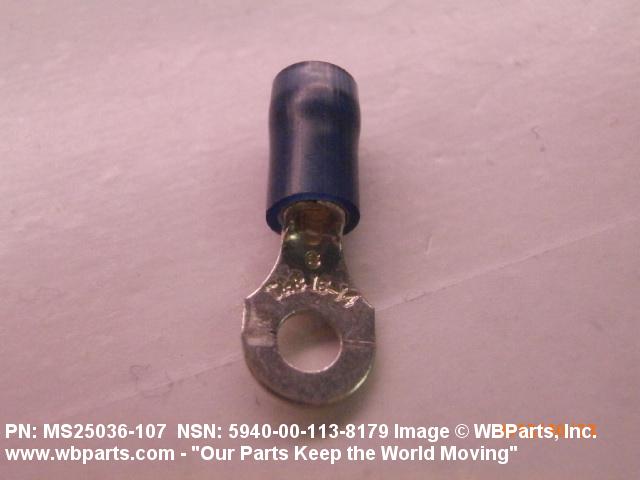

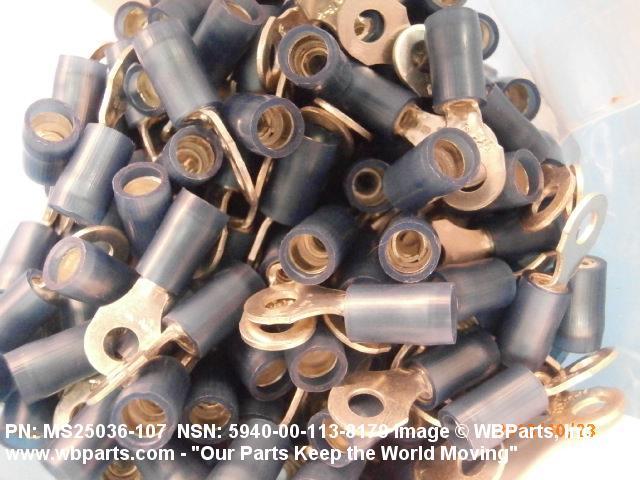

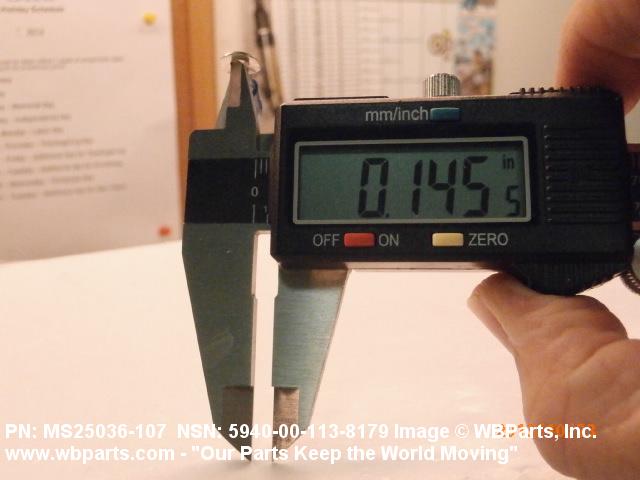

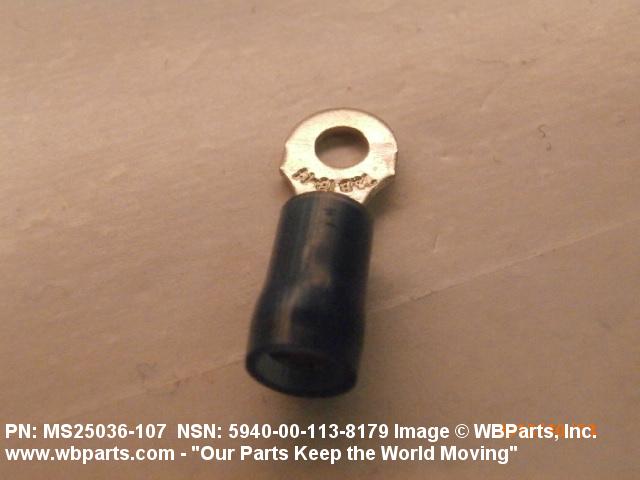

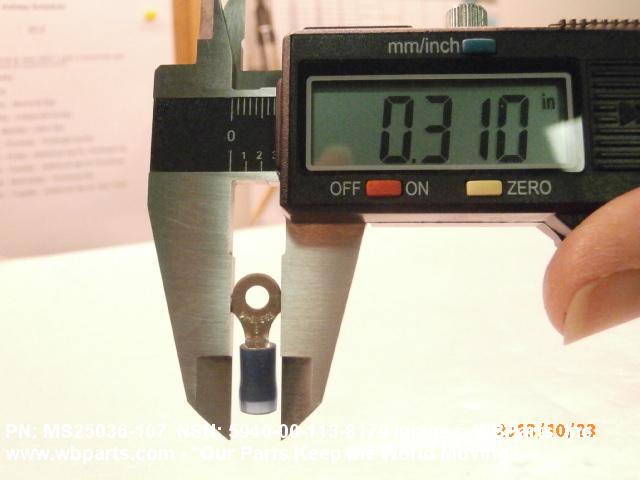

Drawings & Photos | NSN 5940-00-113-8179

Part Number	Request Date	QTY	Origin
MS25036107	2024-05-123	3	United States
AS25036	2022-09-265	5	Taiwan
MS25036107	2021-09-273	1800	Malaysia
MS25036107	2021-06-166	50	Malaysia
MS25036107	2021-05-145	1	MX
5940-00-113-8179	2021-02-49	450	GR
MS25036107	2021-02-34	60	United States
5940-00-113-8179	2020-11-314	560	IT
MS25036107	2020-09-269	16	US
MS25036107	2019-10-304	200	United States
MS25036107	2019-08-233	20	United States
5940-00-113-8179	2018-09-247	100	United States
5940-00-113-8179	2018-08-217	25299	DIBBS
AS25036	2018-07-183	1	Thailand
5940-00-113-8179	2018-03-89	50	US
MS25036107	2016-08-244	50	South Africa
MS25036107	2015-11-308	1	US
BACT12AC7	2015-06-176	50	Turkey
MS250366	2015-05-133	911	IN
MS25036107	2015-05-133	20	United States
MS25036-107	2015-04-91	320	Greece
MS250367	2015-01-07	50	Turkey
MS25036107	2014-11-324	1000	Ukraine
AS7928	2014-05-140	4	United States
MS25036107	2014-04-93	5	UM
5940-00-113-8179	2014-01-07	800	IL
5940-00-113-8179	2013-10-281	400	United States
5940-00-113-8179	2013-10-280	400	United States
BACT12AC7	2012-11-334	100	United States
BACT12AC7	2012-11-325	100	CN
MS25036107	2012-10-279	49	United States
MS25036107	2012-10-279	221	United States
BACT12AC7	2012-07-212	2	US
5940-00-113-8179	2011-07-201	30	MANUAL
Ms20536-107	2011-06-178	100	United States
MS25036107	2011-06-175	12	United States
M7928149	2010-10-285	300	Australia
5940-00-113-8179	2010-10-280	190	AU
BACT12AC7	2010-08-232	10	US
MS25036107	2010-08-224	180	Brazil
5940-00-113-8179	2010-08-223	50	United States
5940-00-113-8179	2010-06-165	2	US
5940-00-113-8179	2010-06-158	500	United States
5940-00-113-8179	2010-05-123	12	United States
5940-00-113-8179	2010-05-123	12	United States
5940-00-113-8179	2010-04-119	12	United States
5940-00-113-8179	2009-10-279	462	DIBBS
5940-00-113-8179	2009-06-166	493	DIBBS
BACT12AC7	2006-08-216	30	US
5940-00-113-8179	2006-02-47	250	Malaysia

Cross Reference | NSN 5940-00-113-8179

Part Number	Cage Code	Manufacturer
00760	1BZD4	TRU HITCH INC
025-22802	66935	YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS
100988-001	56200	TYMSHARE INC COMPUTER SUPPORT SERVICES DIV
1626900P6	53711	NAVAL SEA SYSTEMS COMMAND
2823434	001JK	EMBRAER S/A
2823434	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
324526	2H631	TYCO ELECTRONICS CORPORATION DBA TYCO ELECTRONICS
411324-7	96214	RAYTHEON COMPANY DBA RAYTHEON
416-0024-065	94756	BOEING COMPANY, THE DBA BOEING
4171304-65	05869	RAYTHEON COMPANY DBA RAYTHEON
4188150-208	05869	RAYTHEON COMPANY DBA RAYTHEON
4188150-9	05869	RAYTHEON COMPANY DBA RAYTHEON
42269-123-00-8	K4556	BRITISH AEROSPACE DEFENCE SYSTEMS LTD T/A BAE SYSTEMS
42269-123-00-8	KC1M9	BAE SYSTEMS MARITIME SERVICESLIMITED
423448	17657	DICTAPHONE CORPORATION
438-5750098 FIND 128	50079	TEXTRON INC. DBA TEXTRON SYSTEMS MARINE & LAND
4692908 ITEM 41	12934	NAVAL AIR WARFARE CENTER WEAPONS DIV
51861	00779	TYCO ELECTRONICS CORPORATION
51864	00779	TYCO ELECTRONICS CORPORATION
51864	D8512	TYCO ELECTRONICS AMP GMBH
55006-2	00779	TYCO ELECTRONICS CORPORATION
55006-8	00779	TYCO ELECTRONICS CORPORATION
7418487P001	03538	LOCKHEED MARTIN CORPORATION DIV MST
7418487P001	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
7418487P016	03538	LOCKHEED MARTIN CORPORATION DIV MST
AS25036	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS7928	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BACT12AC7	00779	TYCO ELECTRONICS CORPORATION
BB-837-06	98410	MOLEX-ETC INC SUB OF MOLEX INC
BB-839-06	98410	MOLEX-ETC INC SUB OF MOLEX INC
C-01-506	75037	MINNESOTA MINING AND MFG CO 3M COMPANY
C-01-506M	75037	MINNESOTA MINING AND MFG CO 3M COMPANY
FT805H14-06C	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
GT805H14-06C	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
JCM-11066-013	58905	STRIKE WEAPONS AND UNMANNED AVIATION
M7928-1-49	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILT7928-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS20536-107	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25035-107	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25036-107	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS25036-107	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25036-107N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25036-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25036-7	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PN14-6R	06383	PANDUIT CORP. DBA PANDUIT
R26351	14726	ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH -
R26351N	14726	ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH -
RB14-6	56501	THOMAS & BETTS CORPORATION
RB853	56501	THOMAS & BETTS CORPORATION
SES14N-7	09922	SOURIAU USA, INC.
TE12-13	08748	ELDEC CORPORATION DBA CRANE AEROSPACE & ELECTRONICS
XR1901S	14726	ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH -
XR1901SN	14726	ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH -
YAES14N7	09922	SOURIAU USA, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5940-00-113-8179

Compare

Related Products | NSN 5940-00-113-8179

5940-00-113-8183, 5940-00-113-8184, 5940-00-113-8185, 5940-00-113-8190, 5940-00-113-8191

Technical Data | NSN 5940-00-113-8179

Characteristic	Specifications
BASIC SHAPE STYLE	A24 CRIMP

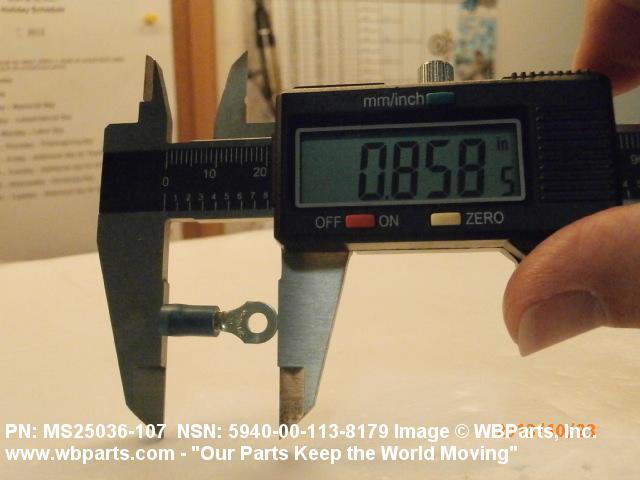

OVERALL LENGTH	0.910 INCHES

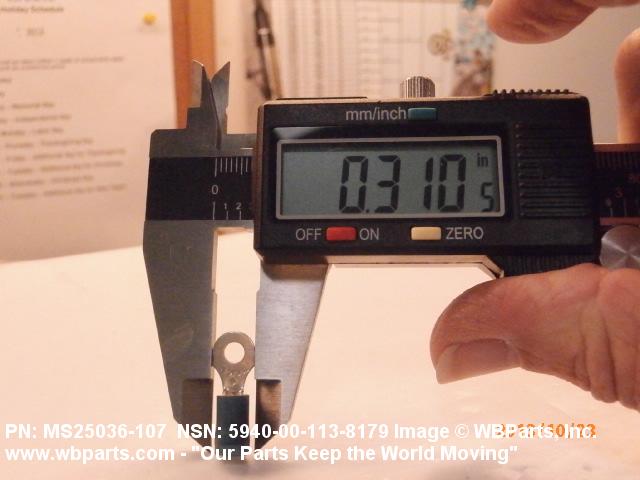

OVERALL WIDTH	0.312 INCHES

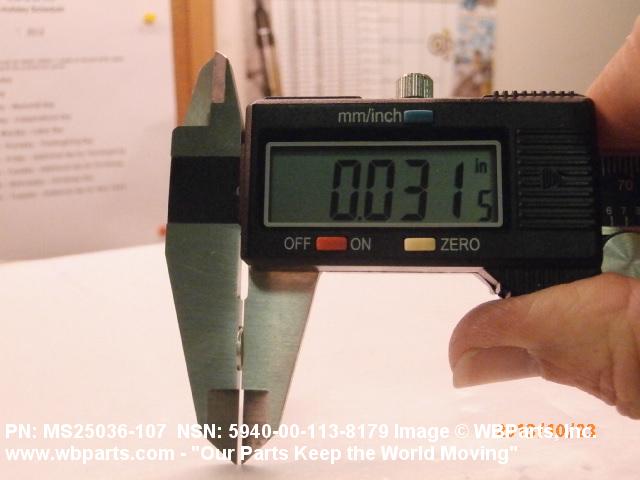

MATERIAL THICKNESS	0.032 INCHES
CONDUCTOR ACCOMMODATION TYPE	RECESSED BARREL SINGLE END
MAXIMUM CONDUCTOR SIZE ACCOMMODATED	14 AWG
MOUNTING METHOD STYLE	D14 RING
MOUNTING HOLE DIAMETER	0.147 INCHES
MOUNTING TONGUE WIDTH	0.312 INCHES
MOUNTING FACILITY THICKNESS	0.032 INCHES
ELECTRICAL INSULATION FEATURE	INSULATING SLEEVE
IDENTIFICATION CODE COLOR	BLUE
MATERIAL	PLASTIC POLYAMIDE OR PLASTIC VINYL INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION
SURFACE TREATMENT	TIN OVERALL EXCEPT INSULATION SINGLE LAYER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-T-10727 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSULATION SINGLE LAYER
III PART NAME ASSIGNED BY CONTROLLING AGENCY	TERMINAL LUG, TYPE II, CLASS 1
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS20536-107

Restrictions/Controls & Freight Information | NSN 5940-00-113-8179

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5940-00-113-8179

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
