NSN 5940-00-113-8191 MS25036127, MS25036-127, AS7928
Product Details | LUG TERMINAL
5940-00-113-8191 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: MS25036127, MS25036-127, AS7928, B8103B, B8103BN, BACT12AC27, SAE AS7928, SAEAS7928, YAEV2CL, R8103BF, RG9731, G77538, G-775-38, GT805P26, GT805P2-6, MILT7928, MIL-T-7928, 10326700 , 323117, 324103, 8822119, 88-22119 , 88221194, 8822119-4 , 5940-00-113-8191, 00-113-8191, 5940001138191, 001138191
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 OCT 1968 | 00-113-8191 | 00746 ( TERMINAL, LUG ) |

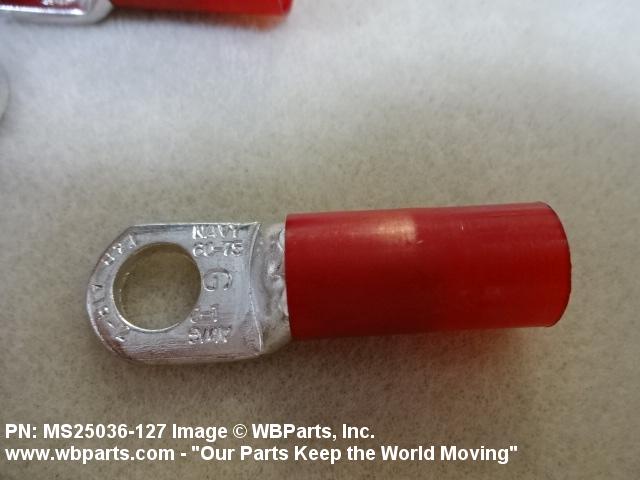

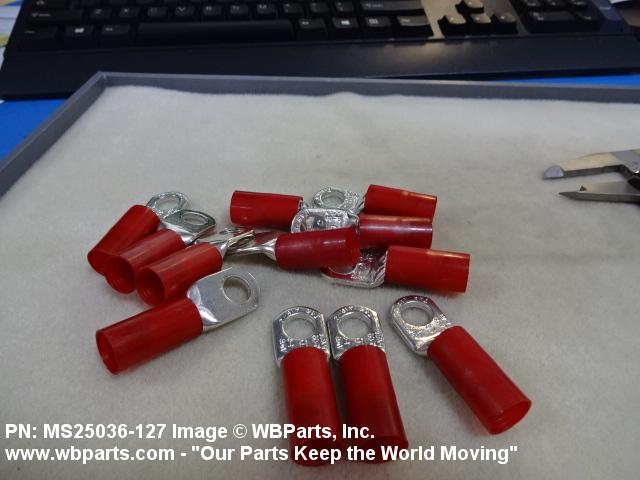

Drawings & Photos | NSN 5940-00-113-8191
Demand History | NSN 5940-00-113-8191
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-113-8191 | 2022-09-245 | 100 | South Korea |
| 5940-00-113-8191 | 2018-08-226 | 100 | ZA |
| MS25036127 | 2017-11-332 | 12 | US |
| MS25036-127 | 2015-06-174 | 6 | Greece |
| AS7928 | 2014-05-140 | 4 | United States |
| MS25036127 | 2013-11-308 | 2 | United States |
| MS25036127 | 2010-07-200 | 100 | CN |
| 5940-00-113-8191 | 2010-05-137 | 100 | United States |
| 5940-00-113-8191 | 2009-08-238 | 67 | DIBBS |
| MILT7928 | 2008-07-191 | 12 | US |
| 5940-00-113-8191 | 2007-02-36 | 40 | South Korea |
Cross Reference | NSN 5940-00-113-8191
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 323117 | 00779 | TYCO ELECTRONICS CORPORATION |
| 324103 | 00779 | TYCO ELECTRONICS CORPORATION |
| 88-22119 | 30554 | DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER |
| 8822119-4 | 30554 | DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER |
| AS7928 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| B8103B | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| B8103BN | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| BACT12AC27 | 81205 | THE BOEING COMPANY DBA BOEING |
| G-775-38 | 98410 | MOLEX-ETC INC SUB OF MOLEX INC |
| GT805P2-6 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| MIL-T-7928 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25036-127 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| R8103BF | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| RG9731 | 56501 | THOMAS & BETTS CORPORATION |
| SAE AS7928 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| YAEV2CL | 09922 | SOURIAU USA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-113-8191
Related Products | NSN 5940-00-113-8191
Technical Data | NSN 5940-00-113-8191
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A24 CRIMP |

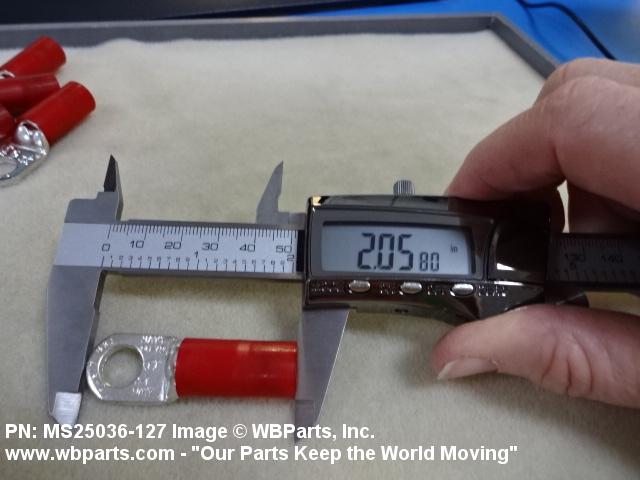

| OVERALL LENGTH | 2.069 INCHES |

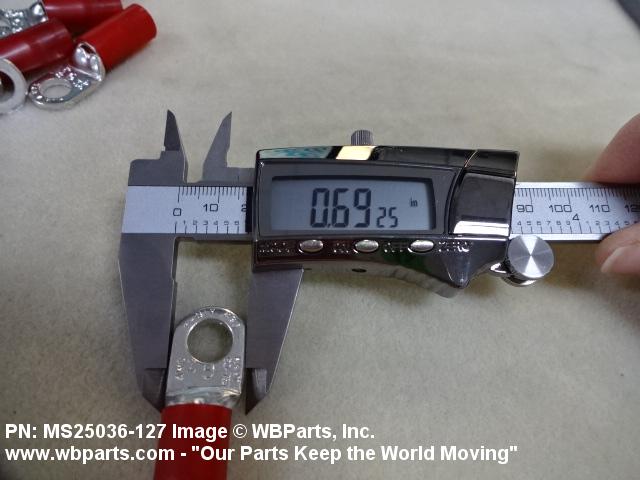

| OVERALL WIDTH | 0.689 INCHES |

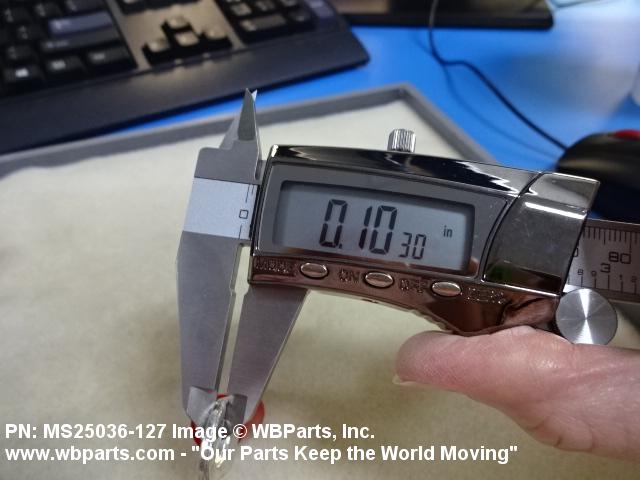

| MATERIAL THICKNESS | 0.081 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 2 AWG |
| MOUNTING METHOD STYLE | D14 RING |

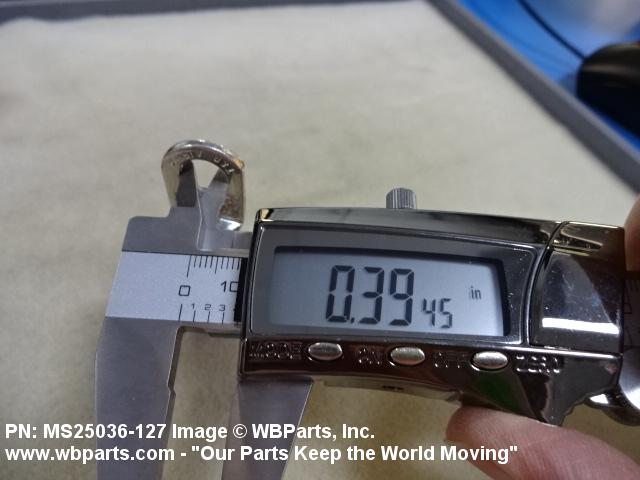

| MOUNTING HOLE DIAMETER | 0.392 INCHES |
| MOUNTING TONGUE WIDTH | 0.689 INCHES |
| MOUNTING FACILITY THICKNESS | 0.081 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | RED |
| MATERIAL | PLASTIC POLYAMIDE INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-502 FED SPEC 1ST MATERIAL RESPONSE OR QQ-C-576 FED SPEC 2ND MATERIAL RESPONSE OR WW-T-799 FED SPEC 3RD MATERIAL RESPONSE OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | TIN OVERALL EXCEPT INSULATION SINGLE LAYER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-T-10727 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSULATION SINGLE LAYER |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TERMINAL,LUG,CRIMP STYLE, COPPER, INSULATED,RING TONGUE,BELL MOUNTHED,T YPE II, CLASS 1, (FOR 105MDC TOTAL CONDUCTOR TERMPERATURE) |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25036-127 |
