NSN 5940-00-063-0573 SMC749983, SM-C-749983, SMC7499831
Product Details | ELECTRICAL BINDING POST
5940-00-063-0573 A metallic postlike terminal, insulated or uninsulated, which is mounted on a board, chassis, panel, or other similar supporting surface. It is designed for frequent manual connections and disconnections of at least one electrical conductor, such as a wire, alligator clip, or spade lug. It may have additional tip jack features for the acceptance of banana plugs, phone tips, and the like. It may also have provisions for permanently attaching an electrical conductor(s). For items which require all electrical conductors to be permanently attached (soldered, crimped, and the like), see TERMINAL, STUD. See also JACK, TIP.
Part Alternates: SMC749983, SM-C-749983, SMC7499831, SMC749983-1, SMC7499832, SMC749983-2, 269BB, 5940-00-063-0573, 00-063-0573, 5940000630573, 000630573
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-063-0573 | 00883 ( POST, BINDING, ELECTRICAL ) |
Drawings & Photos | NSN 5940-00-063-0573
Cross Reference | NSN 5940-00-063-0573
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-063-0573
Related Products | NSN 5940-00-063-0573
Technical Data | NSN 5940-00-063-0573
| Characteristic | Specifications |
|---|---|

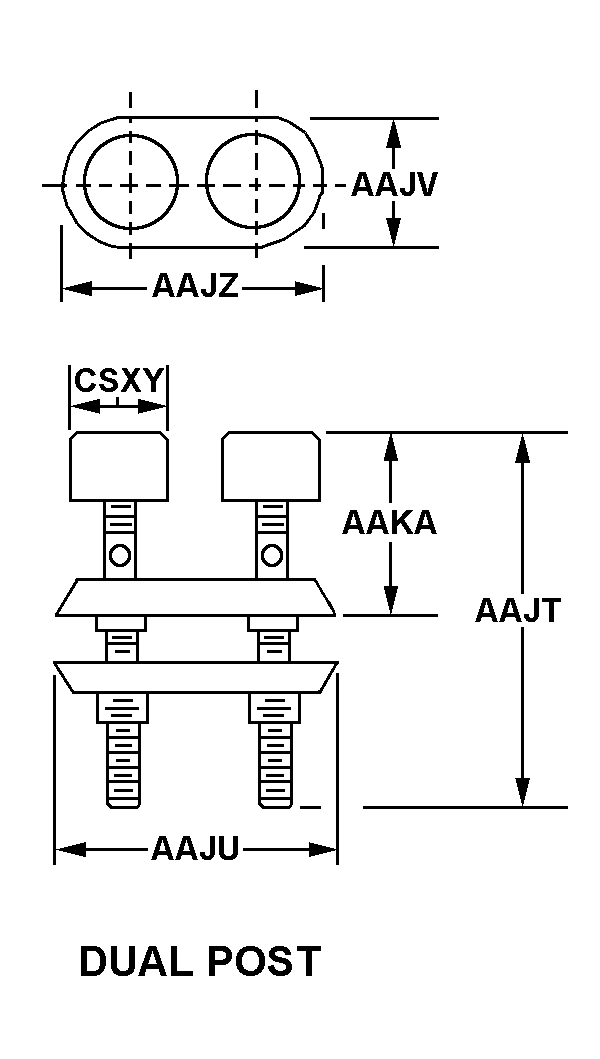

| BASIC SHAPE STYLE | A3 DUAL POST |
| OVERALL HEIGHT | 1.593 INCHES |
| OVERALL LENGTH | 1.500 INCHES |
| OVERALL WIDTH | 0.495 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND POSTS | 0.750 INCHES |
| MAXIMUM HEIGHT ABOVE MOUNTING SURFACE | 0.750 INCHES |
| CAP OUTSIDE DIAMETER | 0.495 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SCREW CAP W/HOLE SINGLE END |
| WIRE HOLE DIAMETER | 0.094 INCHES SINGLE END |
| MOUNTING METHOD STYLE | D27 STUD |
| THREAD LENGTH | 0.562 INCHES |
| MOUNTING THREAD SERIES | UNC |
| MOUNTING THREAD DIAMETER | 0.164 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATED CAPS WITH UNINSULATED STUDS |
| IDENTIFICATION CODE COLOR | BLACK |
| MATERIAL | PLASTIC POLYSTYRENE AND PLASTIC ACRYLONITRILE INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | NICKEL OVERALL EXCEPT INSULATION SINGLE LAYER |
| FEATURES PROVIDED | GRIP-AID REMOVABLE CAP AND MOUNTING HARDWARE AND NONREMOVABLE SOLDER STUD |
