NSN 5935-01-591-9026 HD342416PN, HD34-24-16PN, 19KP419
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-591-9026 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: HD342416PN, HD34-24-16PN, 19KP419, 5935-01-591-9026, 01-591-9026, 5935015919026, 015919026
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 FEB 2011 | 01-591-9026 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

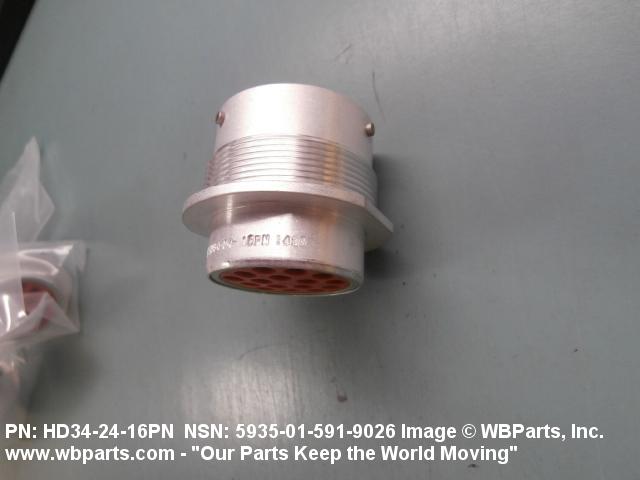

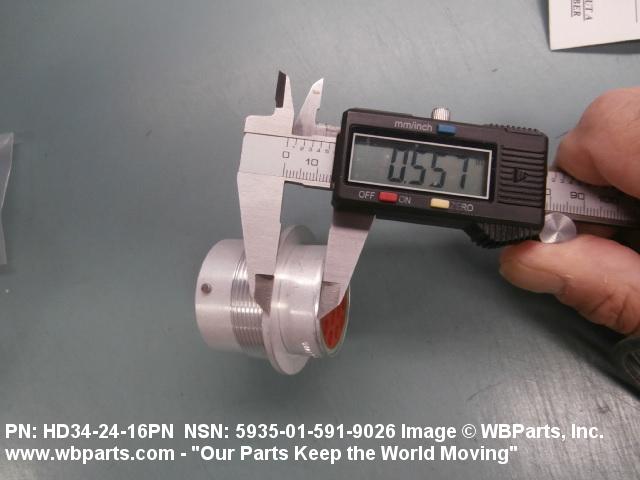

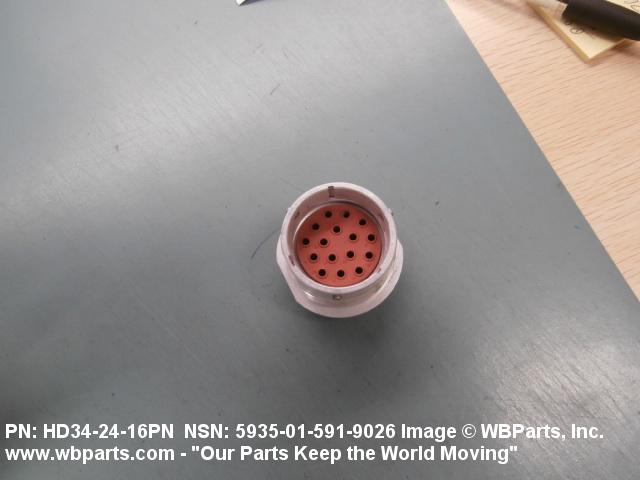

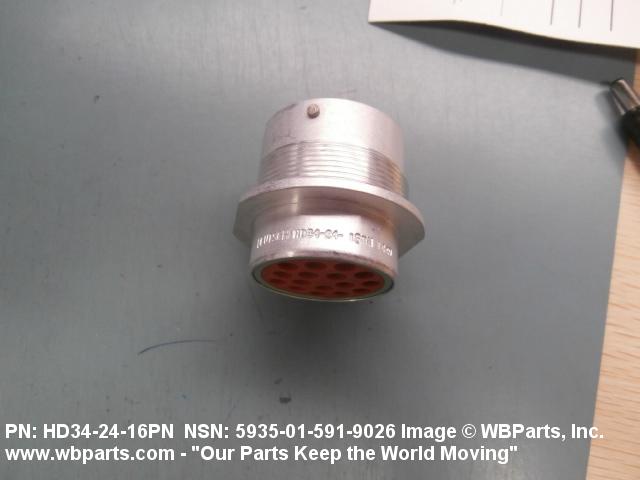

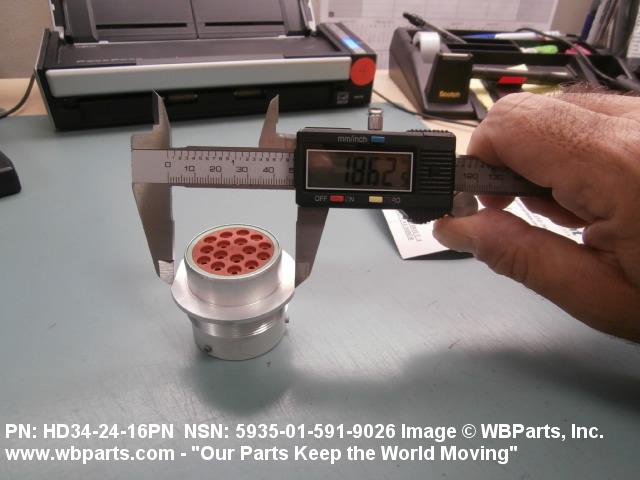

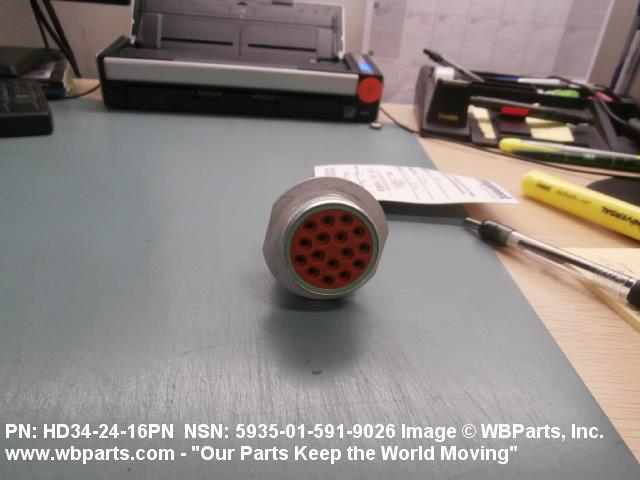

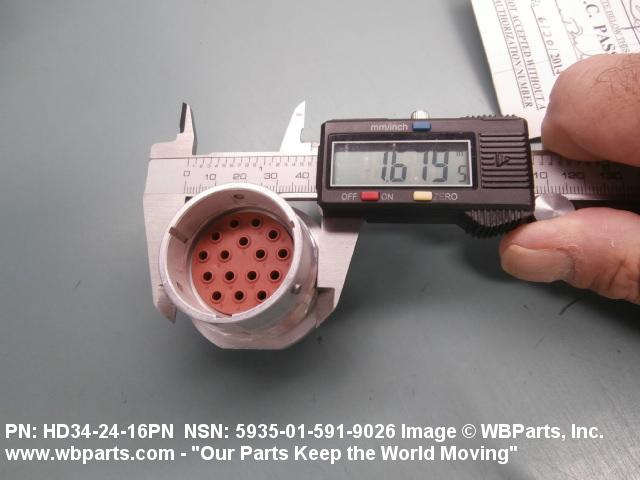

Drawings & Photos | NSN 5935-01-591-9026
Demand History | NSN 5935-01-591-9026
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-591-9026 | 2018-05-141 | 55 | DIBBS |
| 5935-01-591-9026 | 2018-05-130 | 55 | DIBBS |
| 5935-01-591-9026 | 2018-04-95 | 55 | DIBBS |
| 5935-01-591-9026 | 2014-06-154 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-591-9026
Technical Data | NSN 5935-01-591-9026
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| MATING END QUANTITY | 1 |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 1.030 INCHES NOMINAL |
| SPECIAL FEATURES | SHELL SIZE IS 24. |
| THREAD SERIES DESIGNATOR | UNEF |

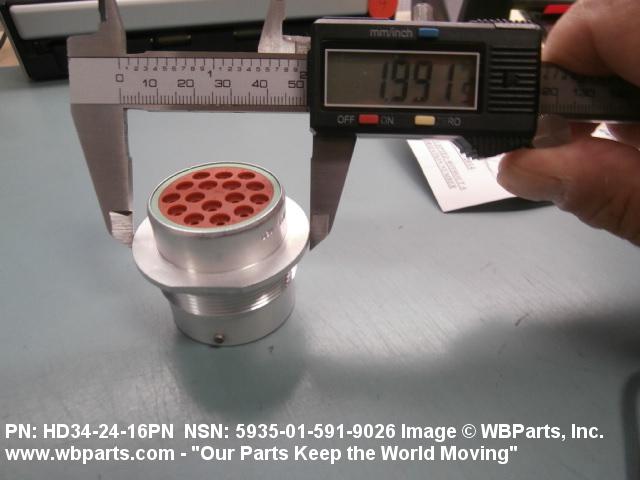

| OVERALL DIAMETER | 2.000 INCHES NOMINAL |
| INCLUDED CONTACT QUANTITY | 16 SINGLE MATING END ALL CONTACT GROUPINGS |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| BODY STYLE | STRAIGHT SHAPE, EXTERNAL COUPLING |
| THREAD CLASS | 2A |
| THREADED DEVICE TYPE | MOUNTING BUSHING |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| NOMINAL THREAD SIZE | 1.688 INCHES |
| OVERALL LENGTH | 1.647 INCHES NOMINAL |
