NSN 5935-01-590-5018 16586721, 1658672-1, 01-590-5018

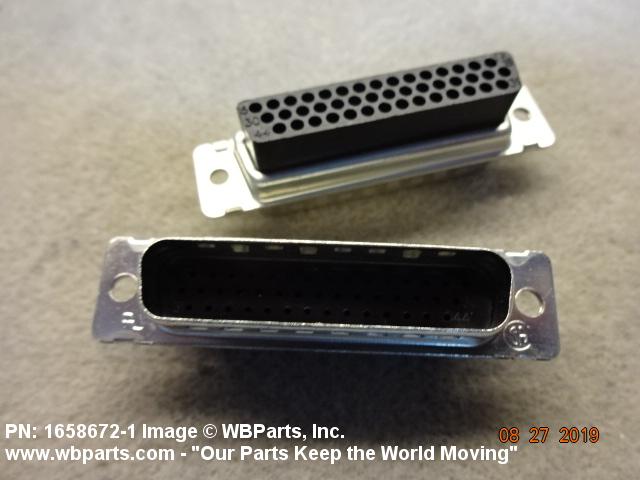

Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-590-5018 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 16586721, 1658672-1, 5935-01-590-5018, 01-590-5018, 5935015905018, 015905018
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 DEC 2010 | 01-590-5018 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-590-5018
Demand History | NSN 5935-01-590-5018
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-590-5018 | 2015-12-341 | 63 | DIBBS |
| 1658672-1 | 2013-06-169 | 8 | Korea |
Cross Reference | NSN 5935-01-590-5018
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1658672-1 | 00779 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-590-5018
Related Products | NSN 5935-01-590-5018
Technical Data | NSN 5935-01-590-5018
| Characteristic | Specifications |
|---|---|
| MATING END QUANTITY | 1 |
| BODY STYLE | RECTANGULAR SHAPE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| OVERALL WIDTH | 0.479 INCHES MINIMUM AND 0.509 INCHES MAXIMUM |
| COLOR | BLACK |
| OVERALL HEIGHT | 0.717 INCHES MAXIMUM |
| INCLUDED CONTACT QUANTITY | 44 SINGLE MATING END SINGLE CONTACT GROUPING |
| INSERT MATERIAL | PLASTIC POLYAMIDE GLASS FILLED 1ST MATING END |
| SHELL SURFACE TREATMENT | TIN AND COPPER |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| SHELL MATERIAL | STEEL |
| OVERALL LENGTH | 2.073 INCHES MINIMUM AND 2.103 INCHES MAXIMUM |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.852 INCHES NOMINAL |
| CONTACT POSITION ARRANGEMENT STYLE | 3 ROWS OF CONTACTS NON-INSERTED BOARD SINGLE MATING END |
| POLARIZATION METHOD | MATING END |
Restrictions/Controls & Freight Information | NSN 5935-01-590-5018
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
