NSN 5935-01-584-3135 D38999/20JJ8BA, D3899920JJ8BA, MIL-DTL-38999/20
Product Details | ELECTR RECEPTACLE CONNECTOR BODY
5935-01-584-3135 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: D38999/20JJ8BA, D3899920JJ8BA, MIL-DTL-38999/20, MILDTL3899920, 5935-01-584-3135, 01-584-3135, 5935015843135, 015843135
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 APR 2010 | 01-584-3135 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |

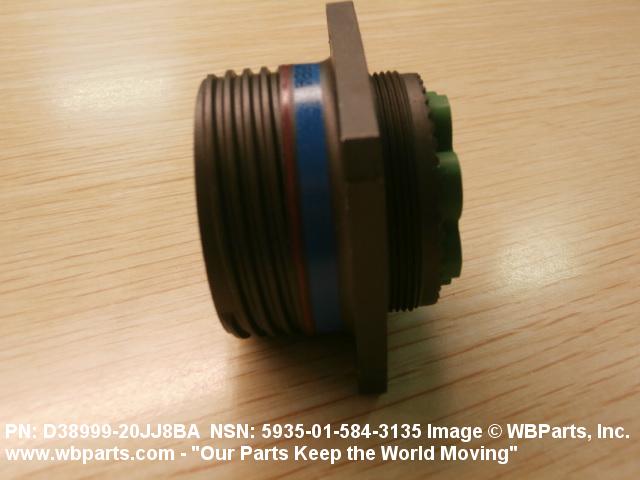

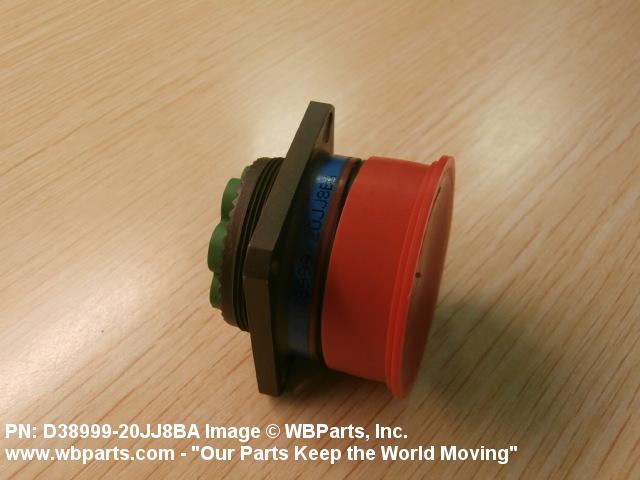

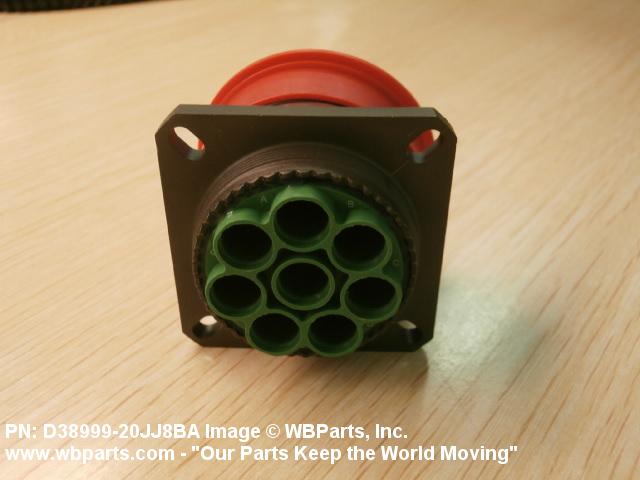

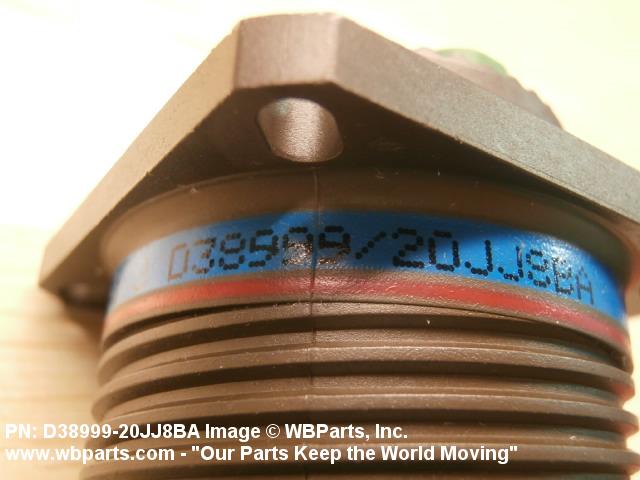

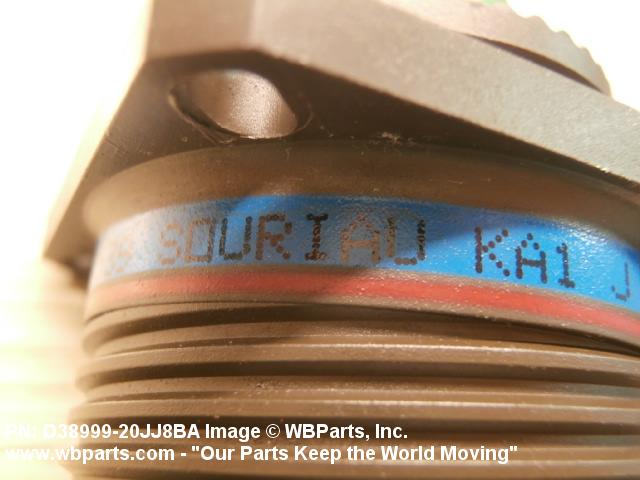

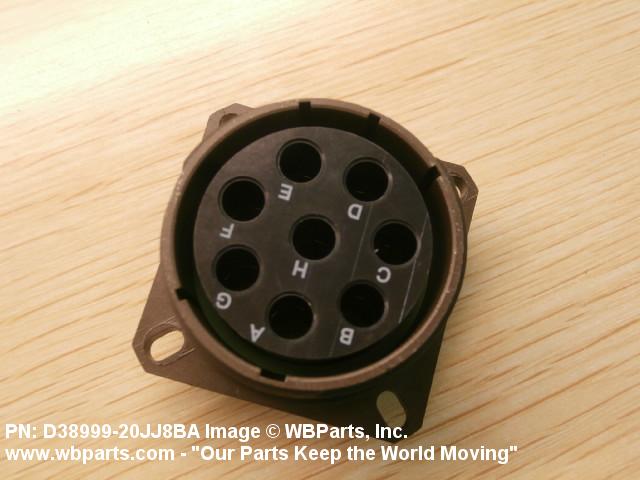

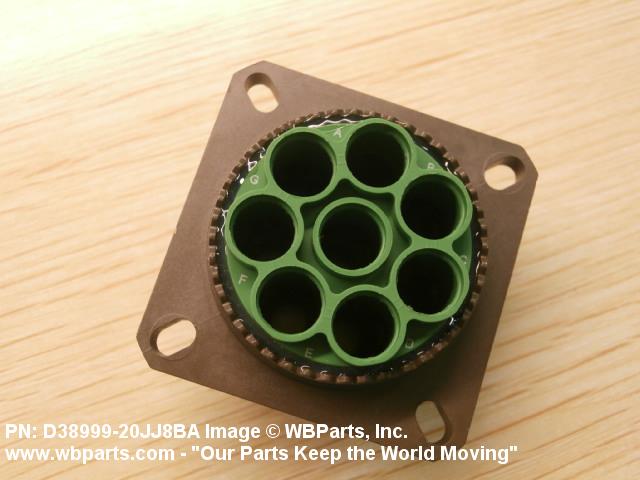

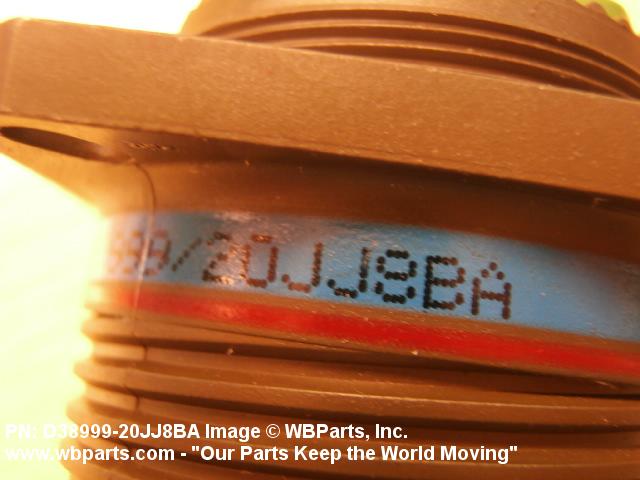

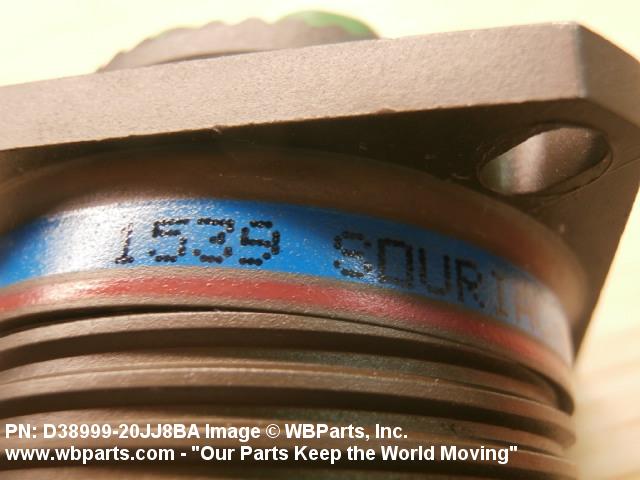

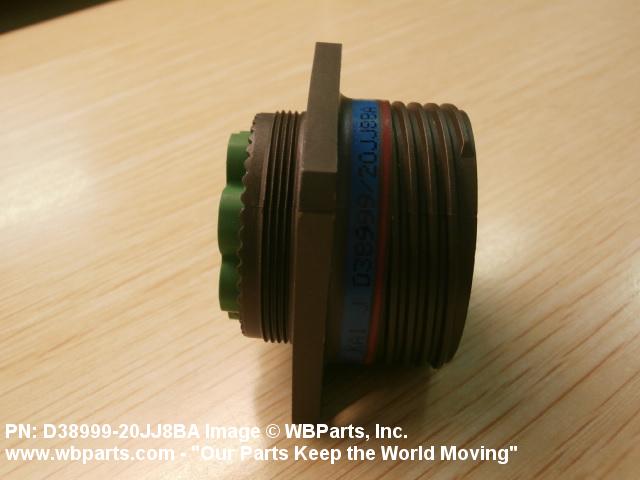

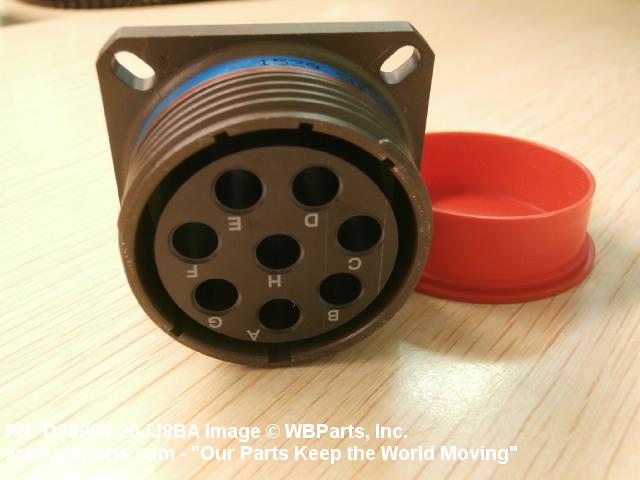

Drawings & Photos | NSN 5935-01-584-3135
Demand History | NSN 5935-01-584-3135
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-584-3135 | 2022-12-338 | 1 | DIBBS |
| 5935-01-584-3135 | 2021-08-235 | 10 | DIBBS |
| 5935-01-584-3135 | 2018-02-50 | 1 | DIBBS |
| 5935-01-584-3135 | 2017-02-45 | 1 | DIBBS |
| 5935-01-584-3135 | 2016-12-340 | 1 | DIBBS |
| D3899920JJ8BA | 2015-09-260 | 1 | us |
| D3899920JJ8BA | 2013-12-353 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-584-3135
Technical Data | NSN 5935-01-584-3135
| Characteristic | Specifications |
|---|---|
| THREAD TOLERANCE CLASS | 6G EXTERNAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 34.9 MILLIMETERS MINIMUM AND 38.1 MILLIMETERS MAXIMUM |
| OVERALL LENGTH | 33.7 MILLIMETERS NOMINAL |
| SHELL TYPE | SOLID |
| NOMINAL THREAD SIZE | 37.0 MILLIMETERS AND 1.625 INCHES |
| SHELL SURFACE TREATMENT | CADMIUM |
| INSERT POSITION IN DEG | 0.0 AND 50.0 AND 160.0 AND 190.0 AND 225.0 |
| MATING END QUANTITY | 1 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| THREAD CLASS | 2A AND 2A |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 34.9 MILLIMETERS MINIMUM AND 38.1 MILLIMETERS MAXIMUM |
| OVERALL HEIGHT | 46.0 MILLIMETERS NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
| BODY STYLE | STRAIGHT SHAPE, EXTERNAL COUPLING |
| SHELL MATERIAL | PLASTIC |
| CONTACT POSITION ARRANGEMENT STYLE | 40490 SINGLE MATING END |
| THREAD SERIES DESIGNATOR | ISO S AND SPECIAL ACME |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 20.1 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 46.0 MILLIMETERS NOMINAL |
Restrictions/Controls & Freight Information | NSN 5935-01-584-3135
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-584-3135
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
