NSN 5935-01-577-1612 1401405012I, 1401405012-I, 7411111386
Product Details | ELECTRICA MODULAR PLUG CONNECTOR
5935-01-577-1612 An electrical fitting with contacts and having one or more cavities into which an INSERT MODULE, ELECTRICAL CONNECTOR can be installed. The insert modules may/may not be included with the item. The item is constructed to be affixed to the end of a cable, conduit, coaxial line, core, wire, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is not designed to be mounted on a bulkhead, chassis, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG, TIP; INSERT, ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); CONNECTOR, PLUG, ELECTRICAL and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 1401405012I, 1401405012-I, 7411111386, 7411111-386, 5935-01-577-1612, 01-577-1612, 5935015771612, 015771612
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 AUG 2009 | 01-577-1612 | 38439 ( CONNECTOR, MODULAR PLUG, ELECTRICAL ) |

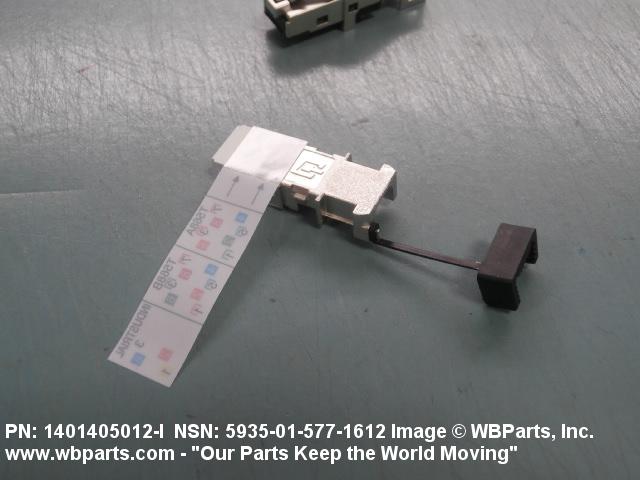

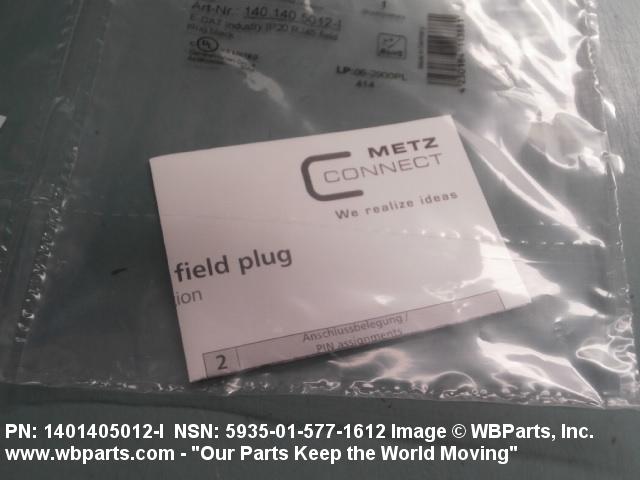

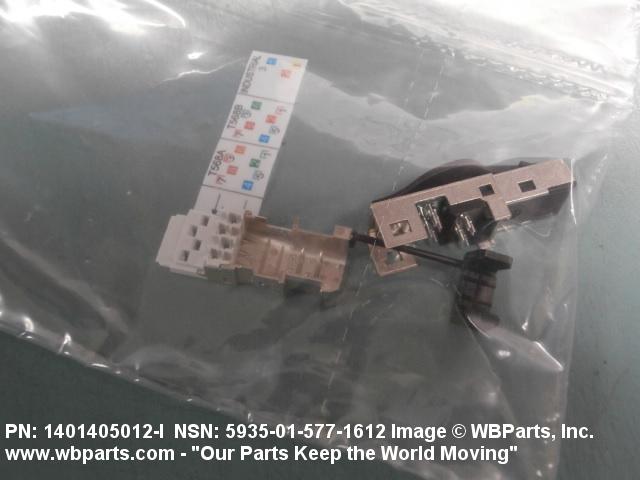

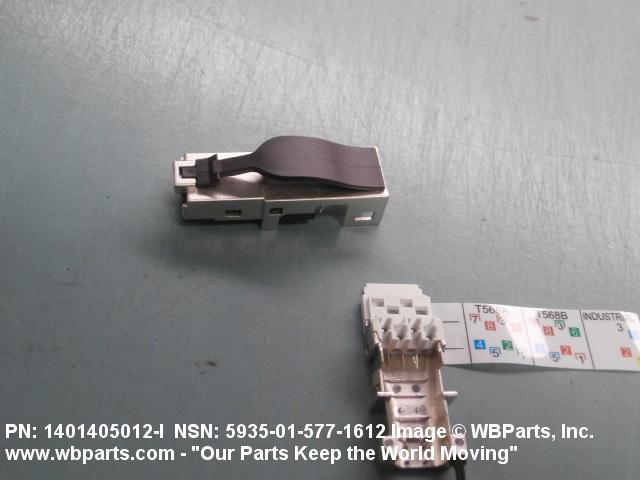

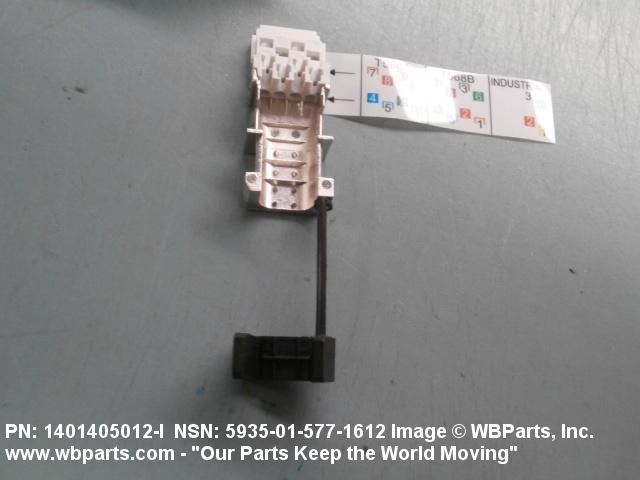

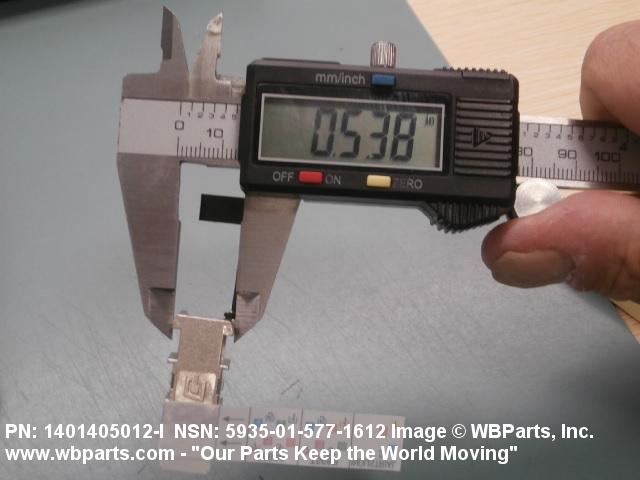

Drawings & Photos | NSN 5935-01-577-1612
Demand History | NSN 5935-01-577-1612
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-577-1612 | 2021-08-236 | 2 | US |
| 1401405012I | 2020-08-225 | 8 | United States |
| 5935-01-577-1612 | 2018-02-46 | 503 | DIBBS |
| 5935-01-577-1612 | 2016-10-279 | 306 | DIBBS |
| 5935-01-577-1612 | 2016-02-34 | 283 | DIBBS |
| 5935-01-577-1612 | 2015-12-336 | 40 | DIBBS |
| 5935-01-577-1612 | 2015-11-312 | 33 | DIBBS |
| 1401405012I | 2014-05-135 | 3 | United States |
| 5935-01-577-1612 | 2014-04-110 | 70 | DIBBS |
| 5935-01-577-1612 | 2013-02-52 | 64 | DIBBS |
| 5935-01-577-1612 | 2012-10-276 | 0 | DIBBS |
| 5935-01-577-1612 | 2012-09-268 | 12 | DIBBS |
| 5935-01-577-1612 | 2012-08-215 | 31 | DIBBS |
| 5935-01-577-1612 | 2012-07-183 | 11 | DIBBS |
| 5935-01-577-1612 | 2012-06-163 | 5 | DIBBS |
| 5935-01-577-1612 | 2012-04-98 | 8 | DIBBS |
| 5935-01-577-1612 | 2012-03-72 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-577-1612
Technical Data | NSN 5935-01-577-1612
| Characteristic | Specifications |
|---|---|

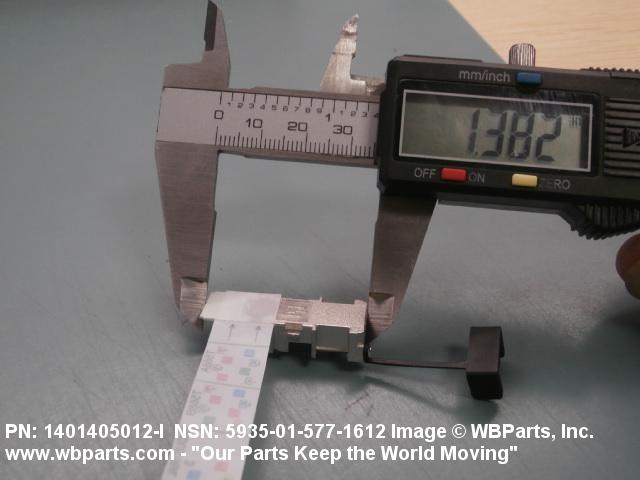

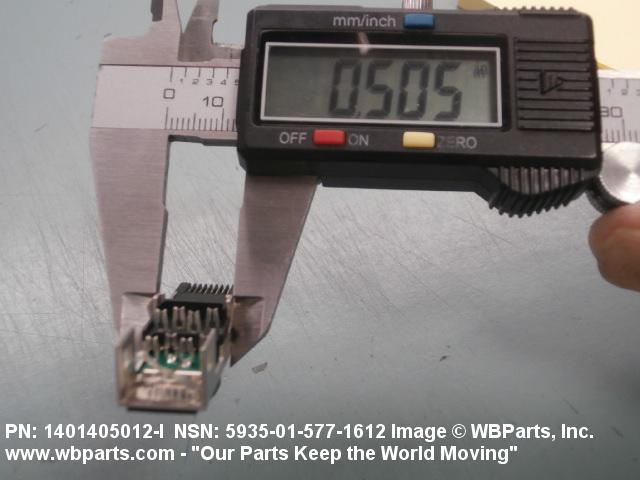

| OVERALL WIDTH | 13.7 MILLIMETERS NOMINAL |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| MATING END QUANTITY | 1 |
| BODY STYLE | RECTANGULAR SHAPE |
| CONNECTOR LOCKING METHOD | LATCH |
| CABLE ENTRANCE DIAMETER | 5.5 MAJOR MILS AND 8.5 MAJOR CENTIMETERS |

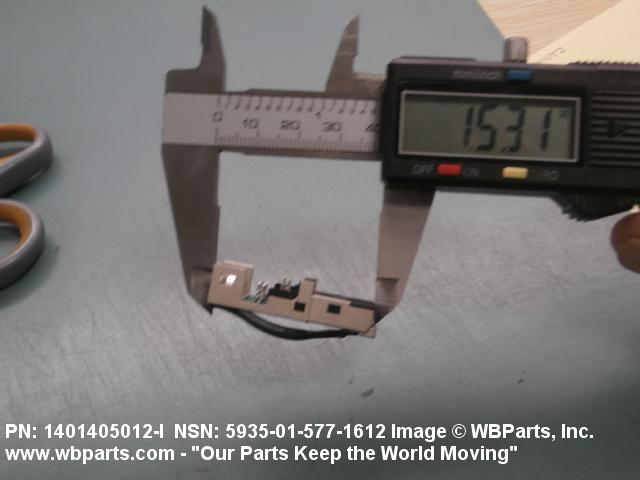

| OVERALL HEIGHT | 14.7 MILLIMETERS NOMINAL |
| INCLUDED CONTACT QUANTITY | 8 SINGLE MATING END SINGLE CONTACT GROUPING |
| SPECIAL FEATURES | THIS IS A EIGHT-CORE RJ45 PLUG |
| END ITEM IDENTIFICATION | VA CLASS SOC-PBL |
| CONTACT POSITION ARRANGEMENT STYLE | 8 SINGLE MATING END |
Restrictions/Controls & Freight Information | NSN 5935-01-577-1612
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-577-1612
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
