NSN 5935-01-541-8677 CT300019, 937SP3044, 937-SP-3044
Product Details | ELECTRICAL MODULAR PLUG CONNECTOR

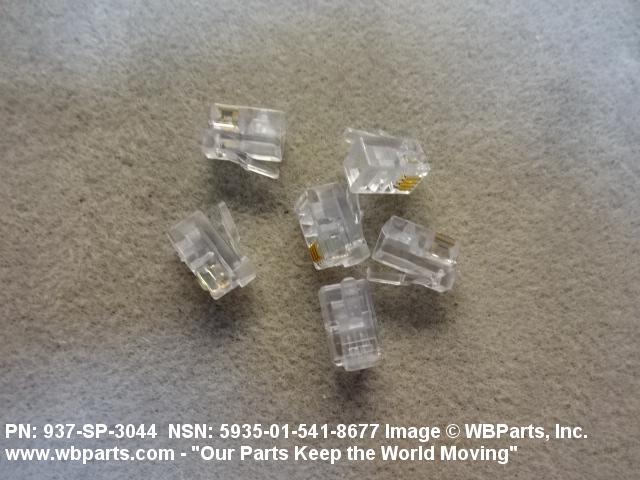

5935-01-541-8677 An electrical fitting with contacts and having one or more cavities into which an INSERT MODULE, ELECTRICAL CONNECTOR can be installed. The insert modules may/may not be included with the item. The item is constructed to be affixed to the end of a cable, conduit, coaxial line, core, wire, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is not designed to be mounted on a bulkhead, chassis, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG, TIP; INSERT, ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); CONNECTOR, PLUG, ELECTRICAL and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: CT300019, 937SP3044, 937-SP-3044, 5935-01-541-8677, 01-541-8677, 5935015418677, 015418677
Electrical and Electronic Equipment Components | Connectors, Electrical
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 13 JUL 2006 | 01-541-8677 | 38439 ( CONNECTOR, MODULAR PLUG, ELECTRICAL ) |
Demand History | NSN 5935-01-541-8677
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5935-01-541-8677 | 2024-03-65 | 1 | US |
5935-01-541-8677 | 2019-04-115 | 6 | United States |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5935-01-541-8677
Technical Data | NSN 5935-01-541-8677
Characteristic | Specifications |
---|---|
BODY STYLE | 60A RECTANGULAR SHAPE |

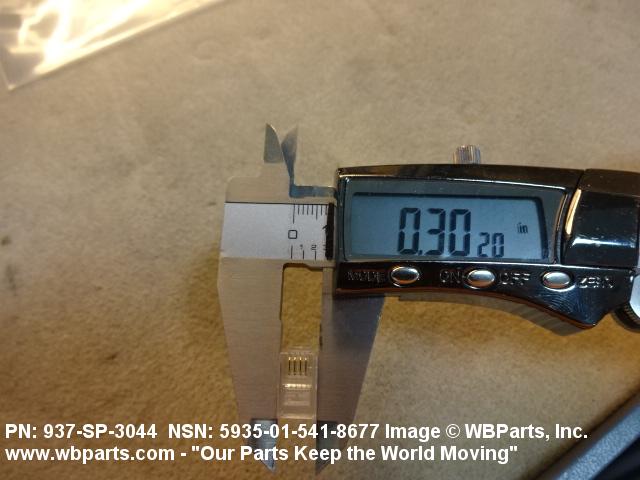

OVERALL LENGTH | 0.300 MILLIMETERS NOMINAL |

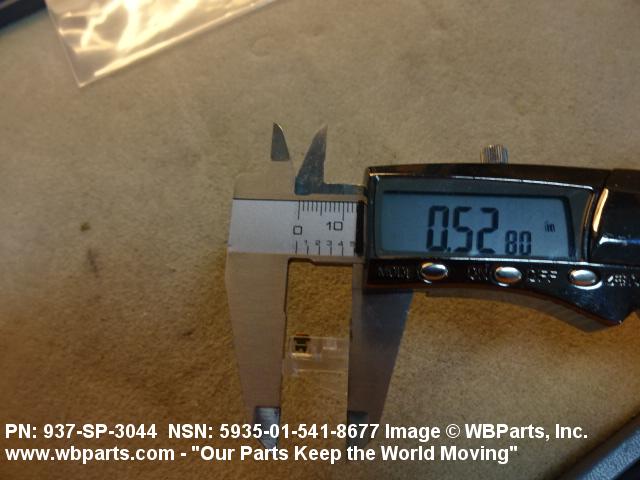

OVERALL HEIGHT | 0.525 MILLIMETERS NOMINAL |

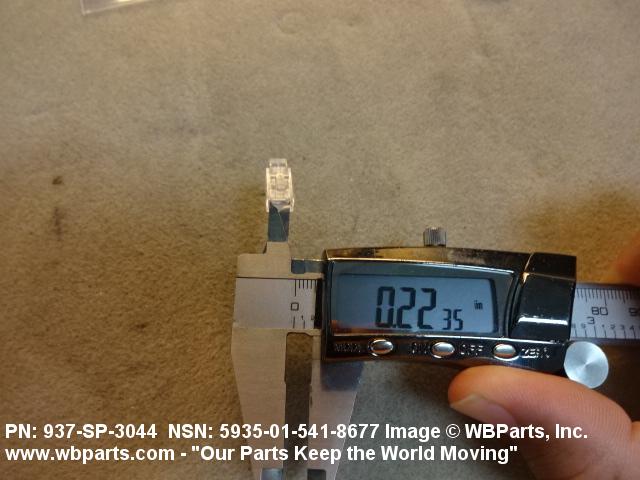

OVERALL WIDTH | 0.260 MILLIMETERS NOMINAL |
COLOR | CLEAR |
SPECIAL FEATURES | CONTACT PLATING IN MATING AREA 50MICRO-INCHES (1.27UM); FOR FLAT OR OVAL CABLE |
III PART NAME ASSIGNED BY CONTROLLING AGENCY | FOUR CONDUCTOR/FOUR POSITION LINECORD MODULE |
Restrictions/Controls & Freight Information | NSN 5935-01-541-8677
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
No Freight Information |
