NSN 5935-01-565-8384 D38999/24SJ24PN, D3899924SJ24PN, 01-565-8384
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-565-8384 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: D38999/24SJ24PN, D3899924SJ24PN, 5935-01-565-8384, 01-565-8384, 5935015658384, 015658384
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 AUG 2008 | 01-565-8384 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-565-8384
Cross Reference | NSN 5935-01-565-8384
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D38999/24SJ24PN | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-565-8384
Technical Data | NSN 5935-01-565-8384
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 32.5 MILLIMETERS MAXIMUM |
| OVERALL DIAMETER | 58.4 MILLIMETERS MAXIMUM |
| THREAD PITCH IN MILLIMETERS | 1.0 |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | ISO M |
| NOMINAL THREAD SIZE | 44.0 MILLIMETERS AND 37.0 MILLIMETERS |
| THREAD TOLERANCE CLASS | 6G EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| MATING END QUANTITY | 1 |

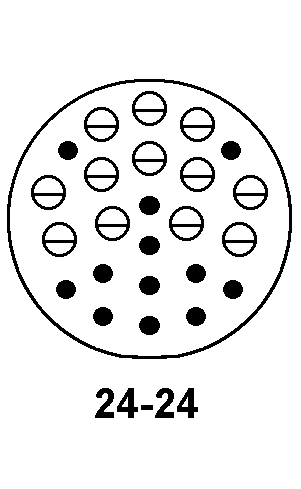

| CONTACT POSITION ARRANGEMENT STYLE | BABM 24-24 SINGLE MATING END |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| SPECIAL FEATURES | TEMP: 200CELIUS, CONTACT ARRANGEMENT IS 12 OF 12AND 12OF 16SIZE |
| III END ITEM IDENTIFICATION | GAU-19 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | D38999/24SJ24PN |
