NSN 5935-01-551-6194 FPL171814ST, FPL1718-14ST, 01-551-6194
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-551-6194 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: FPL171814ST, FPL1718-14ST, 5935-01-551-6194, 01-551-6194, 5935015516194, 015516194
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 MAY 2007 | 01-551-6194 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

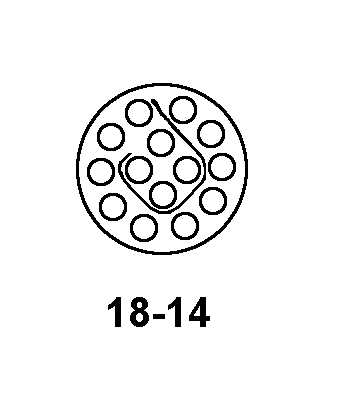

Drawings & Photos | NSN 5935-01-551-6194
Demand History | NSN 5935-01-551-6194
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FPL171814ST | 2007-03-89 | 1 | US |
Cross Reference | NSN 5935-01-551-6194
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FPL1718-14ST | 49367 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
