NSN 5935-01-514-3932 M85049/3817W04, M850493817W04, 01-514-3932
Product Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-01-514-3932 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Part Alternates: M85049/3817W04, M850493817W04, 5935-01-514-3932, 01-514-3932, 5935015143932, 015143932
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 OCT 2003 | 01-514-3932 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |

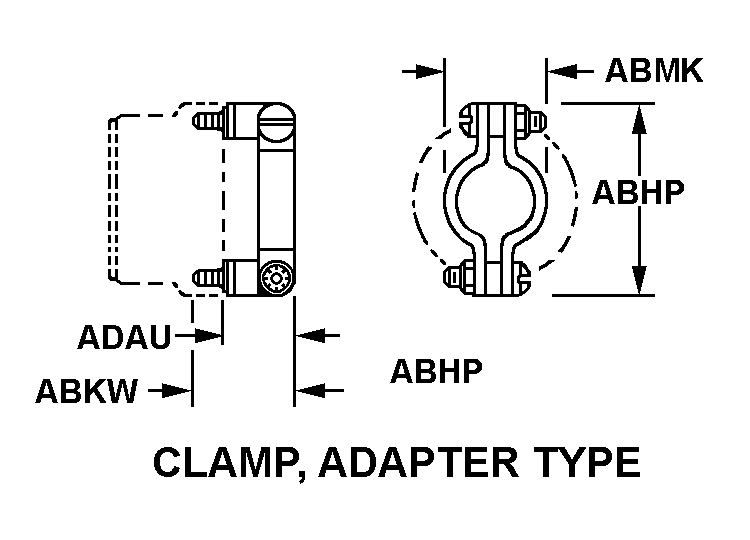

Drawings & Photos | NSN 5935-01-514-3932
Cross Reference | NSN 5935-01-514-3932
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M85049/3817W04 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-514-3932
Technical Data | NSN 5935-01-514-3932
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 3B CLAMP, ADAPTER TYPE |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL HEIGHT | 1.125 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| BODY HEIGHT | 1.125 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SCREW |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.000 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M85049/3817W04 |
Restrictions/Controls & Freight Information | NSN 5935-01-514-3932
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
