NSN 5935-01-514-2903 L22TE96P7W1, L22TE96P7W-1, 01-514-2903
Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-01-514-2903 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: L22TE96P7W1, L22TE96P7W-1, 5935-01-514-2903, 01-514-2903, 5935015142903, 015142903
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 OCT 2003 | 01-514-2903 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-514-2903
Demand History | NSN 5935-01-514-2903
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-514-2903 | 2010-01-29 | 1 | DIBBS |
| 5935-01-514-2903 | 2009-08-225 | 1 | DIBBS |
Cross Reference | NSN 5935-01-514-2903
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L22TE96P7W-1 | 09922 | SOURIAU USA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-514-2903
Related Products | NSN 5935-01-514-2903
Technical Data | NSN 5935-01-514-2903
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 5G STRAIGHT SHAPE, EXTERNAL COUPLING W/BACKSHELL |
| SHELL MATERIAL | ALUMINUM |
| SHELL SURFACE TREATMENT | CHROMATE AND CADMIUM |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| MATING END QUANTITY | 1 |

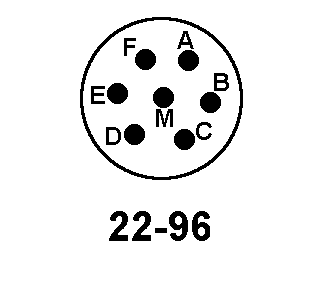

| CONTACT POSITION ARRANGEMENT STYLE | AHDZ 22-96 SINGLE MATING END |
