NSN 5935-01-480-2375 HD342435PN, HD34-24-35PN, 9HB975
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-480-2375 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: HD342435PN, HD34-24-35PN, 9HB975, 5935-01-480-2375, 01-480-2375, 5935014802375, 014802375
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 NOV 2000 | 01-480-2375 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-480-2375
Demand History | NSN 5935-01-480-2375
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-480-2375 | 2017-02-45 | 35 | DIBBS |
| 5935-01-480-2375 | 2011-03-84 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-480-2375
Related Products | NSN 5935-01-480-2375
Technical Data | NSN 5935-01-480-2375
| Characteristic | Specifications |
|---|---|

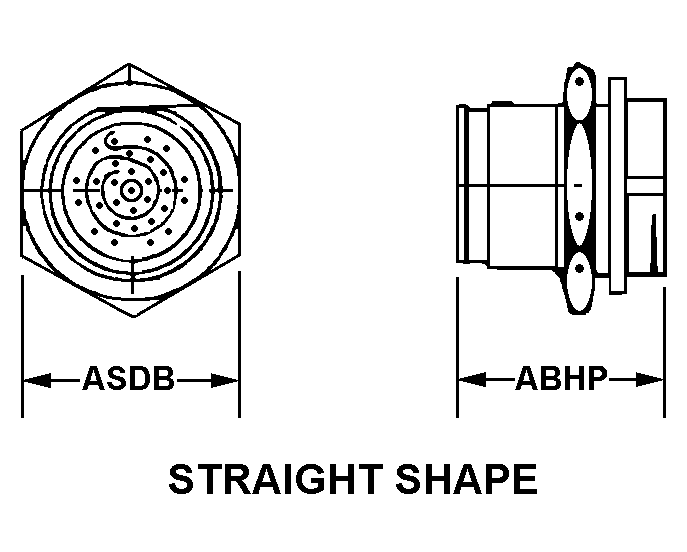

| BODY STYLE | 6M STRAIGHT SHAPE |
| OVERALL LENGTH | 1.647 INCHES NOMINAL |
| OVERALL DIAMETER | 2.000 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.875 INCHES NOMINAL |
| THREADED DEVICE TYPE | BACK SHELL |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | BMAA 28-15 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 35 SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | PIN SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | FRONT SINGLE MATING END ALL CONTACT GROUPINGS |
| SPECIAL FEATURES | RECEPTACLE CONNECTOR SHELL SIZE 24 BAYONET COUPLING HD30 |
| III END ITEM IDENTIFICATION | 2320-01-465-2174 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | RECEPTACLE CONNECTOR SHELL SIZE 24 BAYONET COUPLING HD30 SERIES |
