NSN 5935-01-472-3901 PJ8889W, 7327300361, 73-2730036-1
Product Details | TELEPHONE JACK
5935-01-472-3901 A contact spring type electrical fitting of two or more conductors, which is arranged for the insertion of a PLUG, TELEPHONE. One conductor may be grounded. Does not include separable telephone jacks which are termed, JACK ASSEMBLY, TELEPHONE. Excludes JACK, TIP.
Part Alternates: PJ8889W, 7327300361, 73-2730036-1, 9J889W, 5935-01-472-3901, 01-472-3901, 5935014723901, 014723901
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 MAR 2000 | 01-472-3901 | 00124 ( JACK, TELEPHONE ) |
Drawings & Photos | NSN 5935-01-472-3901
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-472-3901
Related Products | NSN 5935-01-472-3901
Technical Data | NSN 5935-01-472-3901
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | THREE CONDUCTOR, SLENDER SPHERICAL TIP ALL FINGERS |
| FINGER ACCOMMODATION DIAMETER | 0.174 INCHES NOMINAL ALL FINGERS |
| FINGER ACCOMMODATION LENGTH | 0.860 INCHES NOMINAL ALL FINGERS |

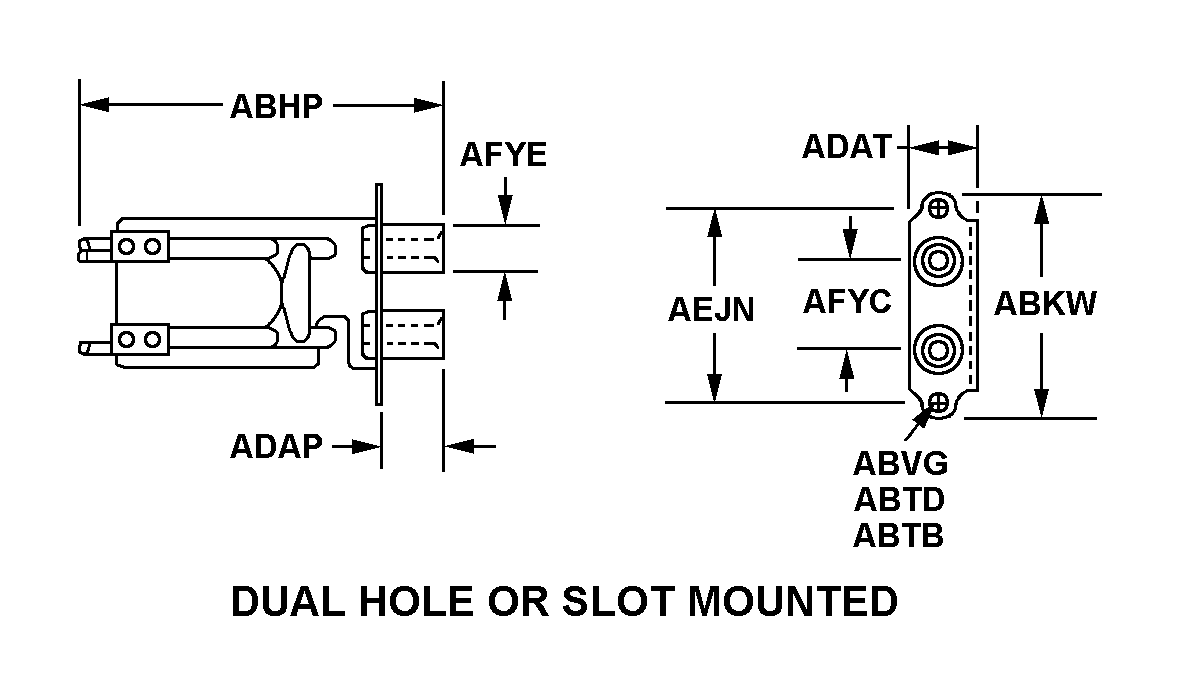

| BODY STYLE | 35 DUAL HOLE OR SLOT MOUNTED |
| OVERALL LENGTH | 3.045 INCHES NOMINAL |
| OVERALL HEIGHT | 1.046 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.115 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.375 INCHES NOMINAL |
| BODY WIDTH | 0.281 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.812 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FINGER ACCOMMODATIONS | 0.312 INCHES NOMINAL |
| MOUNTING BUSHING DIAMETER | 0.312 INCHES NOMINAL |
| JACK CONTACT ARRANGEMENT DESIGNATOR | J7-1B |
| ELECTRICAL INSULATION FEATURE | INSULATED FROM PANEL |
| MATERIAL | ZINC BODY STEEL BUSHING GOLD ALLOY OR PALLADIUM CONTACT PLASTIC, PHENOLIC INSULATOR |
| SURFACE TREATMENT | GOLD CONTACT |
| TERMINAL TYPE | WIRE WRAP |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
| SPECIAL FEATURES | INSULATION THERMO PLASTIC WITH PLASTIC TUBING THROUGH STACK; FRAME FINISH IS ZINC PLATED WITH CHROMATE CONVERSION PLATING; STACK SCREWS ARE PASSIVATED |
| III END ITEM IDENTIFICATION | 5805-01-454-4416, NODE CENTER SWITCH |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT FINISH GOLD |
