NSN 5935-01-453-4337 M12883/40-02S, M12883/40-2S, M128834002S
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-453-4337 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: M12883/40-02S, M12883/40-2S, M128834002S, M12883402S, MIL-PRF-12883/40, MILPRF1288340, 5935-01-453-4337, 01-453-4337, 5935014534337, 014534337
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 FEB 1998 | 01-453-4337 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-453-4337
Demand History | NSN 5935-01-453-4337
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-453-4337 | 2020-04-94 | 17 | DIBBS |
| 5935-01-453-4337 | 2020-03-83 | 17 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-453-4337
Technical Data | NSN 5935-01-453-4337
| Characteristic | Specifications |
|---|---|

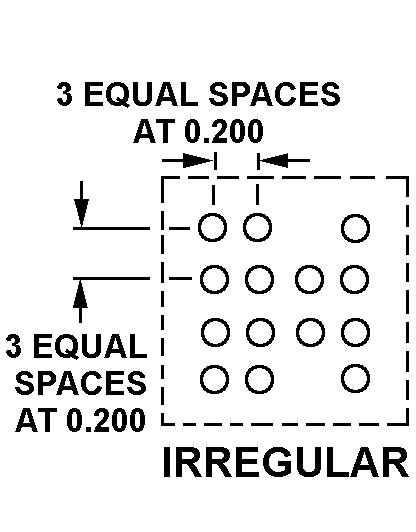

| CONTACT POSITION ARRANGEMENT STYLE | 1432A IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 10.0 |

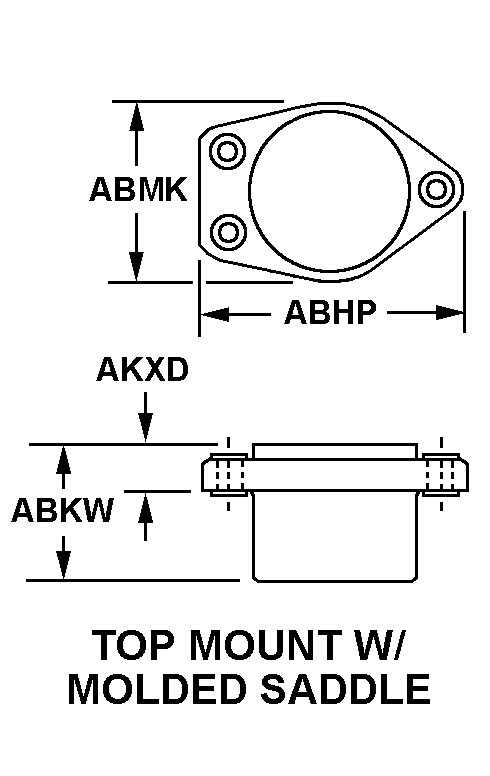

| BODY STYLE | 22B TOP MOUNT W/MOLDED SADDLE |
| OVERALL LENGTH | 1.710 INCHES NOMINAL |
| OVERALL HEIGHT | 0.880 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.357 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 CRIMP |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |

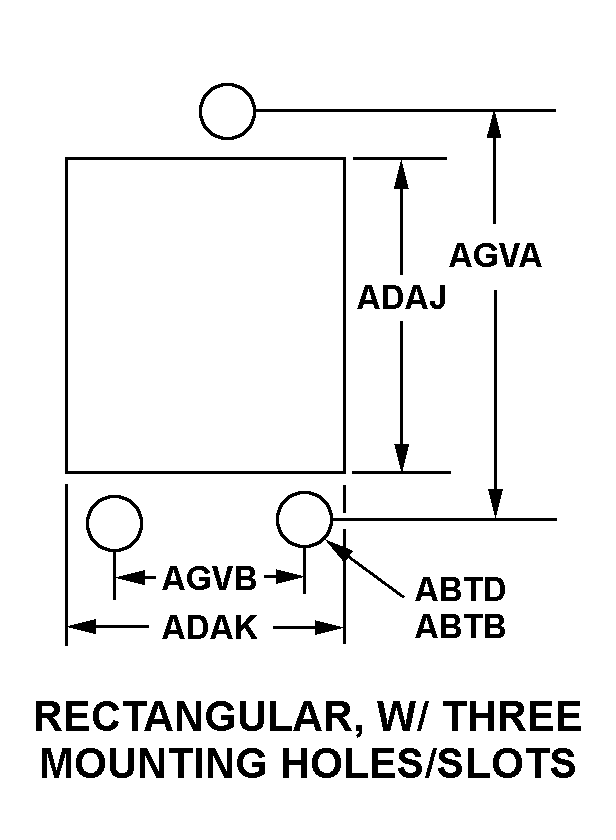

| MOUNTING HOLE STYLE | 43D RECTANGULAR, W/THREE MOUNTING HOLES/SLOTS |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.075 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 1.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.406 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.625 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-12883/40 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M12883/40-02S |
