Product Details | ELECTRICAL CONNECTOR ASSEMBLY

5935-01-452-9828 Two or more CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; ADAPTER, CONNECTOR; JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG, TIP; DUMMY CONNECTOR, PLUG; or DUMMY CONNECTOR, RECEPTACLE in any combination, having a common mounting or mounted on each other, each one capable of being independently replaced. It may be interconnected by means of wire or solder bridgings. For items furnished as mated pairs or sets, see CONNECTOR SET, ELECTRICAL. Excludes DUMMY CONNECTOR SET, ELECTRICAL; JACK ASSEMBLY, TELEPHONE; JACK ASSEMBLY, TIP; PLUG ASSEMBLY, TIP; and CABLE ASSEMBLY (as modified).

Part Alternates: MINL9FCRL, MINL-9-FCRL, 5935-01-452-9828, 01-452-9828, 5935014529828, 014529828

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 14 FEB 1998 01-452-9828

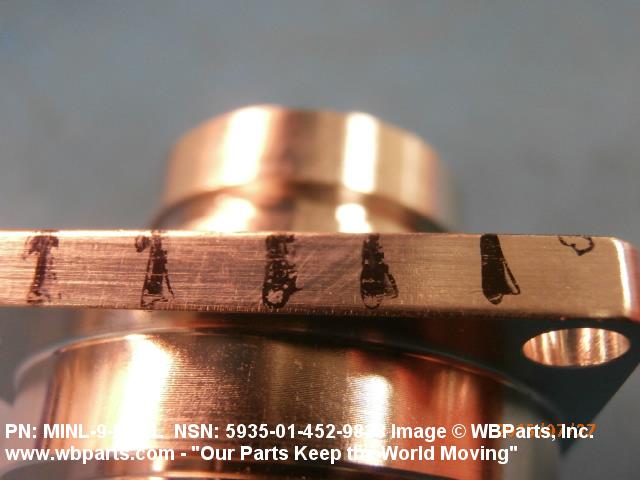

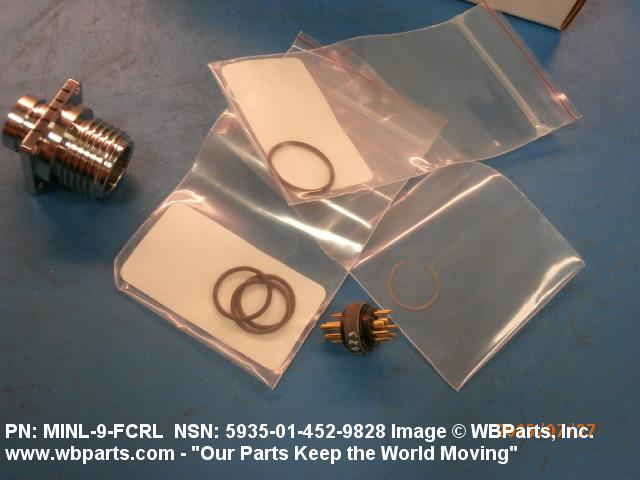

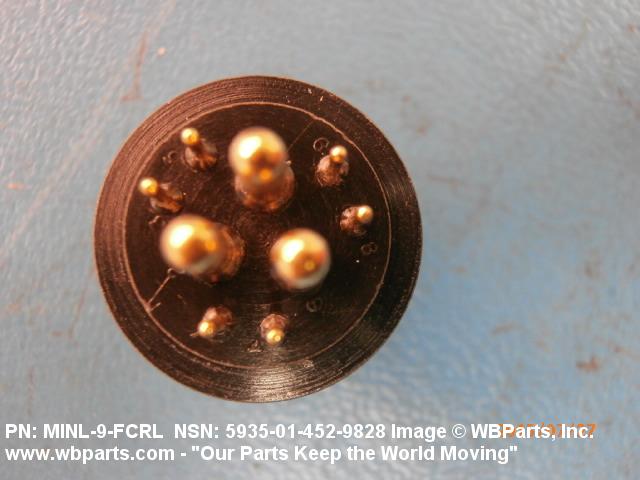

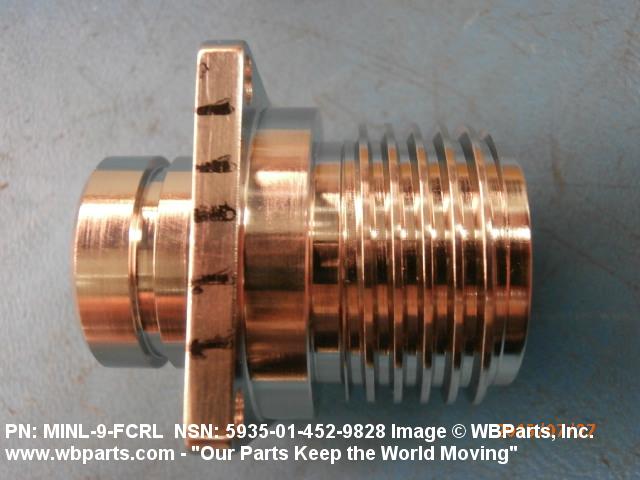

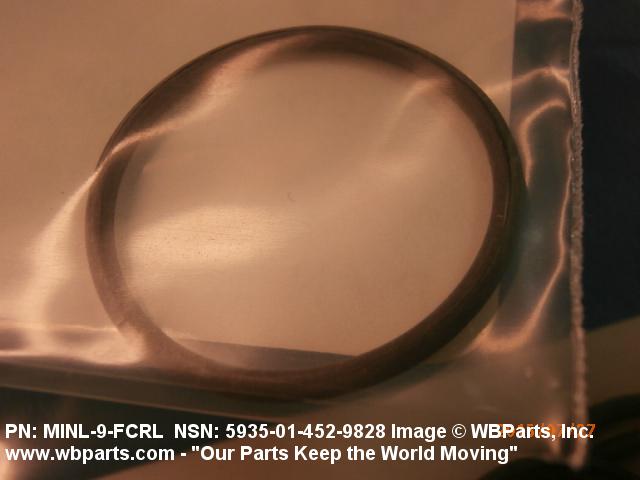

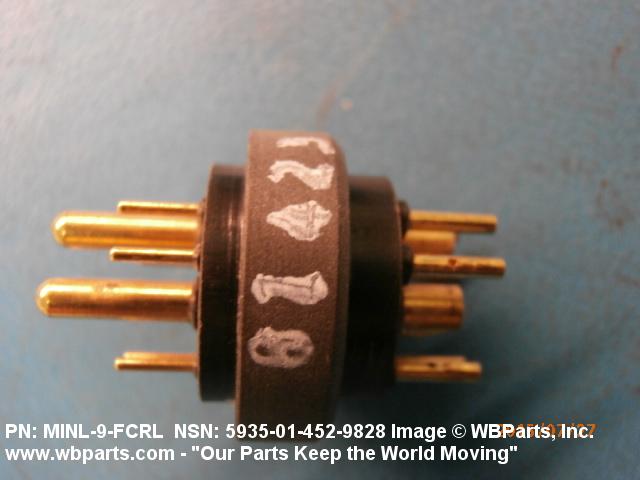

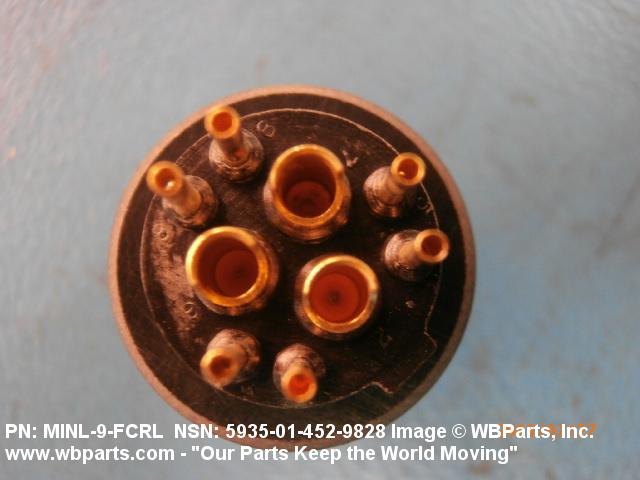

Drawings & Photos | NSN 5935-01-452-9828


Demand History | NSN 5935-01-452-9828

Part Number Request Date QTY Origin
5935-01-452-9828 2015-08-222 3 DIBBS
5935-01-452-9828 2015-07-208 3 United States
5935-01-452-9828 2015-07-208 6 United States
5935-01-452-9828 2015-07-204 6 United States

Cross Reference | NSN 5935-01-452-9828

Part Number Cage Code Manufacturer
MINL-9-FCRL 15789 BRANTNER AND ASSOCIATES, INC. DBA SEA CON

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-452-9828

Technical Data | NSN 5935-01-452-9828

Characteristic Specifications
III END ITEM IDENTIFICATION SDV MOD1 RECO

Restrictions/Controls & Freight Information | NSN 5935-01-452-9828

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061680 ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 658 unknown
Originating Activity Code TX Defense Supply Center Columbus
Columbus, OH 43218
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5935-01-452-9828

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
