NSN 5935-01-441-1558 M24368/2-106, M243682106, MIL-C-24368/2
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-441-1558 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M24368/2-106, M243682106, MIL-C-24368/2, MILC243682, 5935-01-441-1558, 01-441-1558, 5935014411558, 014411558
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 FEB 1997 | 01-441-1558 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-441-1558
Demand History | NSN 5935-01-441-1558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-441-1558 | 2024-07-207 | 9 | DIBBS |
| 5935-01-441-1558 | 2024-05-134 | 4 | DIBBS |
| 5935-01-441-1558 | 2024-05-123 | 4 | DIBBS |
| 5935-01-441-1558 | 2023-12-341 | 6 | DIBBS |
| 5935-01-441-1558 | 2023-11-330 | 6 | DIBBS |
| 5935-01-441-1558 | 2022-08-213 | 3 | DIBBS |
| 5935-01-441-1558 | 2022-07-202 | 3 | DIBBS |
| 5935-01-441-1558 | 2022-03-81 | 3 | DIBBS |
| 5935-01-441-1558 | 2022-03-80 | 2 | DIBBS |
| 5935-01-441-1558 | 2022-03-80 | 1 | DIBBS |
| 5935-01-441-1558 | 2022-02-59 | 2 | DIBBS |
| 5935-01-441-1558 | 2022-02-46 | 2 | DIBBS |
| 5935-01-441-1558 | 2021-11-319 | 3 | DIBBS |
| 5935-01-441-1558 | 2020-11-313 | 3 | DIBBS |
| 5935-01-441-1558 | 2020-10-294 | 1 | DIBBS |
| 5935-01-441-1558 | 2020-04-121 | 1 | DIBBS |
| 5935-01-441-1558 | 2019-05-147 | 3 | DIBBS |
| 5935-01-441-1558 | 2019-05-122 | 2 | DIBBS |
| 5935-01-441-1558 | 2019-04-111 | 4 | DIBBS |
| 5935-01-441-1558 | 2019-03-77 | 4 | US |
| 5935-01-441-1558 | 2018-11-334 | 1 | DIBBS |
| 5935-01-441-1558 | 2018-07-204 | 3 | DIBBS |
| 5935-01-441-1558 | 2018-07-193 | 3 | DIBBS |
| 5935-01-441-1558 | 2017-04-94 | 1 | DIBBS |
| 5935-01-441-1558 | 2015-05-141 | 1 | DIBBS |
| 5935-01-441-1558 | 2014-11-329 | 1 | DIBBS |
| 5935-01-441-1558 | 2014-11-328 | 1 | DIBBS |
| 5935-01-441-1558 | 2012-03-79 | 2 | DIBBS |
| MILC243682 | 2010-03-74 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-441-1558
Technical Data | NSN 5935-01-441-1558
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 28G STRAIGHT SHAPE, FLANGE MOUNT EXTERNAL COUPLING |
| OVERALL LENGTH | 1.637 INCHES MINIMUM AND 1.657 INCHES MAXIMUM |
| OVERALL HEIGHT | 11.500 INCHES NOMINAL |
| OVERALL WIDTH | 9.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 10.500 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 8.000 INCHES NOMINAL |
| MATING END QUANTITY | 1 |

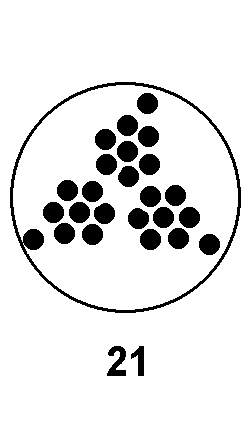

| CONTACT POSITION ARRANGEMENT STYLE | AXAW 21 SINGLE MATING END |
