NSN 5935-01-439-0363 H920151007C, H920151-007C, KA330/254EEV33MH2TH-880
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-439-0363 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: H920151007C, H920151-007C, KA330/254EEV33MH2TH-880, KA330254EEV33MH2TH880, 5935-01-439-0363, 01-439-0363, 5935014390363, 014390363
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 NOV 1996 | 01-439-0363 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-439-0363
Demand History | NSN 5935-01-439-0363
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| H920151-007C | 2024-02-46 | 5 | DIBBS |
| KA330/254EEV33MH2TH-880 | 2024-02-46 | 5 | DIBBS |
| H920151-007C | 2023-05-143 | 1 | DIBBS |
| KA330/254EEV33MH2TH-880 | 2023-05-143 | 1 | DIBBS |
| 5935-01-439-0363 | 2018-12-339 | 2 | DIBBS |
| 5935-01-439-0363 | 2018-02-57 | 6 | DIBBS |
| 5935-01-439-0363 | 2018-02-46 | 6 | DIBBS |
| 5935-01-439-0363 | 2017-10-288 | 6 | DIBBS |
| 5935-01-439-0363 | 2015-07-204 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-439-0363
Technical Data | NSN 5935-01-439-0363
| Characteristic | Specifications |
|---|---|

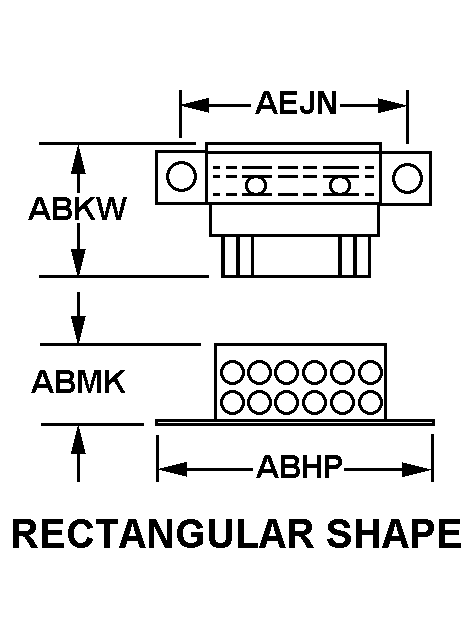

| BODY STYLE | 63G RECTANGULAR SHAPE |
| OVERALL LENGTH | 7.420 INCHES MINIMUM AND 7.460 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.350 INCHES NOMINAL |
| OVERALL WIDTH | 0.554 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 6.900 INCHES NOMINAL |
| MATING END QUANTITY | 1 |

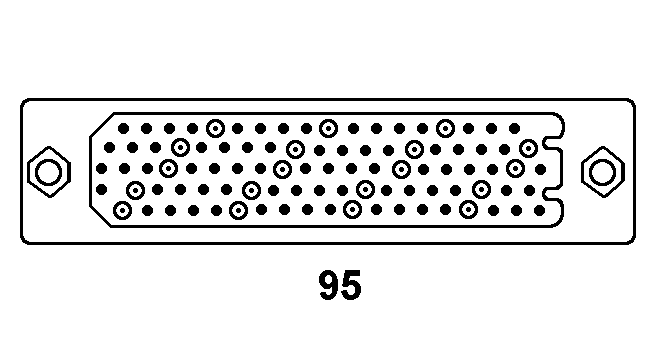

| CONTACT POSITION ARRANGEMENT STYLE | EAAC 95 ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 330 SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | PIN SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | FRONT SINGLE MATING END ALL CONTACT GROUPINGS |
Restrictions/Controls & Freight Information | NSN 5935-01-439-0363
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-439-0363
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
