NSN 5935-01-415-6239 13444, 1728951, 172-8951
Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-01-415-6239 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 13444, 1728951, 172-8951, 39012060, 39-01-2060, 5935-01-415-6239, 01-415-6239, 5935014156239, 014156239
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUN 1995 | 01-415-6239 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-415-6239
Demand History | NSN 5935-01-415-6239
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 39-01-2060 | 2022-07-209 | 4546 | DIBBS |
| 5935-01-415-6239 | 2013-08-241 | 4909 | DIBBS |
| 5935-01-415-6239 | 2013-02-32 | 6528 | DIBBS |
| 5935-01-415-6239 | 2011-02-34 | 834 | DIBBS |
| 5935-01-415-6239 | 2010-10-286 | 625 | DIBBS |
| 5935-01-415-6239 | 2010-01-11 | 625 | DIBBS |
| 5935-01-415-6239 | 2009-06-168 | 625 | DIBBS |
| 5935-01-415-6239 | 2008-05-148 | 653 | DIBBS |
| 5935-01-415-6239 | 2007-04-110 | 500 | DIBBS |
Cross Reference | NSN 5935-01-415-6239
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13444 | 51440 | PARKER-HANNIFIN CORPORATION DBA FILTRATION & SEPARATION |
| 17-3-2611 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| 17-3-2611-1 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| 172-8951 | FA0Q5 | RS COMPONENTS SAS |
| 39-01-2060 | 27264 | MOLEX INCORPORATED DBA USE CAGE CODE 1UX99 FOR |
| 39-01-2060 | FA0Q5 | RS COMPONENTS SAS |
| D510020 | F8951 | STERELA (STE TOULOUSAINE D'ETUDESET DE REALISATIONS EN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-415-6239
Related Products | NSN 5935-01-415-6239
Technical Data | NSN 5935-01-415-6239
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 52A RECTANGULAR SHAPE W/TABS |
| OVERALL LENGTH | 0.543 INCHES NOMINAL |
| OVERALL HEIGHT | 0.772 INCHES NOMINAL |
| BODY HEIGHT | 0.772 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | TAB SLOT |
| MATING END QUANTITY | 1 |

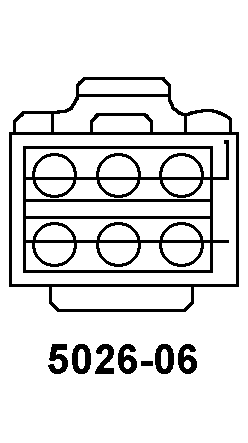

| CONTACT POSITION ARRANGEMENT STYLE | AGFM 5026-06 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 6 ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
Restrictions/Controls & Freight Information | NSN 5935-01-415-6239
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-415-6239
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
