NSN 5935-01-415-6209 D38999/46FJ19AB, D3899946FJ19AB, DOD-C-38999/46
Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-01-415-6209 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: D38999/46FJ19AB, D3899946FJ19AB, DOD-C-38999/46, DODC3899946, 5935-01-415-6209, 01-415-6209, 5935014156209, 014156209
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUN 1995 | 01-415-6209 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-415-6209
Demand History | NSN 5935-01-415-6209
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DODC3899946 | 2018-08-215 | 4 | TW |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-415-6209
Related Products | NSN 5935-01-415-6209
Technical Data | NSN 5935-01-415-6209
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 41.1 MILLIMETERS MAXIMUM |
| OVERALL DIAMETER | 49.7 MILLIMETERS MAXIMUM |
| CONNECTOR LOCKING METHOD | DETENT |
| THREADED DEVICE TYPE | BACK SHELL |
| THREAD SERIES DESIGNATOR | ISO M |
| NOMINAL THREAD SIZE | 37.0 MILLIMETERS |
| THREAD TOLERANCE CLASS | 6G EXTERNAL |
| THREAD PITCH IN MILLIMETERS | 1.00 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-26074, CL 3 OR 4, GRADE B MIL SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 AND 90.0 AND 270.0 |
| MATING END QUANTITY | 1 |

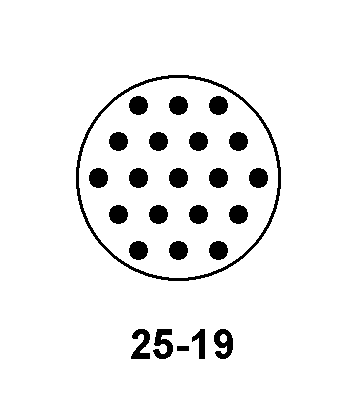

| CONTACT POSITION ARRANGEMENT STYLE | AVCA 25-19 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC EPOXY SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 19 ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND CORROSION RESISTANT AND DUST RESISTANT AND FUEL RESISTANT AND FUNGUS RESISTANT AND HUMIDITY RESISTANT AND OIL RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-38999 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-DOD-C-38999/46 GOVERNMENT SPECIFICATION |
| III OPERATING TEMP RATING | -65.0 DEG CELSIUS MINIMUM AND 200.0 DEG CELSIUS MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | DOD-C-38999/46 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | D38999/46FJ19AB |
Restrictions/Controls & Freight Information | NSN 5935-01-415-6209
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-415-6209
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
