NSN 5935-01-411-6917 D38999/24WF67SN, D3899924WF67SN, 01-411-6917
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-411-6917 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: D38999/24WF67SN, D3899924WF67SN, 5935-01-411-6917, 01-411-6917, 5935014116917, 014116917
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 MAR 1995 | 01-411-6917 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-411-6917
Cross Reference | NSN 5935-01-411-6917
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D38999/24WF67SN | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-411-6917
Technical Data | NSN 5935-01-411-6917
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 21G STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 32.5 MILLIMETERS MAXIMUM |
| OVERALL DIAMETER | 49.2 MILLIMETERS NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 22.6 MILLIMETERS MAXIMUM |
| MOUNTING FACILITY THICKNESS | 14.3 MILLIMETERS NOMINAL |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND W/DOUBLE FLAT |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY AND MOUNTING BUSHING |
| THREAD SERIES DESIGNATOR | ISO M AND ACME AND ISO M |
| NOMINAL THREAD SIZE | 28.0 MILLIMETERS AND 1.250 INCHES AND 35.0 MILLIMETERS |
| THREAD CLASS | 2A |
| THREAD TOLERANCE CLASS | 6G EXTERNAL AND 6G EXTERNAL |
| THREAD QUANTITY PER INCH | 10 |
| THREAD PITCH IN MILLIMETERS | 1.00 AND 1.00 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND AND RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

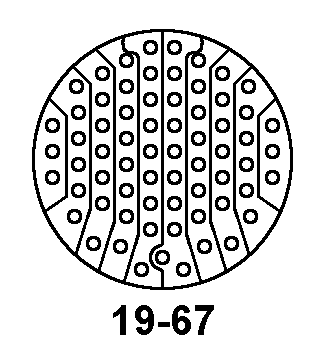

| CONTACT POSITION ARRANGEMENT STYLE | CWAB 19-67 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 67 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF |
| TEST DATA DOCUMENT | 81349-DOD-C-38999 SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.032 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | D38999/24WF67SN |
Restrictions/Controls & Freight Information | NSN 5935-01-411-6917
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
