NSN 5935-01-411-0326 DCMMY21WA4S, 1422330010, 142233-0010
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-411-0326 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DCMMY21WA4S, 1422330010, 142233-0010, 5935-01-411-0326, 01-411-0326, 5935014110326, 014110326
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 MAR 1995 | 01-411-0326 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-411-0326
Demand History | NSN 5935-01-411-0326
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-411-0326 | 2015-07-211 | 56 | DIBBS |
| 5935-01-411-0326 | 2011-04-118 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-411-0326
Technical Data | NSN 5935-01-411-0326
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16G STRAIGHT SHAPE |
| OVERALL LENGTH | 2.714 INCHES MINIMUM AND 2.744 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.623 INCHES MINIMUM AND 0.643 INCHES MAXIMUM |
| OVERALL WIDTH | 0.479 INCHES MINIMUM AND 0.509 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.495 INCHES MINIMUM AND 2.505 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.086 INCHES MINIMUM AND 0.091 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | FRICTION |
| MATING END QUANTITY | 1 |

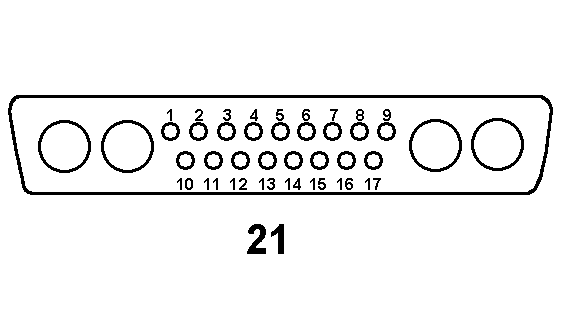

| CONTACT POSITION ARRANGEMENT STYLE | AXAJ 21 SINGLE MATING END |
